Pretension of Lower Roll Drive Belt

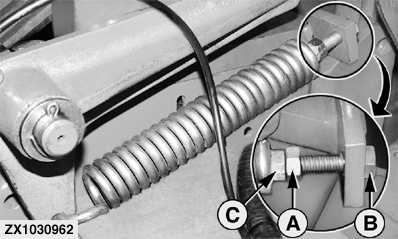

Loosen lock nut (A).

Adjust a coil distance of 1 mm (0.04 in.) by means of screw (B). While doing this fix spring core (C) with a second wrench.

Revolve rolls by hand and check adjustment afterwards.

Tighten lock nut (A).
