Replacing Drive Belts of Lower Roll

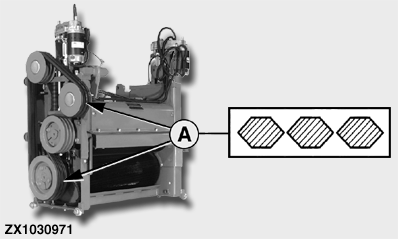

IMPORTANT: Replace drive belts (A) as complete set only.

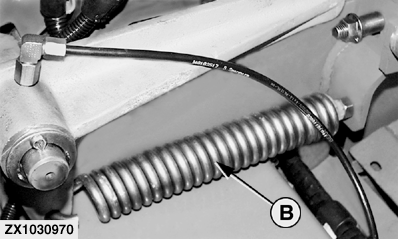

Remove kernel processor, relieve spring (B) and replace drive belts (A).

To adjust spring (B) see "Pretension of Lower Roll Drive Belt" in this Section.

ZX1030971
ZX1030970

OUZXMAY,00005B5 -19-26SEP02-1/1
