Dimensions

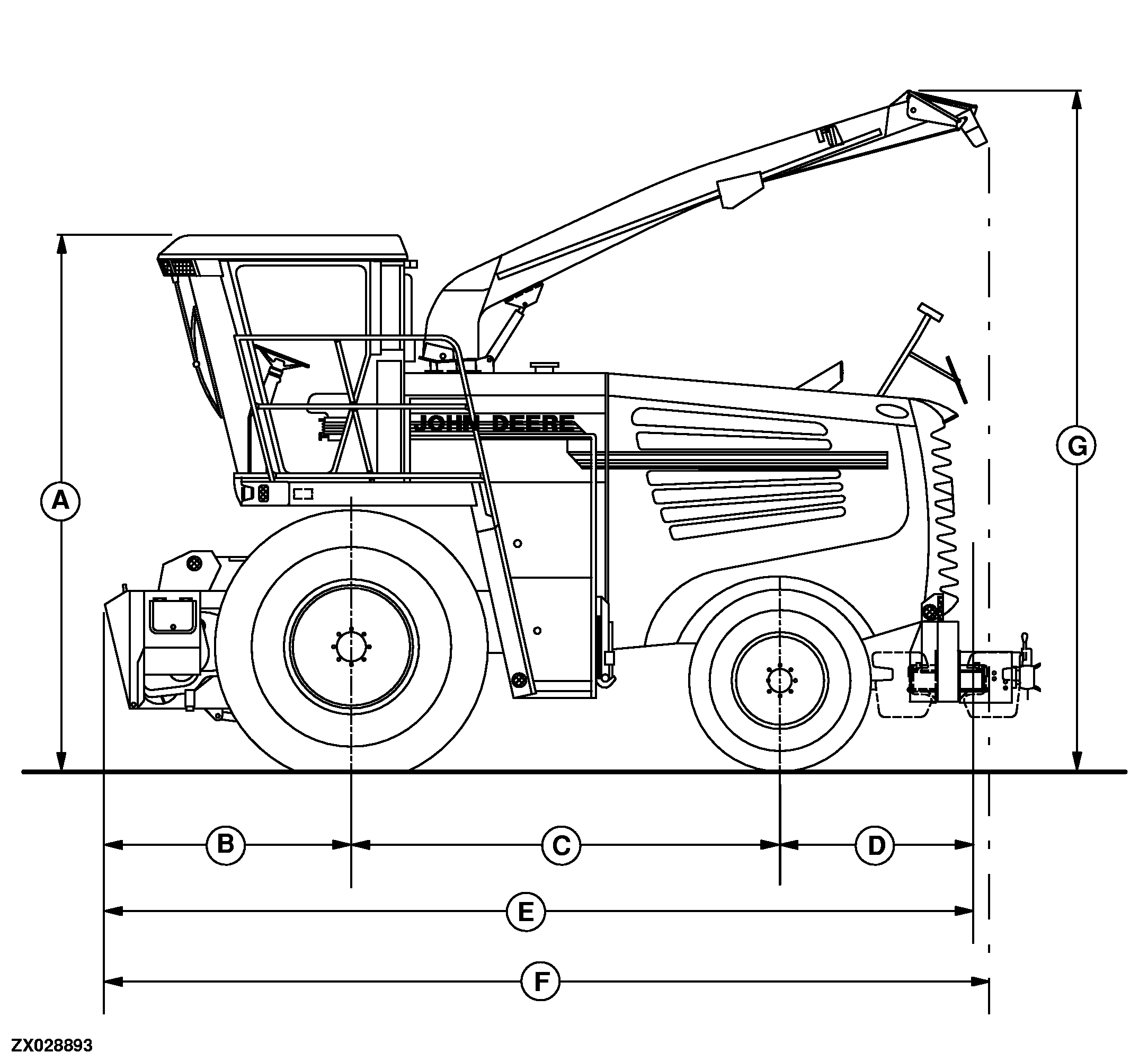

ZX028893


A-3.60-3.66 m (11.81-12.01 ft)1
B-1.61 m (5.28 ft)
C-2.95 m (9.68 ft) (without rear wheel drive), 2.93 m (9.61 ft) (with rear wheel drive)


D-1.39 m (4.56 ft) (without rear wheel drive), 1.41 m (4.63 ft) (with rear wheel drive)


E-5.95 m (19.52 ft)
F-6.56 m (21.52 ft)


G-5.20 m (17.06 ft) max.
H-0.26 m (0.85 ft)

1 This dimension depends on tire size.

OUZXMAY,00005C6 -19-17OCT02-1/5

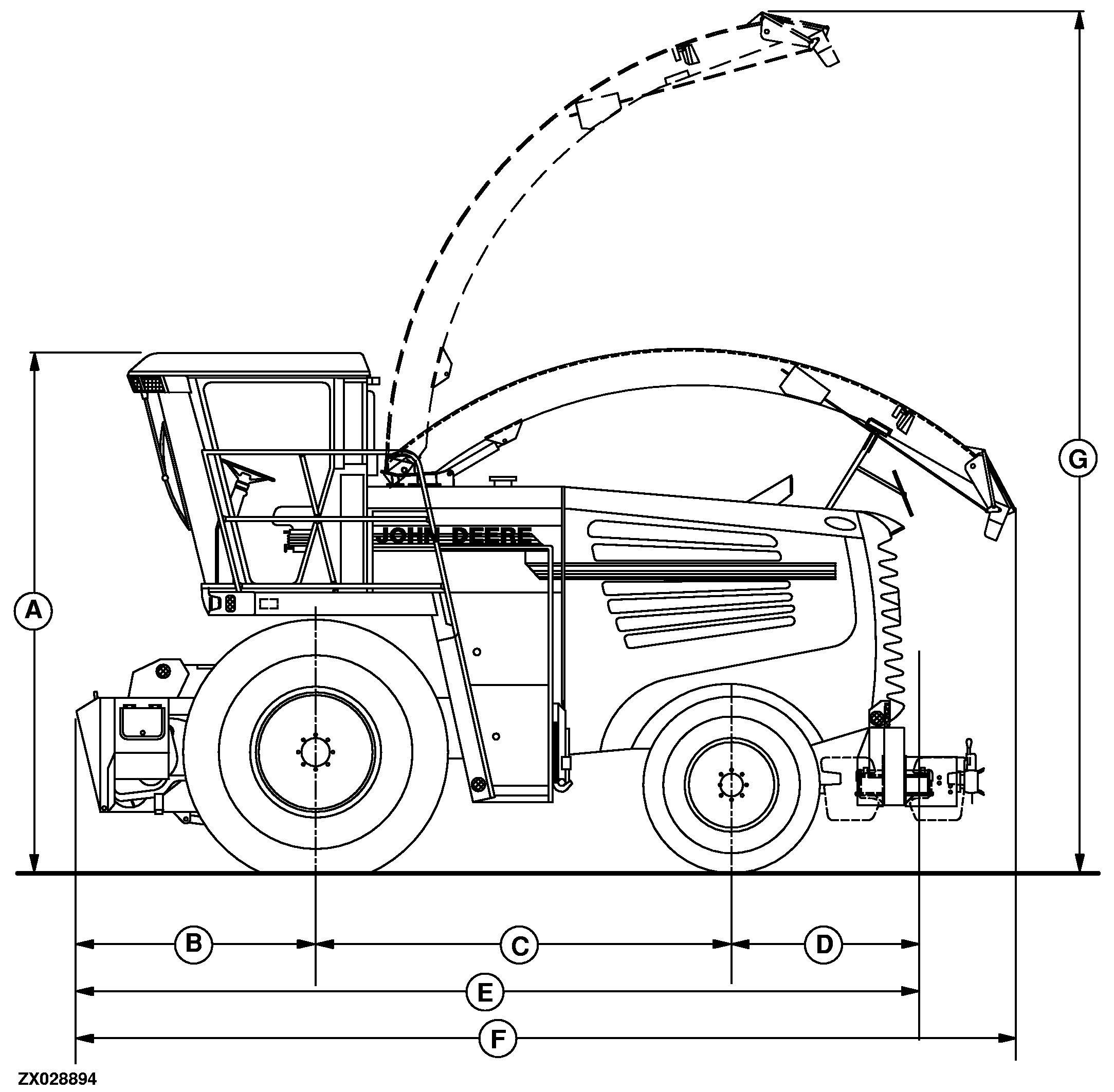

ZX028894


A-3.60-3.66 m (11.81-12.01 ft)1
B-1.61 m (5.28 ft)
C-2.95 m (9.68 ft) (without rear wheel drive); 2.93 m (9.61 ft) (with rear wheel drive)


D-1.39 m (4.56 ft) (without rear wheel drive); 1.41 m (4.63 ft) (with rear wheel drive)


E-5.95 m (19.52 ft)
F-6.56 m (21.52 ft)


G-5.20 m (17.06 ft) max.

1 This dimension depends on tire size.

OUZXMAY,00005C6 -19-17OCT02-2/5

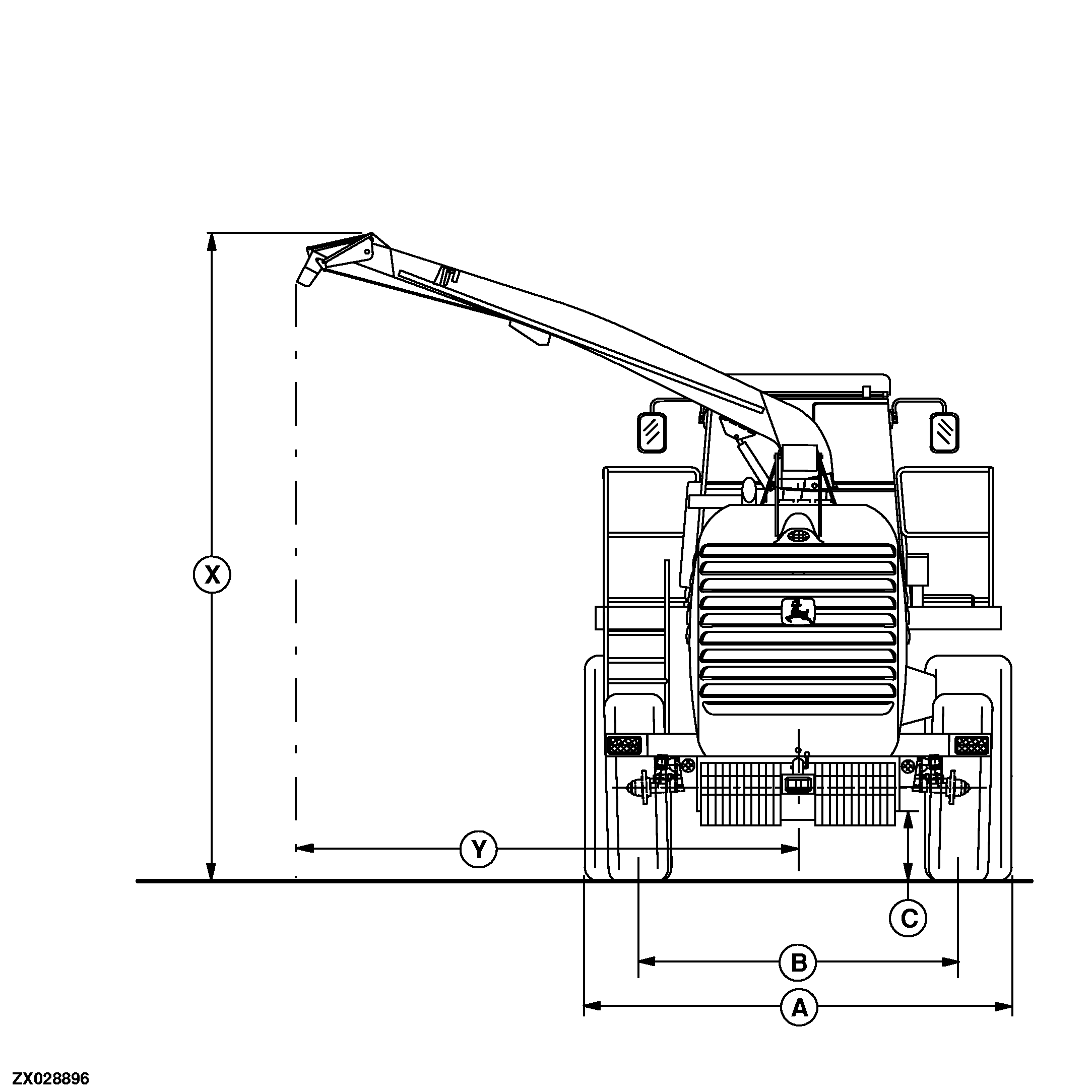

ZX028896


A-2.92-3.34 m1 (9.58-10.96 ft)


B-2.02-2.41 m1, 2 (6.63-7.91 ft)
C-0.46 m (1.51 ft) min.


Y-3.34 m (10.96 ft)


X-3.48 m (11.42 ft)

1 These dimensions depend on tire size.

2 This dimension applies to adjustable rear axle when no holes are visible on each side.

OUZXMAY,00005C6 -19-17OCT02-3/5

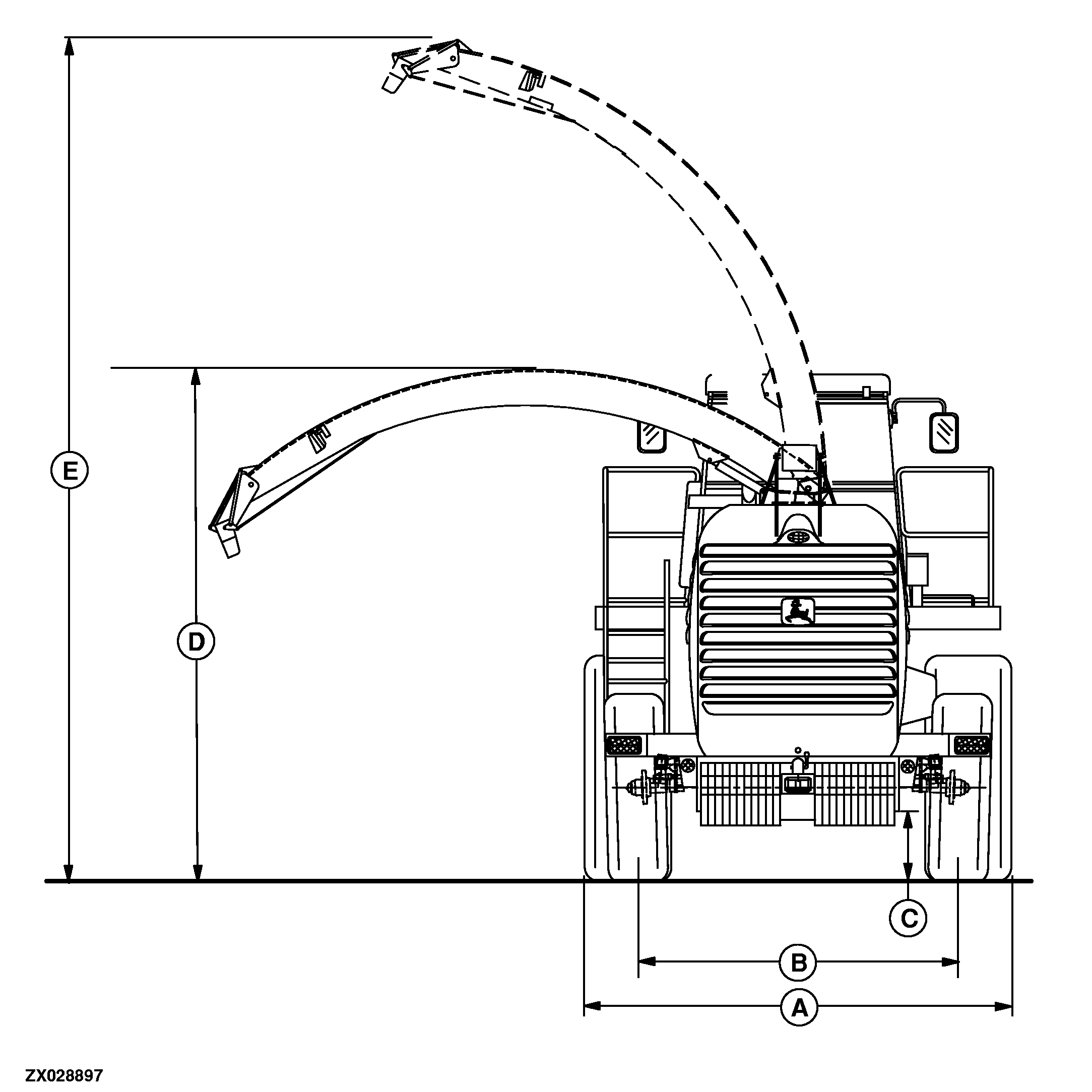

ZX028897


A-2.80-3.34 m1 (9.19-10.96 ft)
B-2.02-2.49 m1, 2 (6.63-8.17 ft)


C-0.46 m (1.51 ft) min.
X1-4.70 m (15.42 ft)


X2-2.20 m (7.22 ft)
Y1-3.78 m (12.40 ft)


Y2-4.34 m (14.24 ft)
X3-6.00 m (19.69 ft)

1 This dimension depends on tire size.

2 This dimension applies to adjustable rear axle when no holes are visible on each side.

OUZXMAY,00005C6 -19-17OCT02-4/5

With spout working height X1=4.70 m (15.42 ft), dimension from harvester center to spout end is Y1=3.78 m (12.40 ft).

With spout working height X2=2.20 m (7.22 ft), dimension from harvester center to spout end is Y2=4.34 m (14.24 ft). X3=max. height.

OUZXMAY,00005C6 -19-17OCT02-5/5
