Transport Information

CAUTION: To avoid contact with electrical cables and electrical shock, no portion of the machine should exceed 4 m (13 ft).

CAUTION: Check local governmental regulations regarding driving or towing equipment on public roads.

IMPORTANT: If transporting harvester on a low-bed truck, cover exhaust to prevent turbocharger from rotating.

The harvester can be transported on a low-bed truck or by towing.

During towing, place the gearshift lever in neutral and disengage rear wheel drive.

Do not exceed maximum permissible speed.

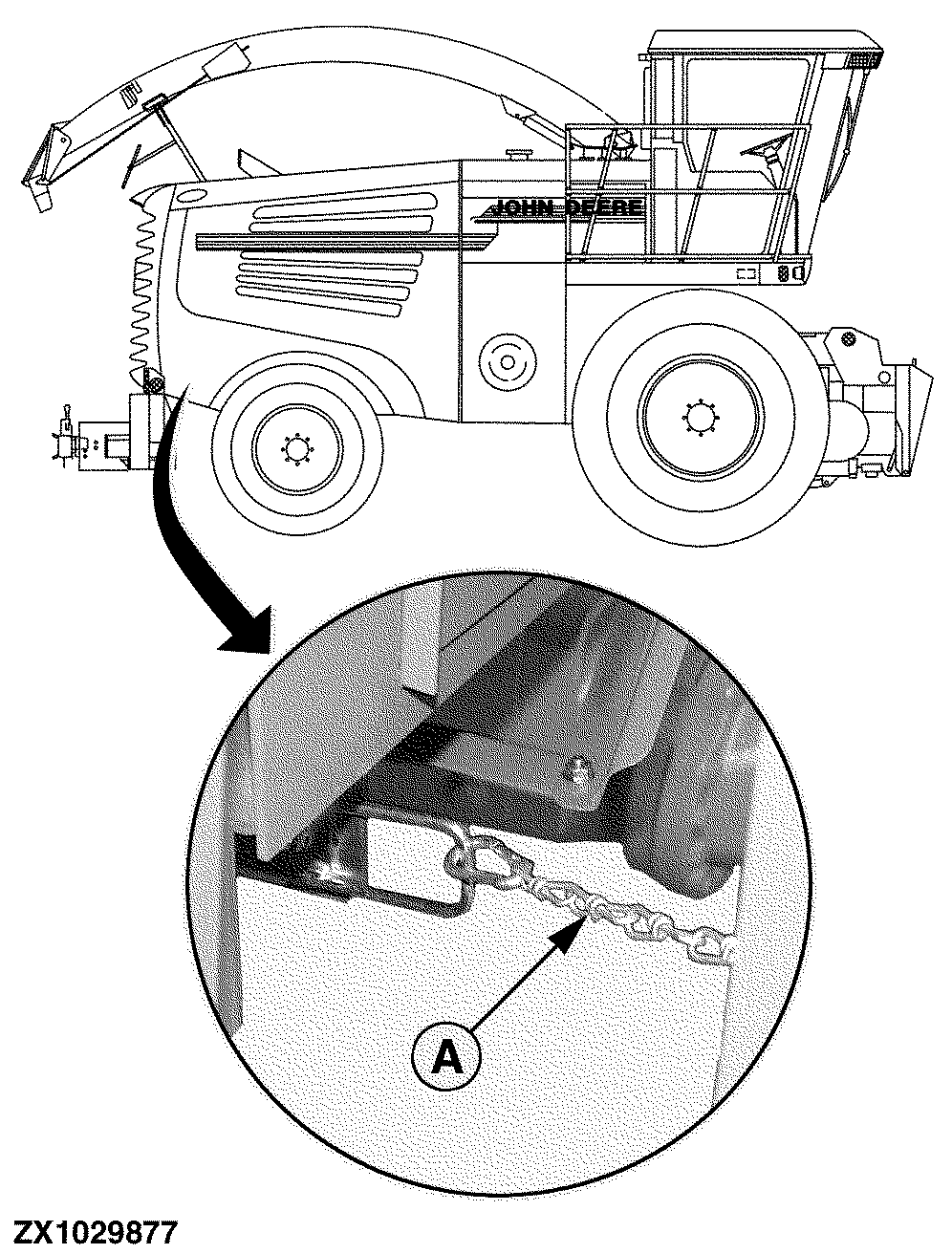

Use safety chain (A) to secure side covers (both sides) during transport.

OUZXMAY,00005C7 -19-18OCT02-1/1
