Removing Stationary Knife

Remove harvesting unit (see Section "Attaching and Detaching Harvesting Units").

Open feed roll housing (see Section "Feeding System").

Disconnect knock sensors on right hand side.

On both sides:

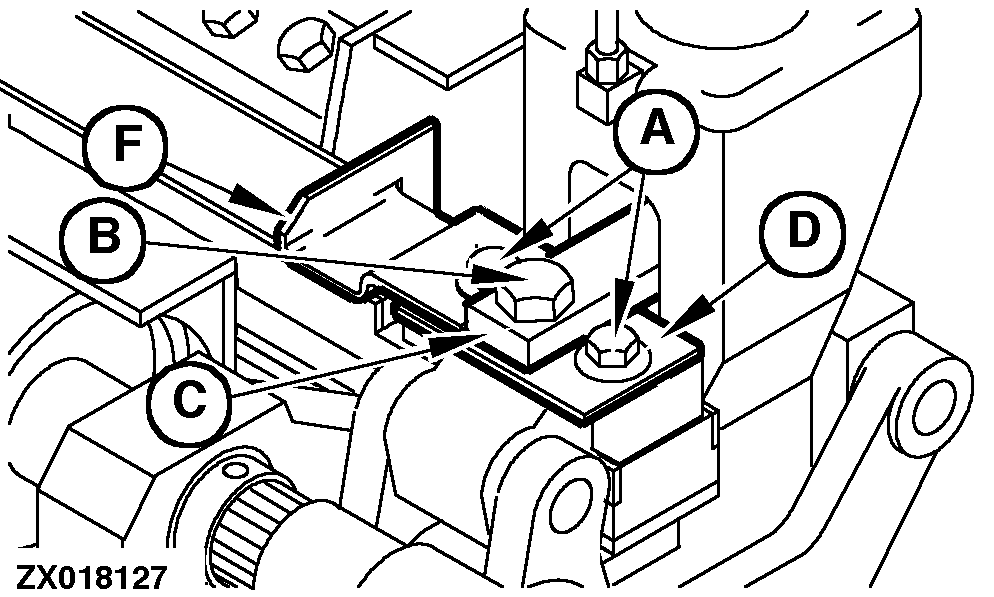

1. Turn out screws (A) and (B). Remove cover (F) together with inner screw (A).

2. Remove clamp bar (C) and shim (D).

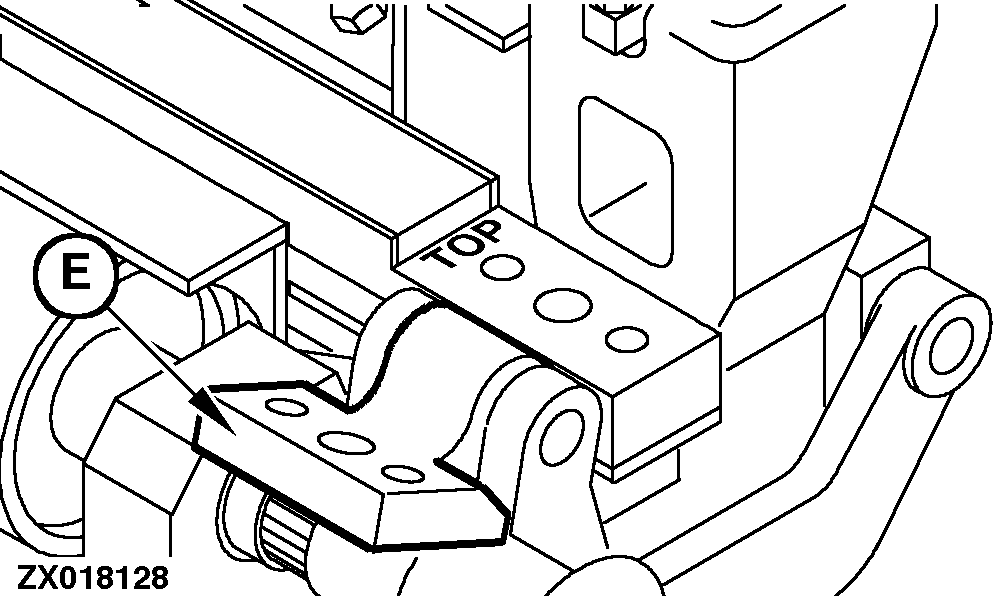

3. Swing hold-down bar (E) forward.

Remove stationary knife and knife bed.


A-Screws (4 used)
B-Screws (2 used)
C-Clamp bar
D-Shim
E-Hold-down bar
F-Cover
