Use of Transmission and Hydraulic Oil

In Lift and Steering Hydraulics

Capacity:

90 L (23.8 U.S. gal)

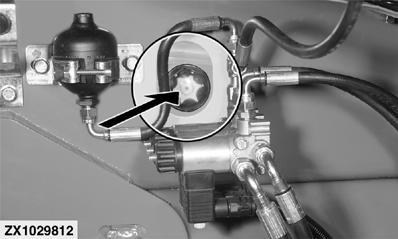

Oil level in reservoir:

up to upper sight glass 54 L (14.3 U.S. gal)

ZX1029812

Oil level up to upper sight glass

OUZXMAY,00005DA -19-19OCT02-1/2

In Length-of-Cut Transmission (IVLOC)

Capacity: 19 L (5.01 U.S. gal)

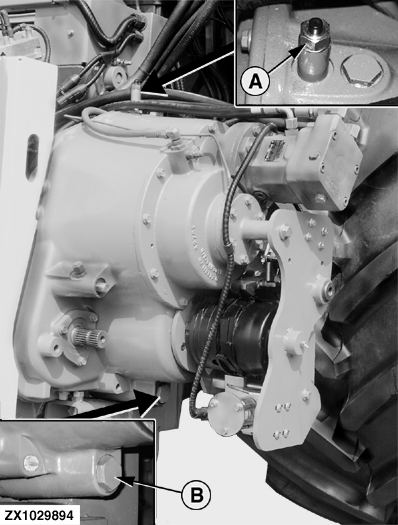

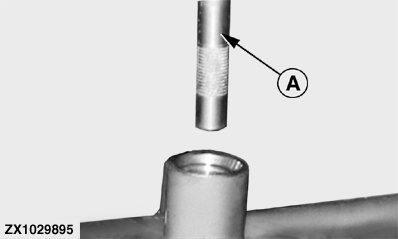

A-Dipstick

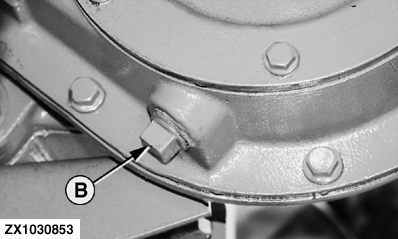

B-Drain Plug

ZX1029895
ZX1029894
ZX1030853
