Greasing Points Not Lubricated Centrally

On forage harvesters with central lubrication, the greasing points listed below must be lubricated with a grease gun, as they are moving or rotating points, or points that need to be greased because of the equipment fit.

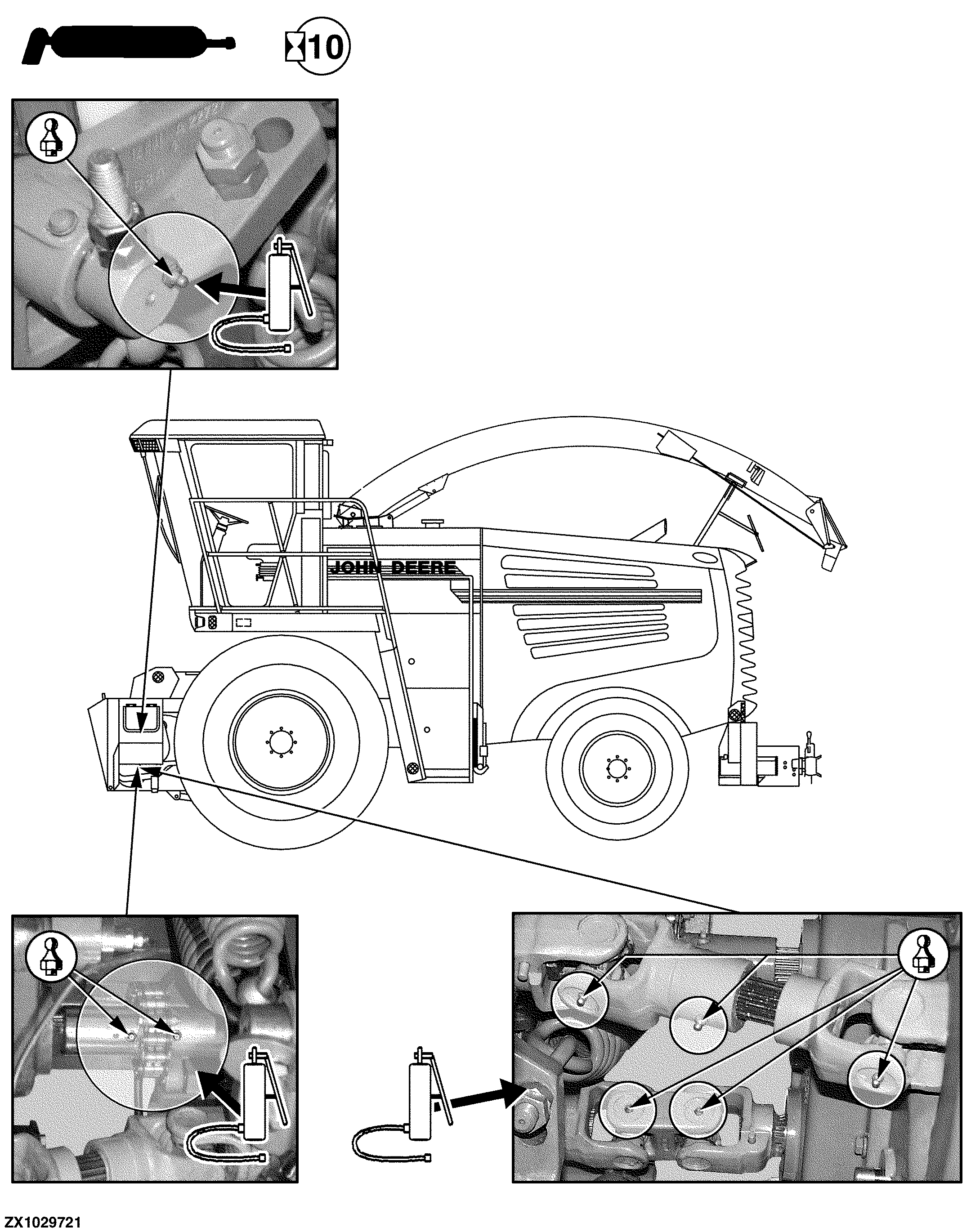

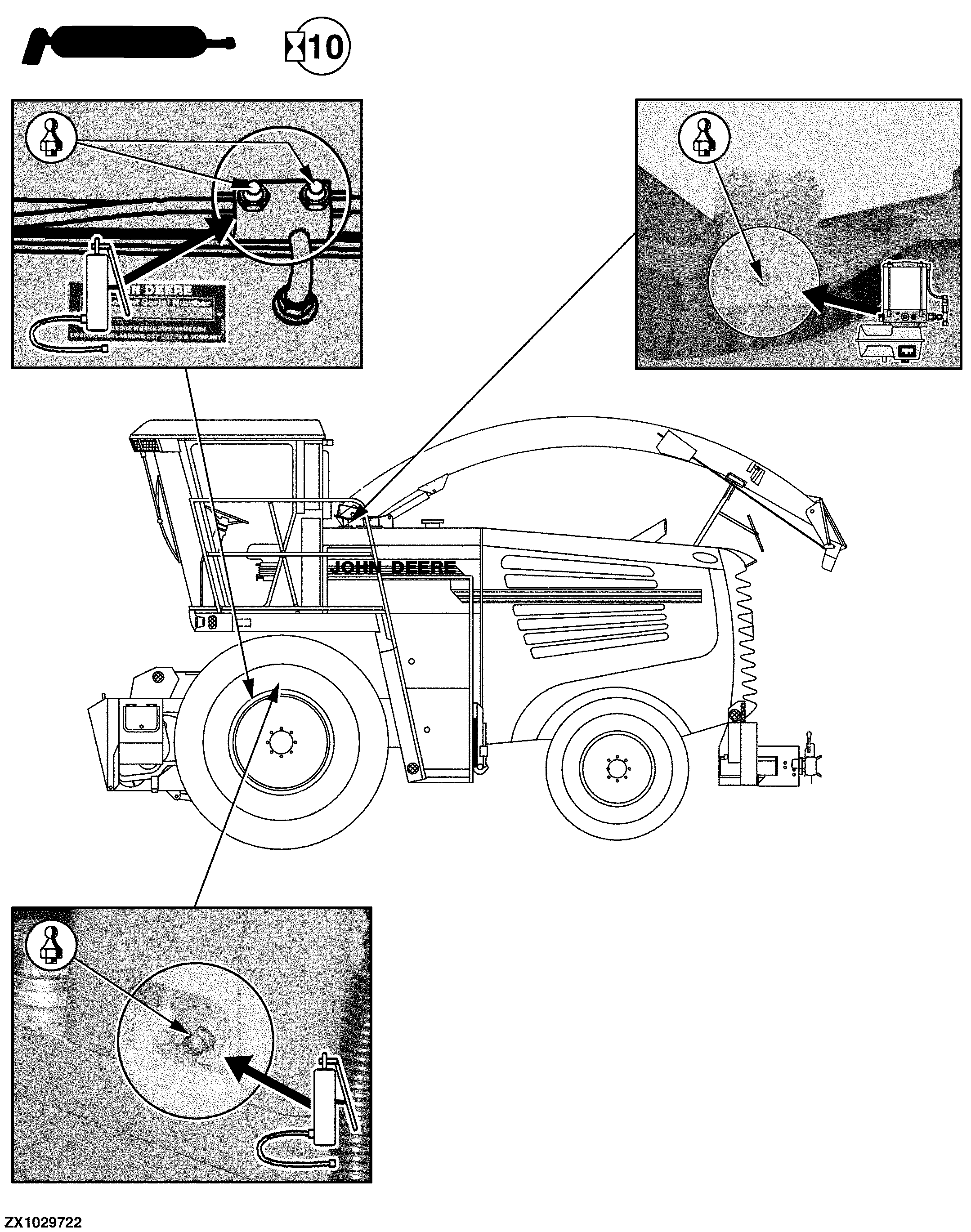

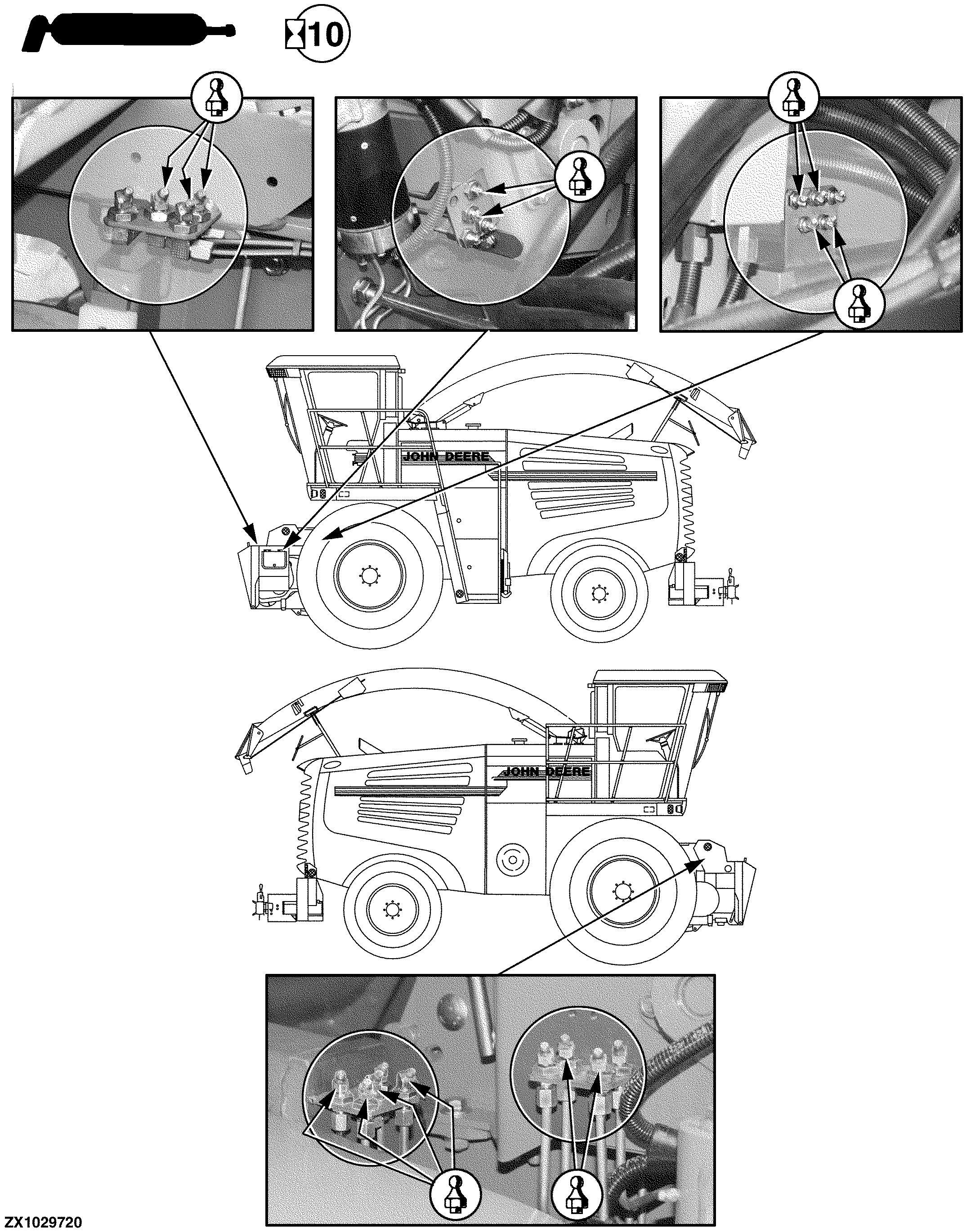

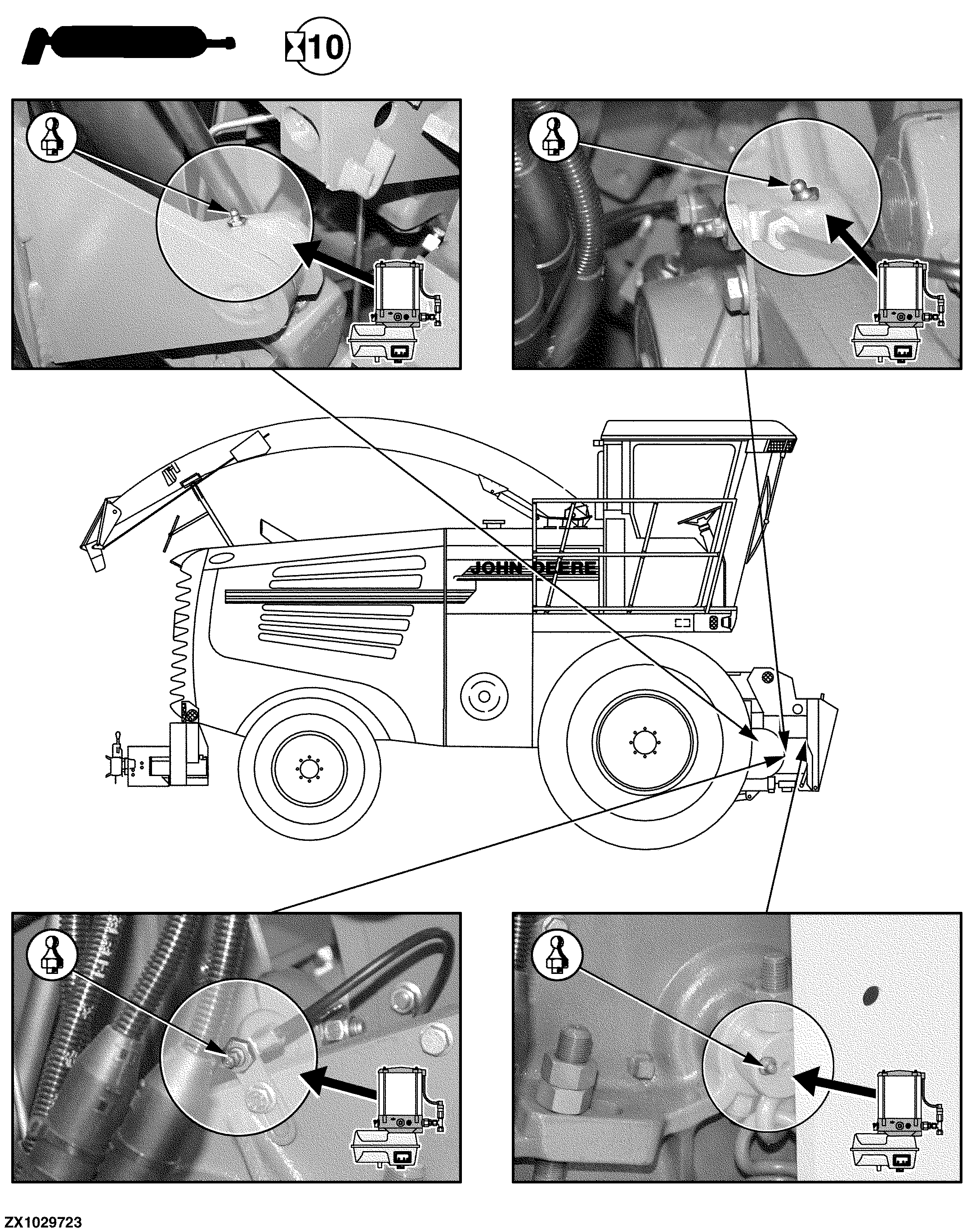

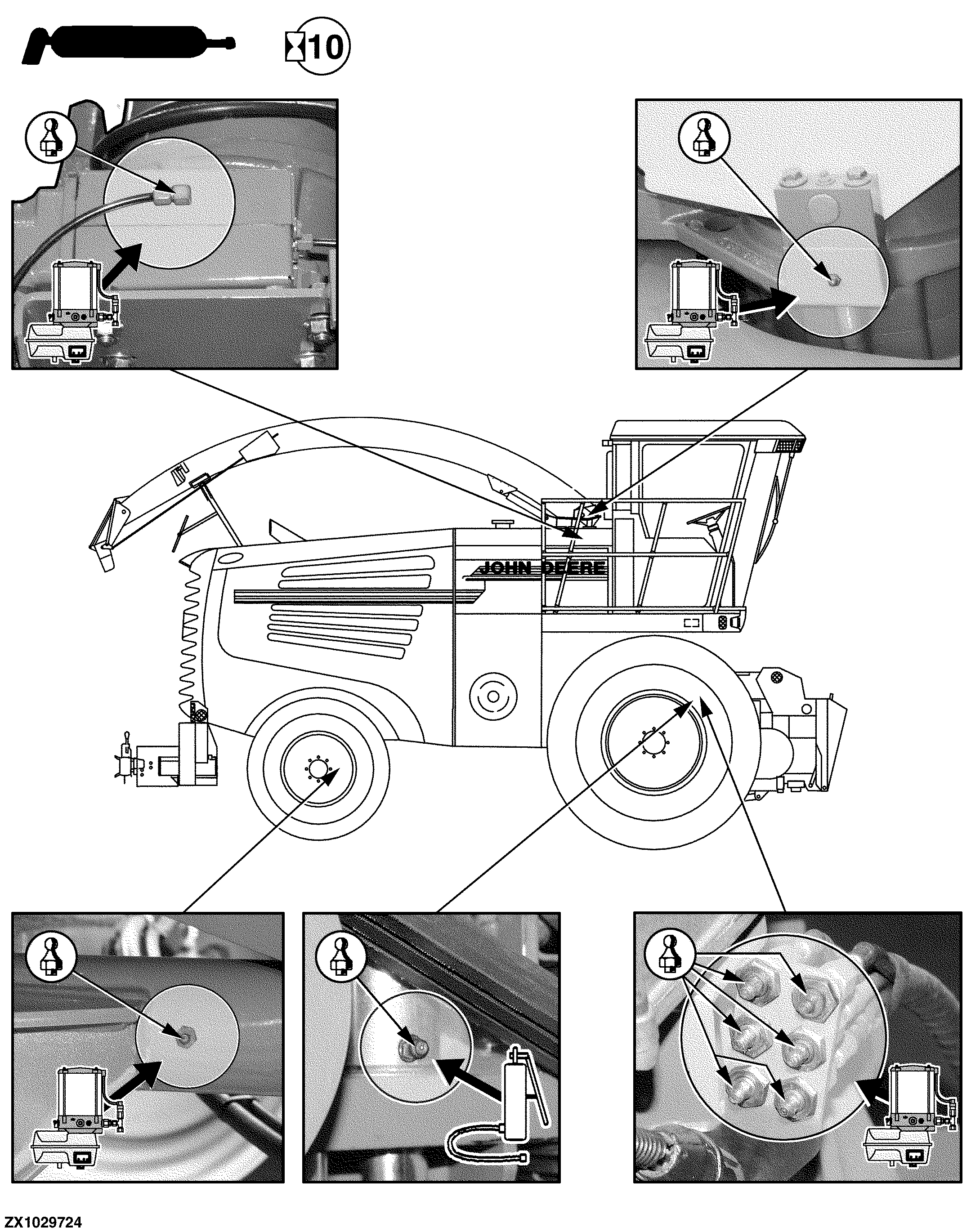

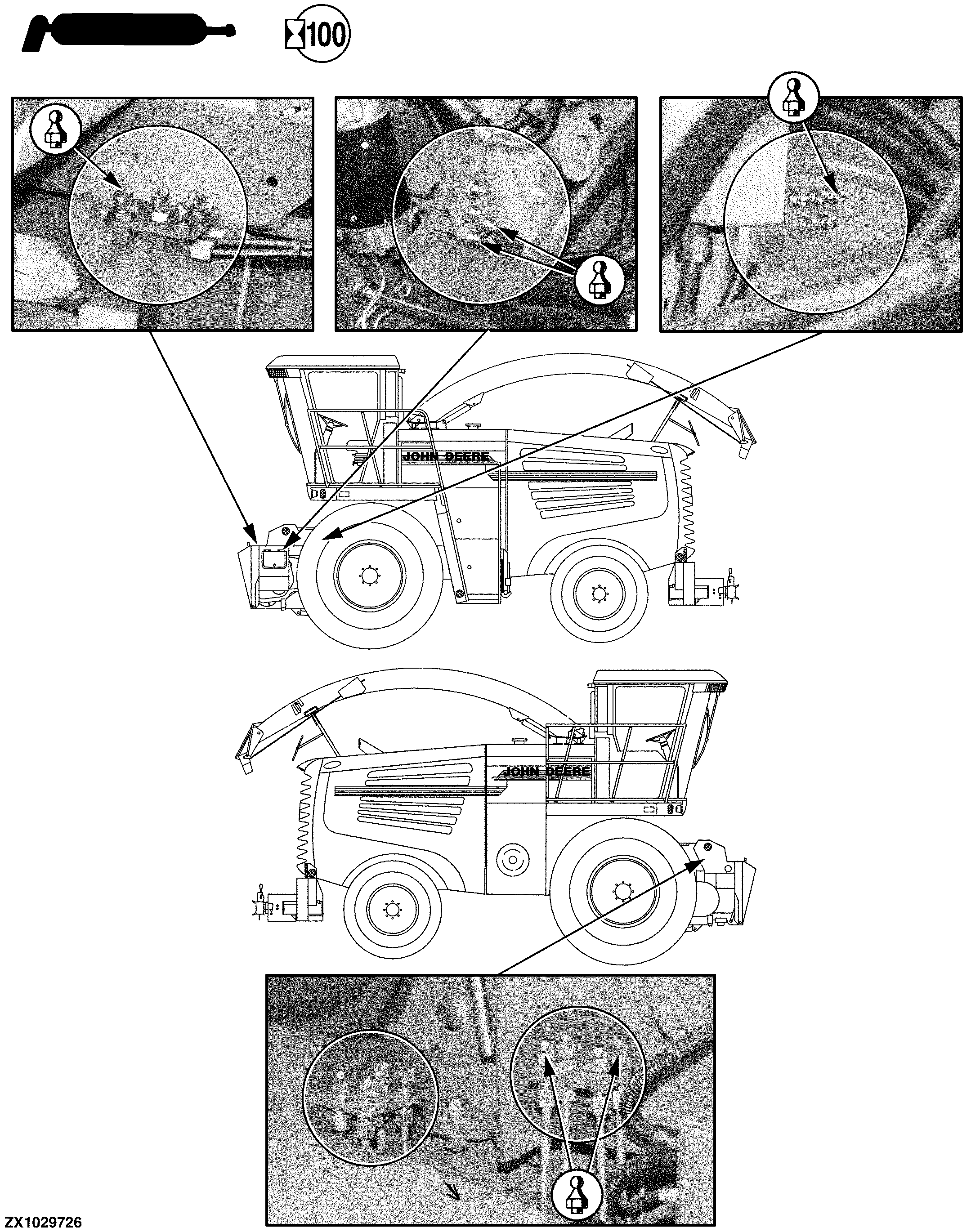

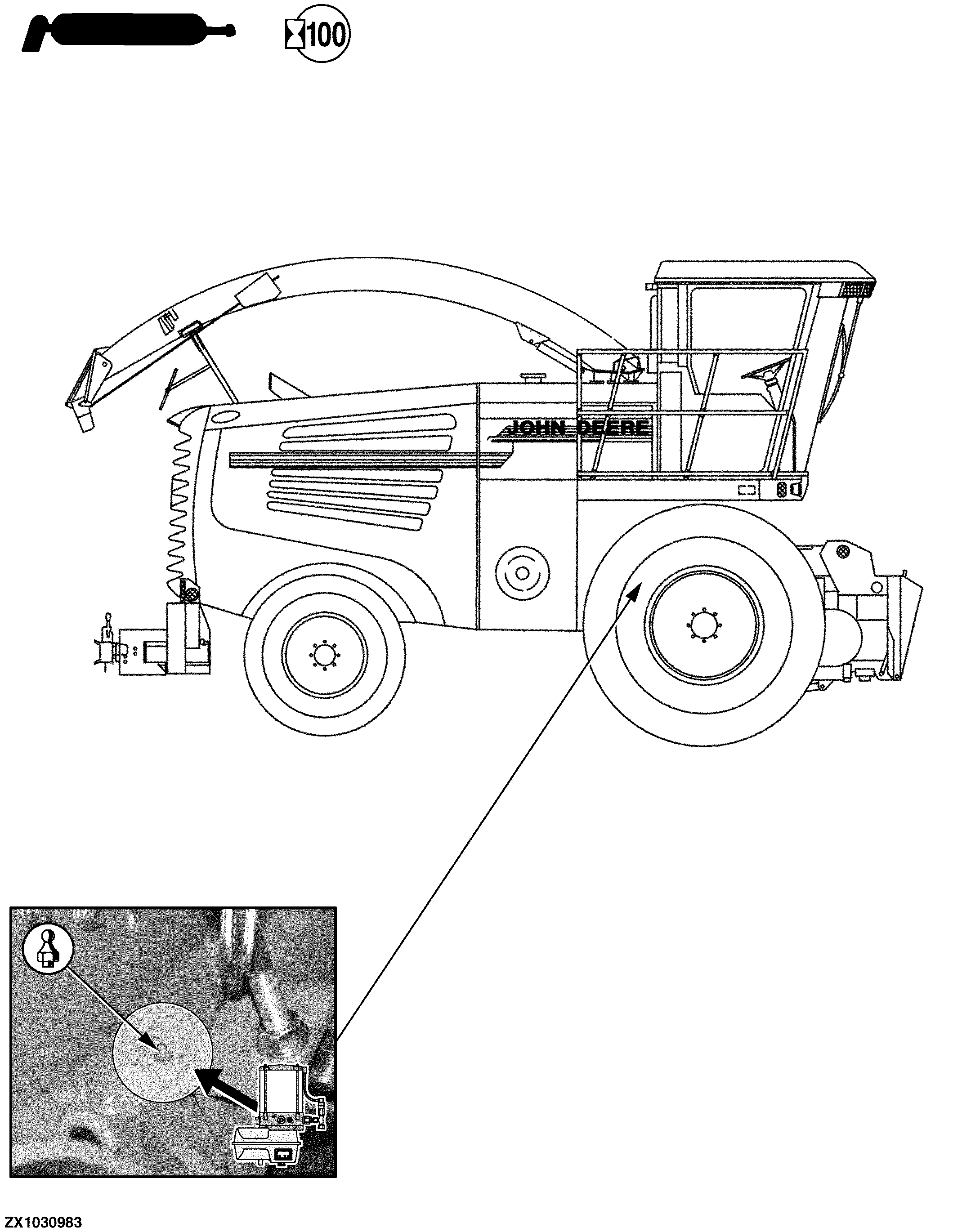

    10-Hour Interval

  • 2 points at u.j. shaft of front lower feed roll
  • 3 points at u.j. shaft of front upper feed roll
  • 2 points at drive shaft of rear lower roll (smooth roll)
  • 2 points at spindles for adjusting kernel processor roll clearance (if equipped)
  • 2 points on power chute (if equipped)

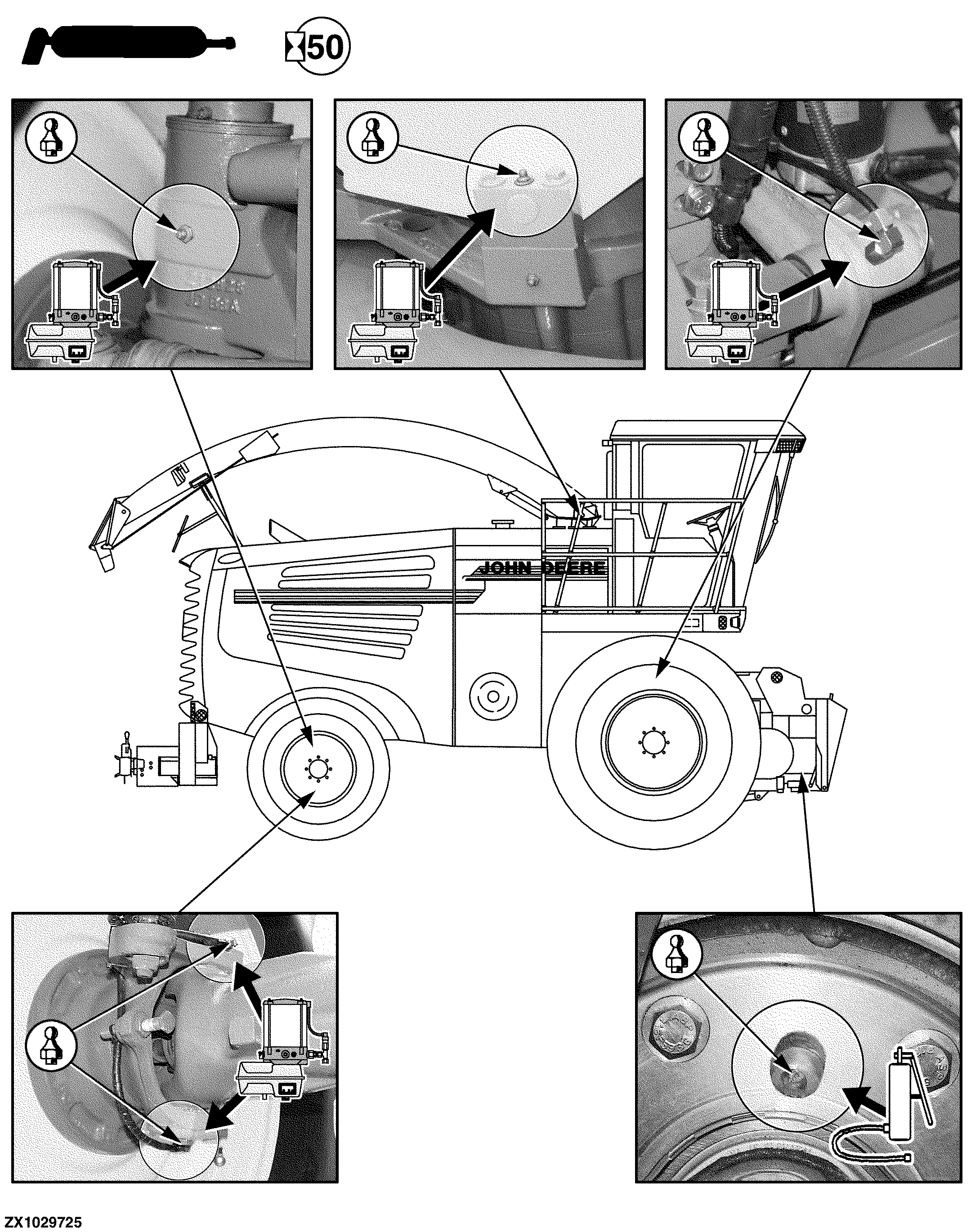

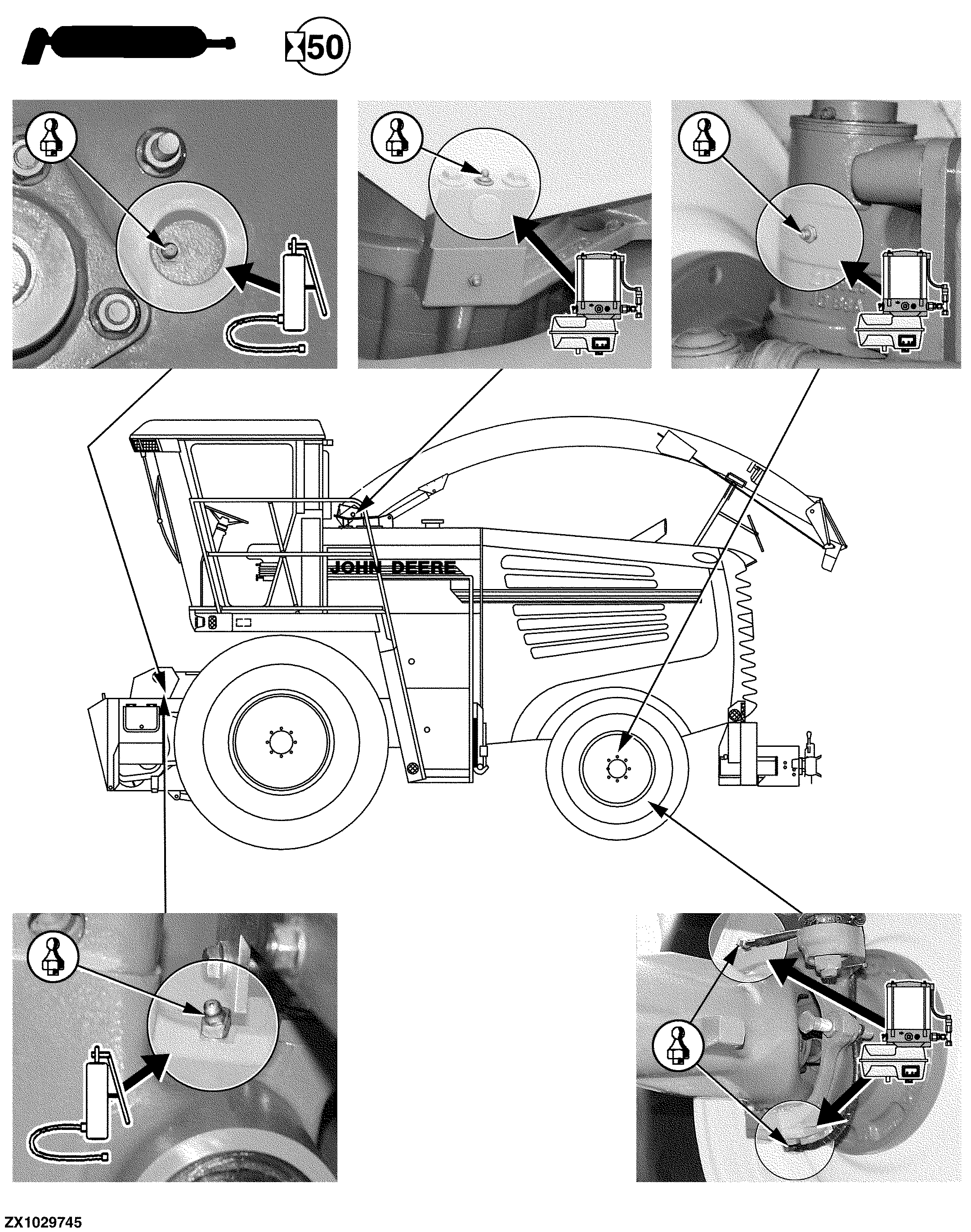

    50-Hour Interval

  • 1 point on sharpening stone guide rod
  • 1 point on r.h. end of front lower feed roll

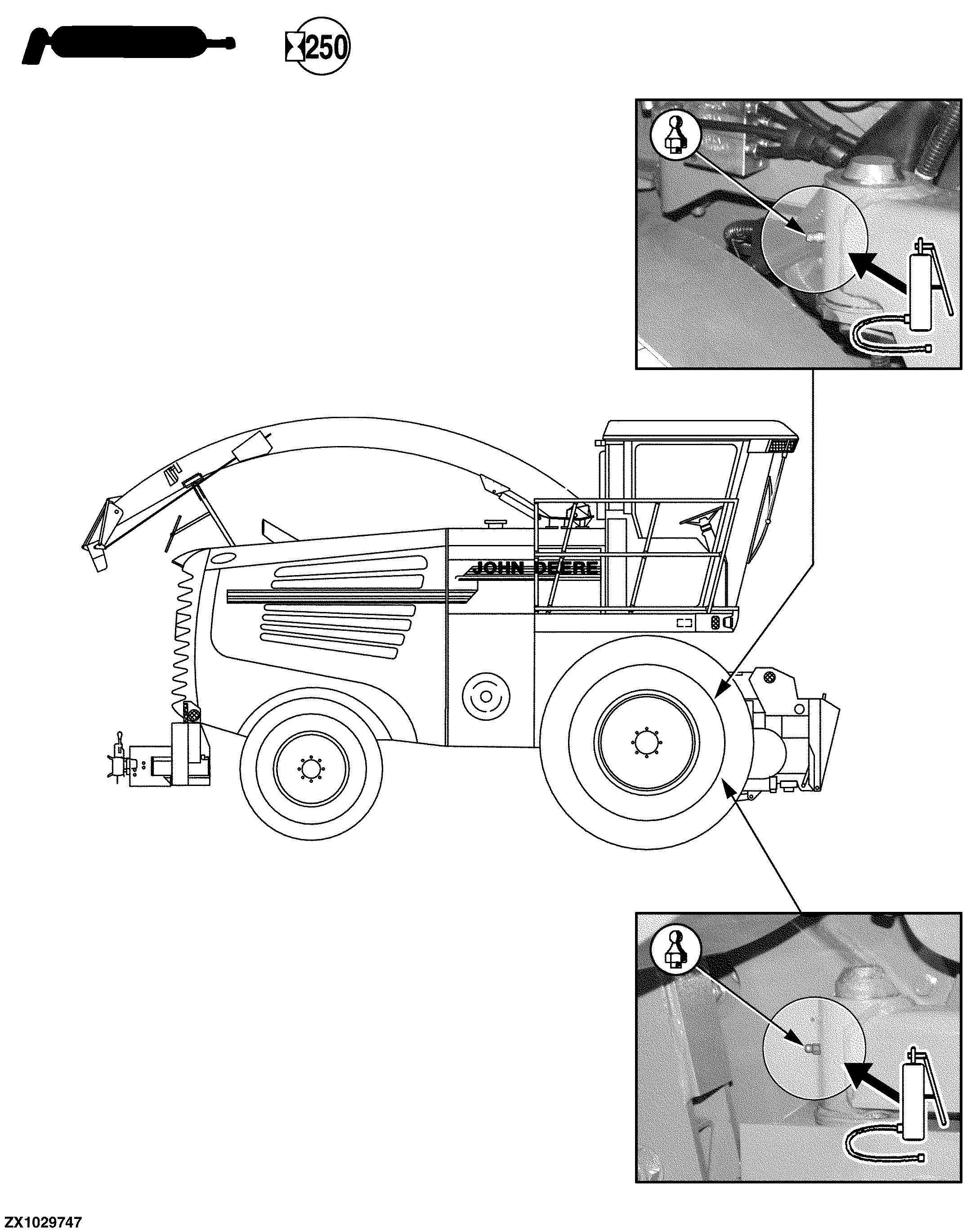

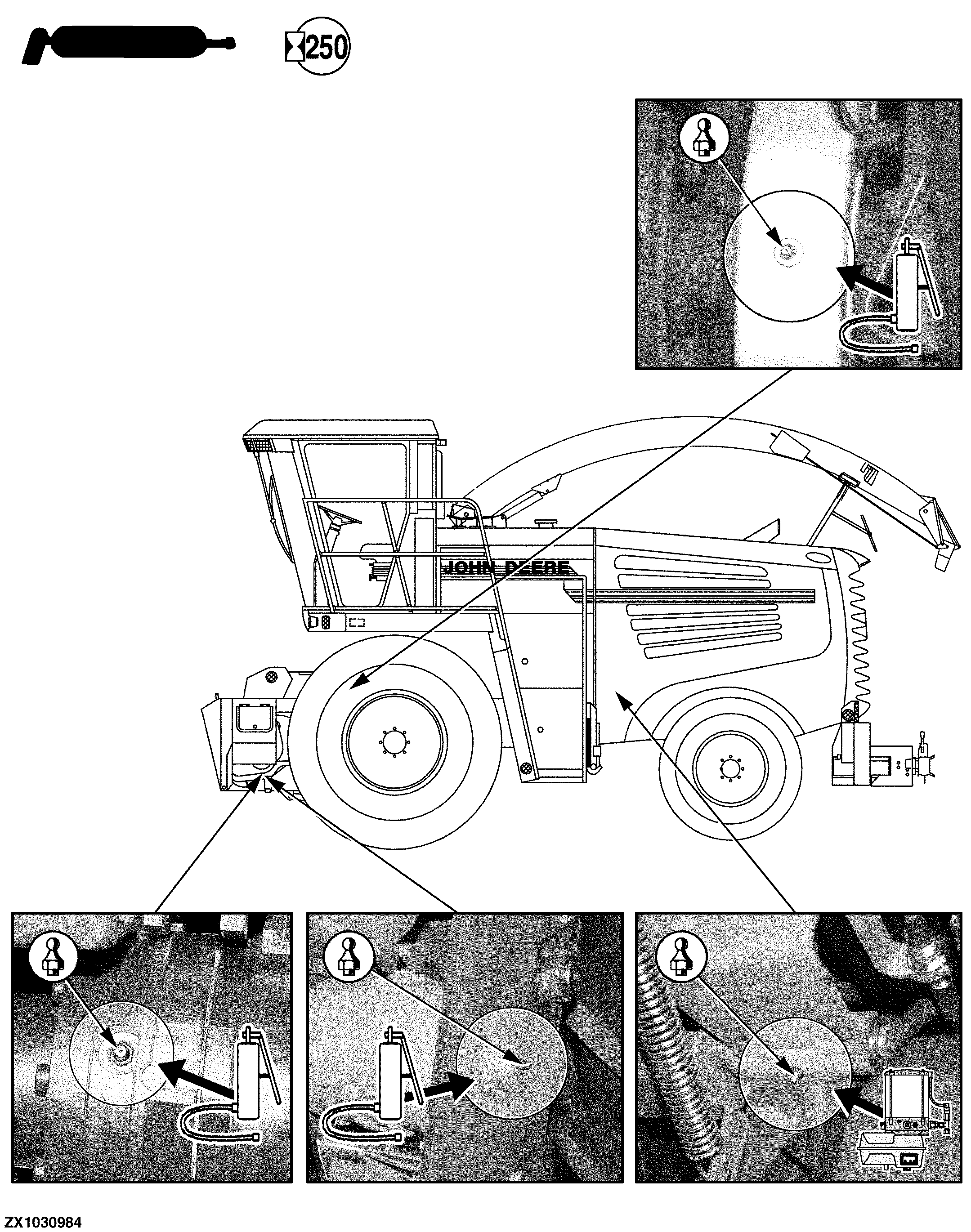

    250-Hour Interval

  • 2 points, attaching points of feed roll housing
  • 1 point on trailer hitch (if equipped)

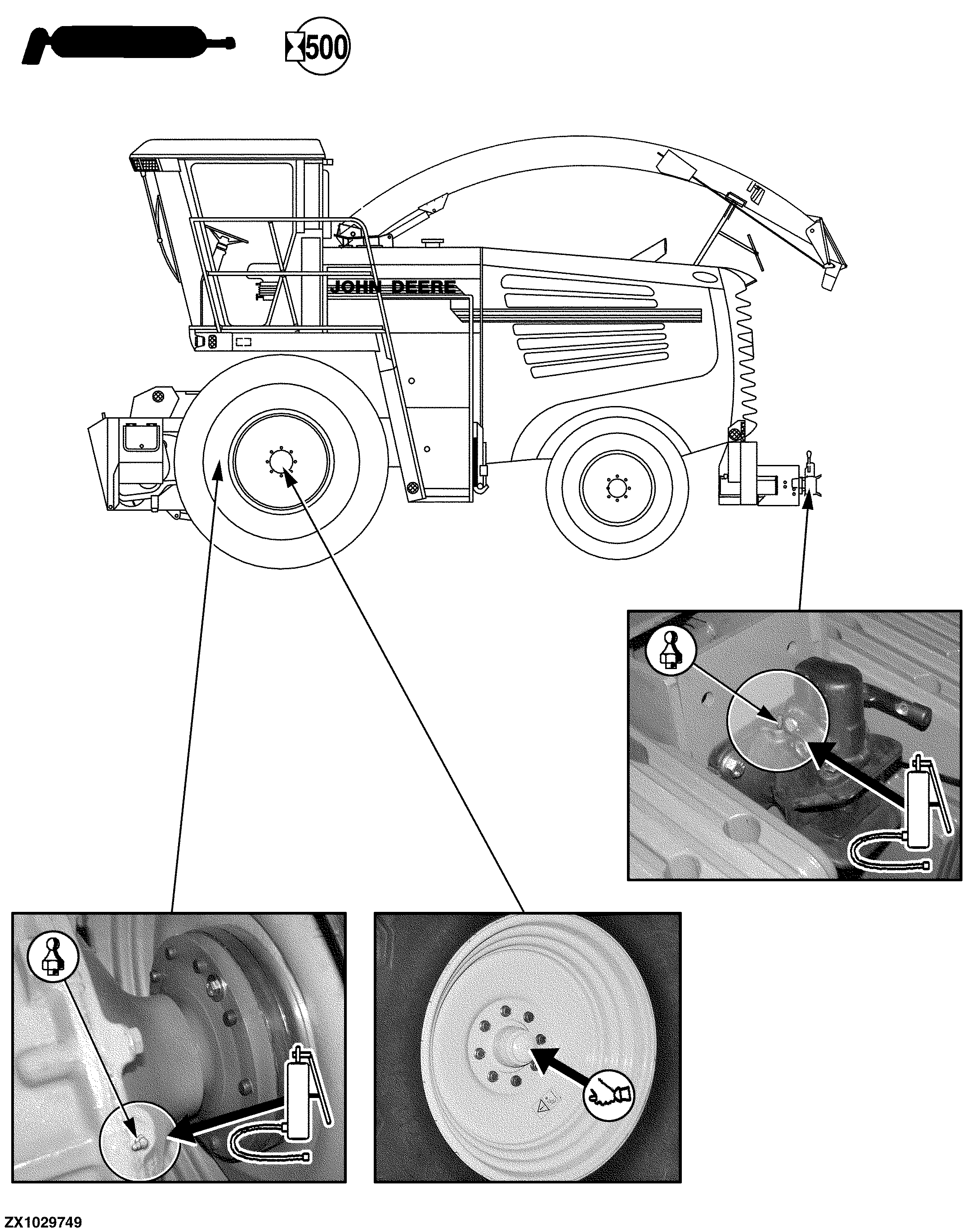

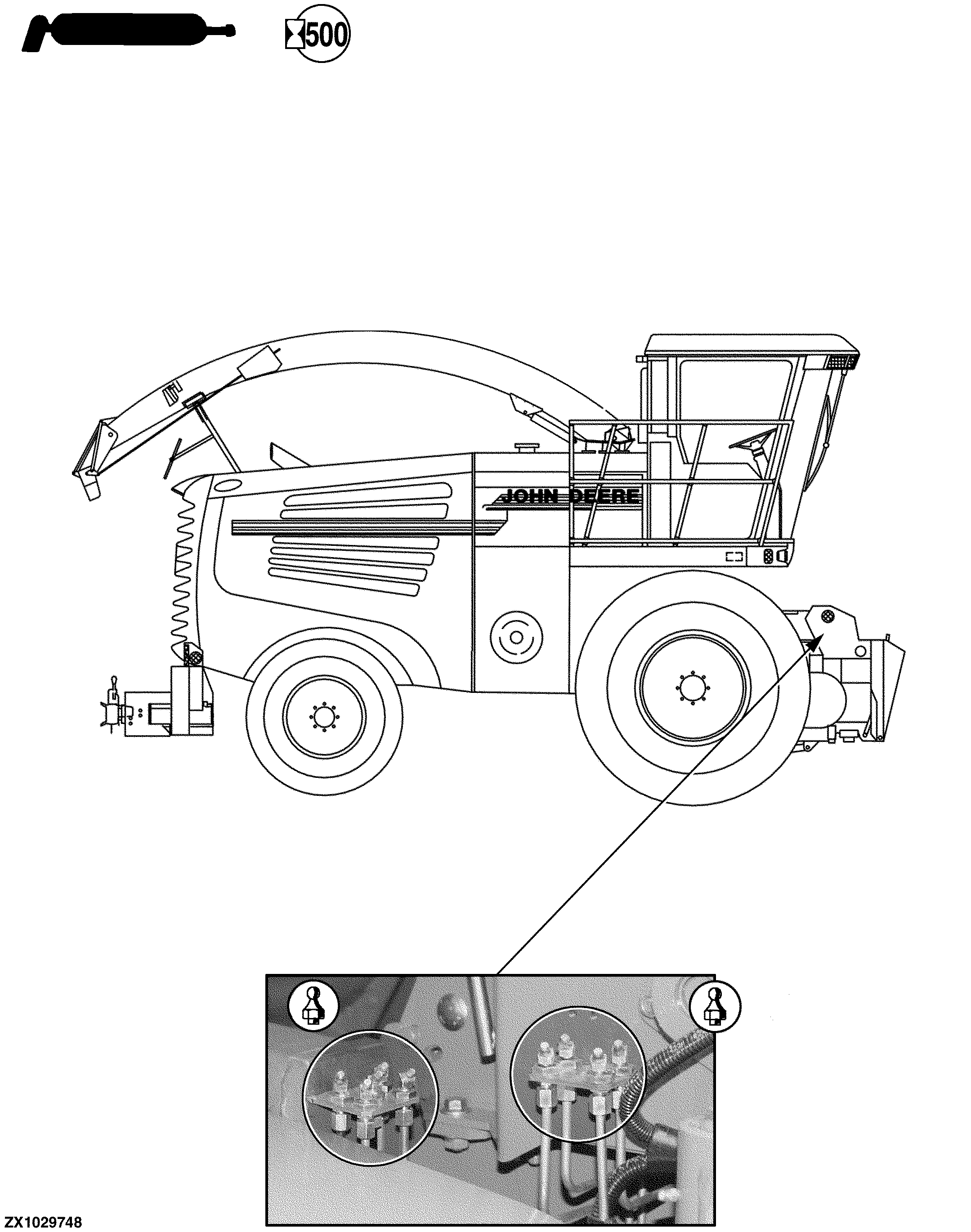

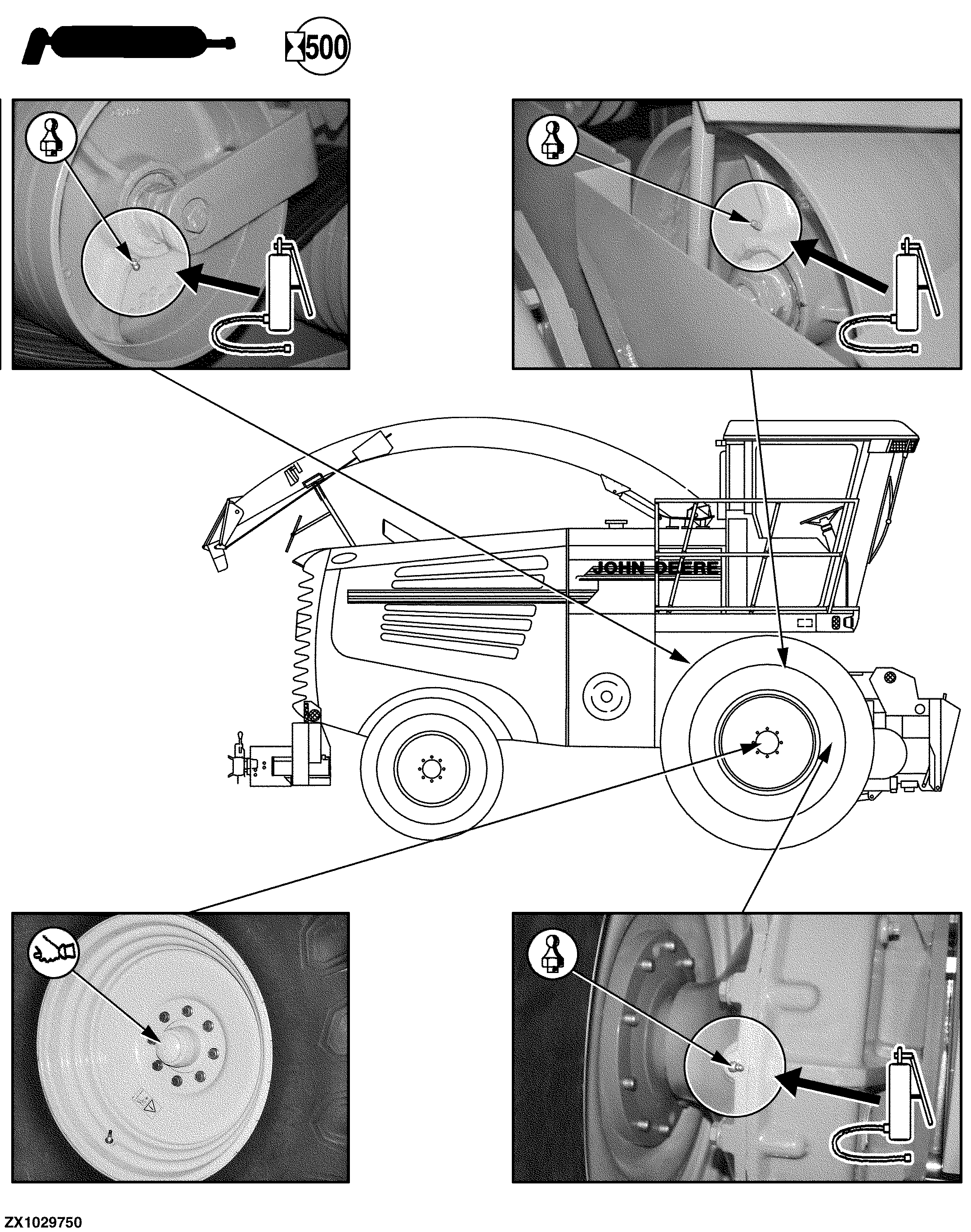

    500-Hour Interval

  • 1 point on main drive tensioning roll
  • 2 points on final drives
