Address SPF 111 Calibration - Sharpening Stone Home Position

Ignition and field mode are switched on.

After entering this diagnostic address the display will show the address and PS (Powr-Savr).

ZX029460

OUZXMAY,00005F4 -19-26OCT02-1/6

Pushing any Powr-Savr switch for at least 1 second.

The sharpening door will open (indicated by the inner bar graph).

ZX029451

OUZXMAY,00005F4 -19-26OCT02-2/6

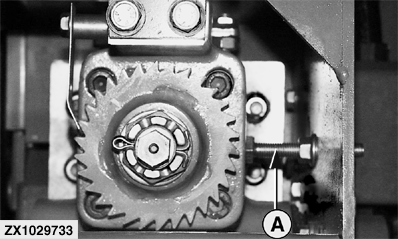

IMPORTANT: Do not turn beyond stop (A).

NOTE: From outside the cab a second person should observe the sharpening stone right cutterhead position.

Use the input control knob to move the sharpening stone to the home position, as shown on the r.h. side picture.

ZX029452
ZX1029733

OUZXMAY,00005F4 -19-26OCT02-3/6

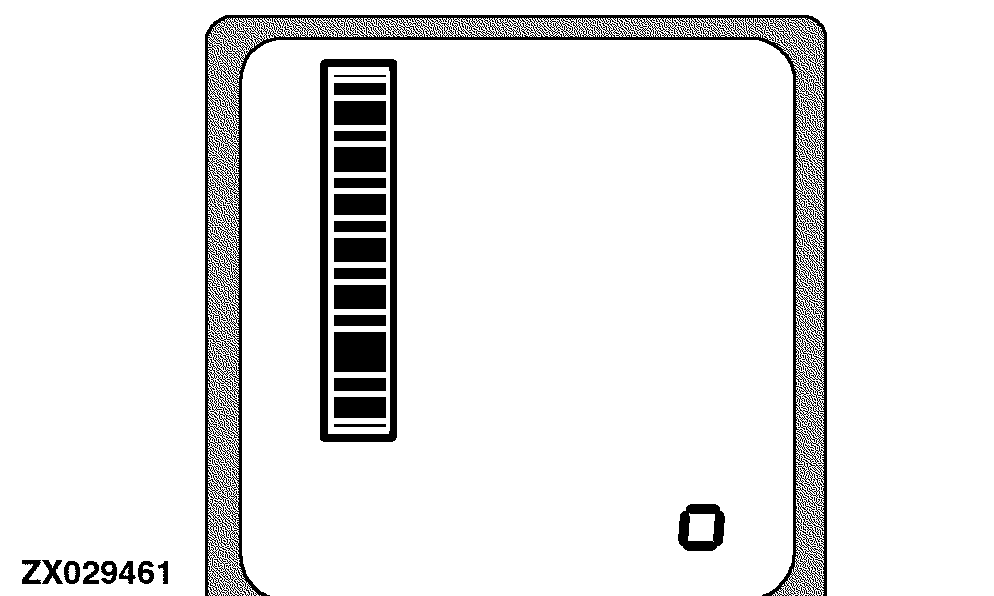

An indicator in the digital display line shows the position of the sharpening stone.

ZX029461

OUZXMAY,00005F4 -19-26OCT02-4/6

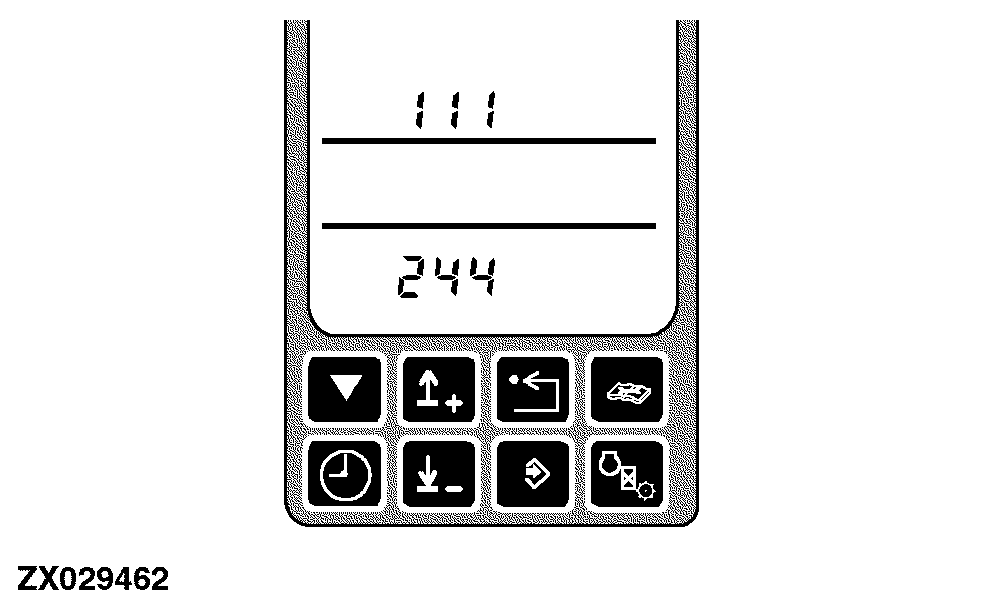

When the home position is reached the display will show the corresponding value. Press the enter switch to store this position.

ZX029462

OUZXMAY,00005F4 -19-26OCT02-5/6

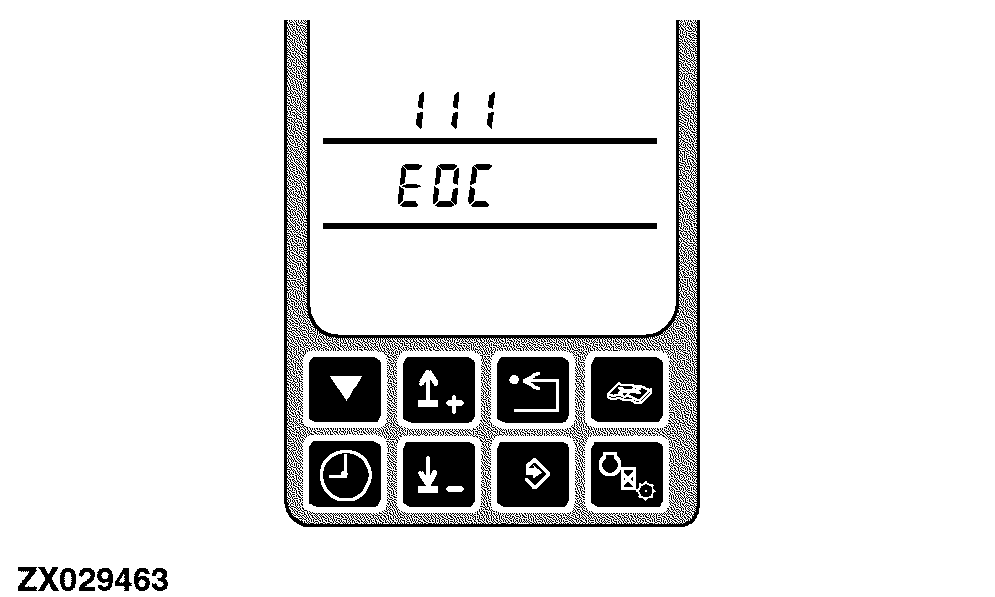

EOC will display the end of calibration mode.

ZX029463

OUZXMAY,00005F4 -19-26OCT02-6/6
