Address SPF 114 Calibration - Sharpening Stone Advance Position

Ignition and field mode are switched on.

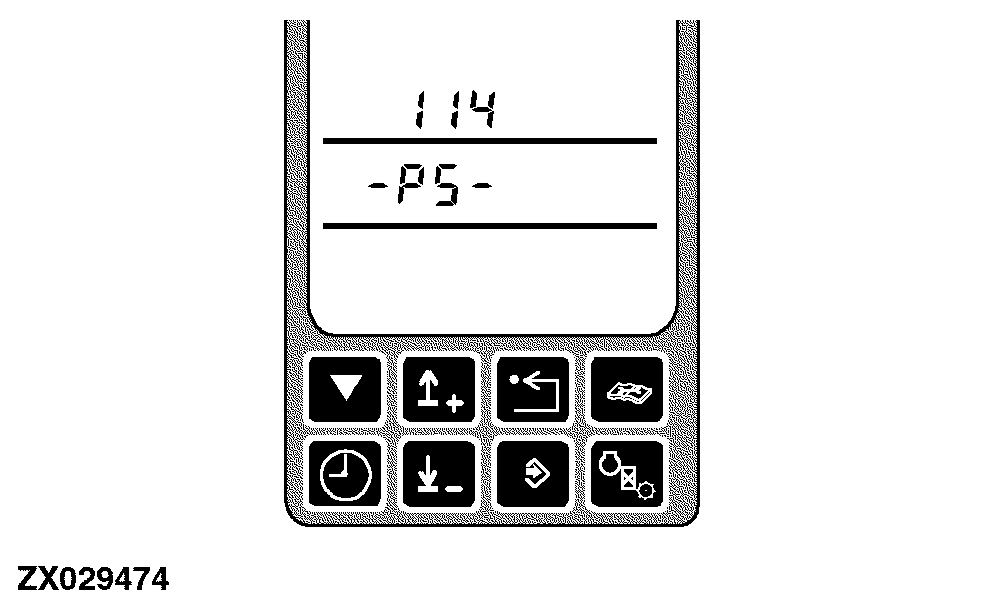

After entering this diagnostic address the display will show the address and PS (Powr-Savr).

ZX029474

OUZXMAY,00005F7 -19-26OCT02-1/6

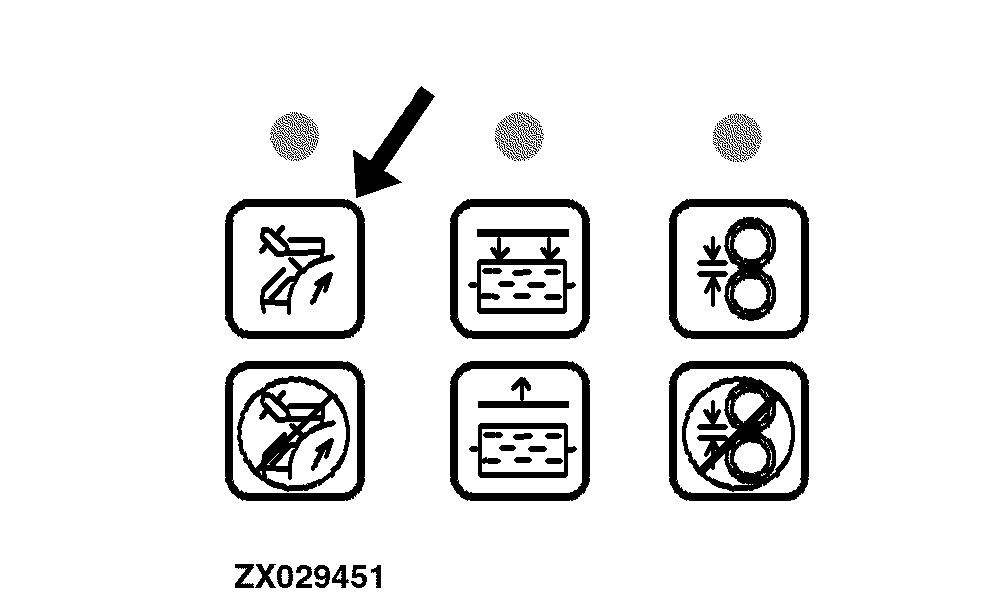

Pushing any Powr-Savr switch for at least 1 second.

The sharpening door will open (indicated by the inner bar graph).

ZX029451

OUZXMAY,00005F7 -19-26OCT02-2/6

NOTE: From outside the cab a second person should observe the sharpening stone advance position.

A click can be heard when latch (A) operates rachet (B).

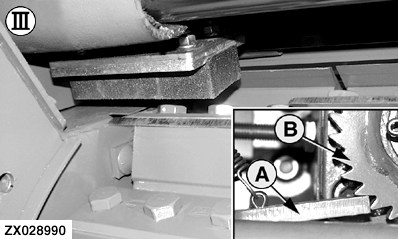

Use the input control knob to move the sharpening stone to the advance position, as shown (III).

ZX029452
ZX028990

OUZXMAY,00005F7 -19-26OCT02-3/6

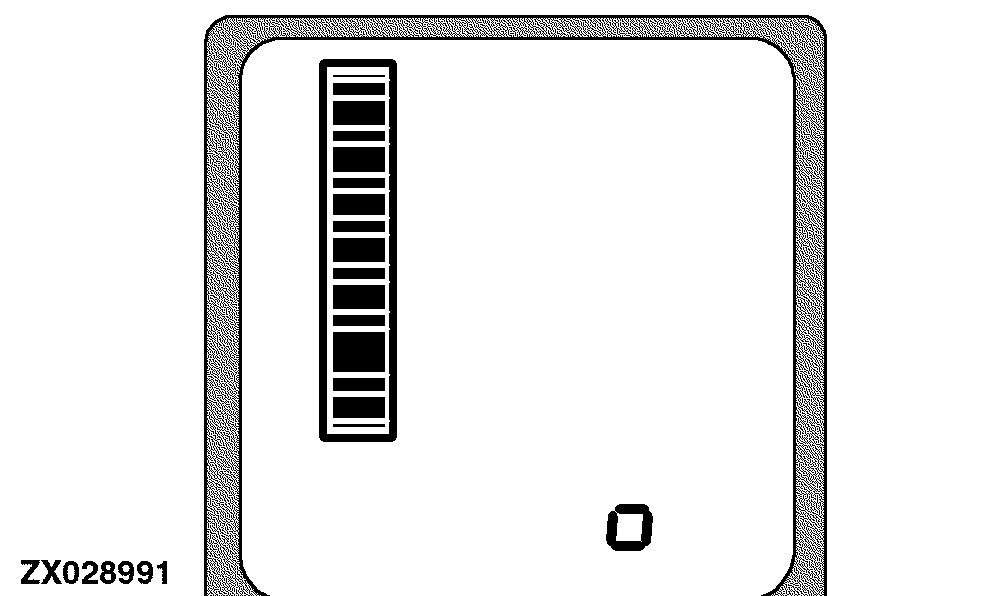

An indicator in the digital display line shows the position of the sharpening stone.

ZX028991

OUZXMAY,00005F7 -19-26OCT02-4/6

When the advance position is reached the display will show the corresponding value.

IMPORTANT: Ensure the latch has operated the rachet.

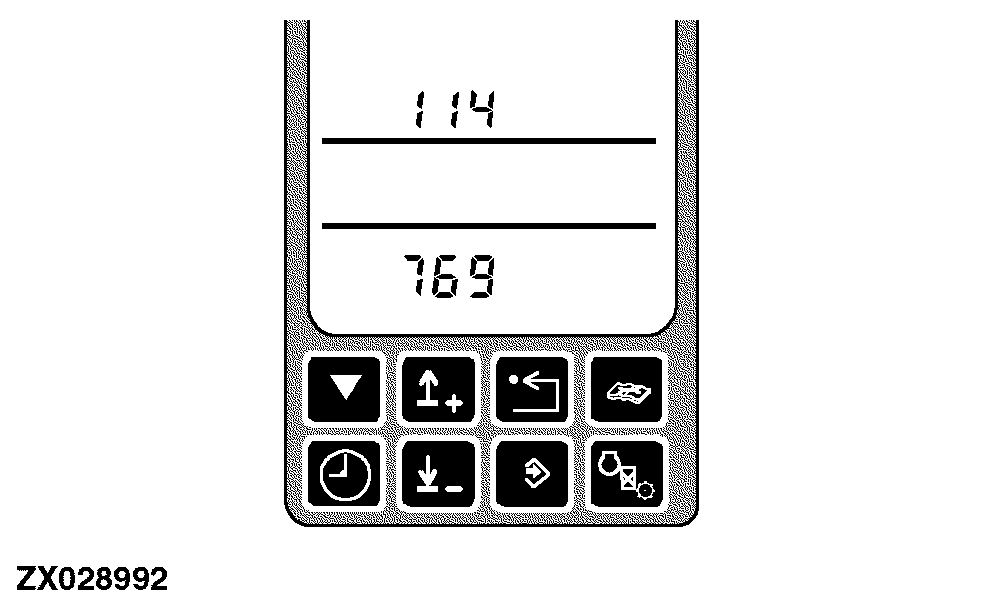

Press the enter switch to store this position.

ZX028992

OUZXMAY,00005F7 -19-26OCT02-5/6

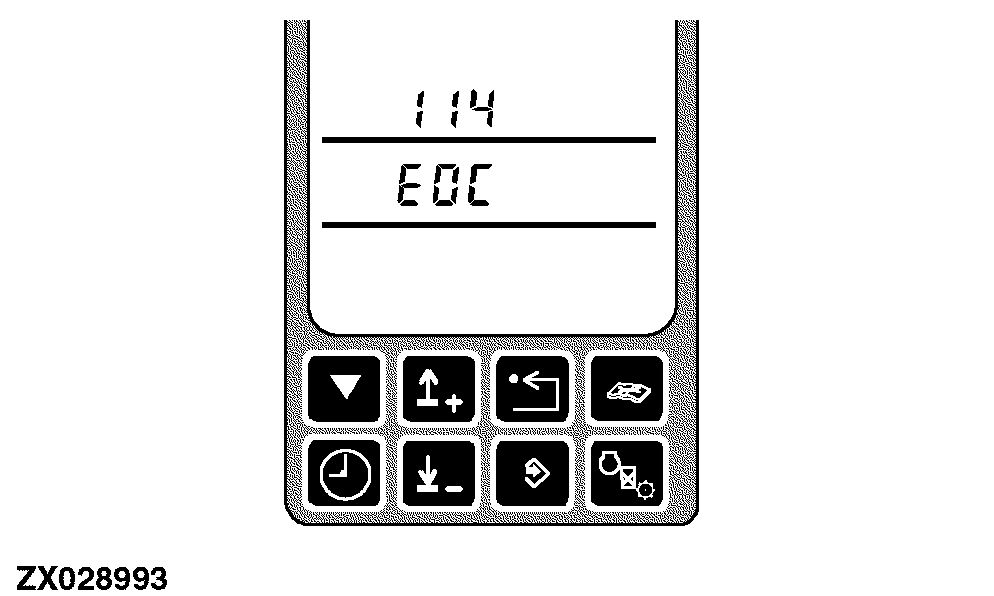

EOC will display the end of calibration mode.
