Opening Feed Roll Housing

Detach harvesting unit.

Move front shield of feed roll housing into vertical position.

Shut off engine.

CAUTION: Before carrying out any adjustment or service work, always disengage all drives, shut off engine and wait until all moving parts have stopped.

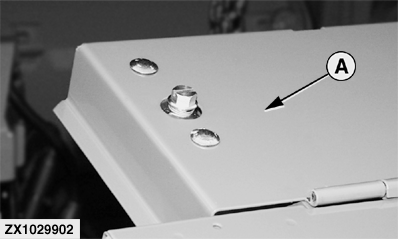

NOTE: To open cover (A), use a suitable tool (size 13 mm) or tool (X) (available through regular spare parts channels) or a screwdriver.

Fold cover (A) to the front or remove it.

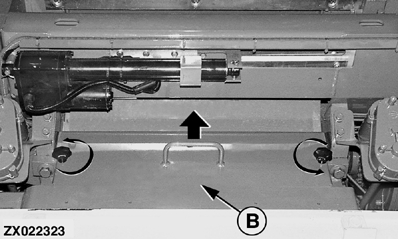

Remove guard (B).

OUZXMAY,00005F8 -19-26OCT02-1/3

Remove cap screws (A), (B) and (C).

A-Cap screw (top left)
B-Cap screw (top right)
C-Cap screw (bottom left)

OUZXMAY,00005F8 -19-26OCT02-2/3

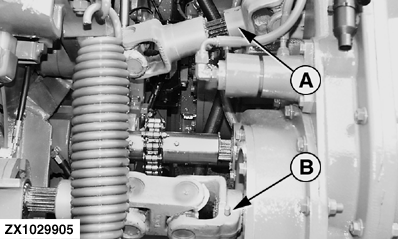

Remove jointed shafts (A) and (B) from length-of-cut transmission.

Open feed roll housing.

A-Jointed shaft
B-Jointed shaft

OUZXMAY,00005F8 -19-26OCT02-3/3
