Torques for Hardware

Crossmember Attaching Screws

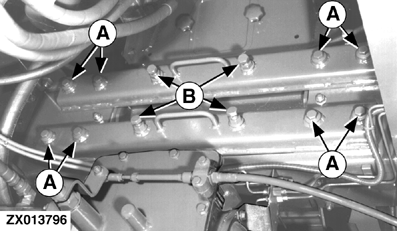

Tighten crossmember attaching screws (A) to 240 N·m (177 lb-ft).

Locking Screws

First tighten locking screws (B) at lower crossmember to 40 N·m (30 lb-ft), then tighten locking screws (B) at upper crossmember to 40 N·m (30 lb-ft).

IMPORTANT: Repeat this procedure several times until all locking screws remain at the specified torque. Tighten lock nuts.
