Installing Wear Plate

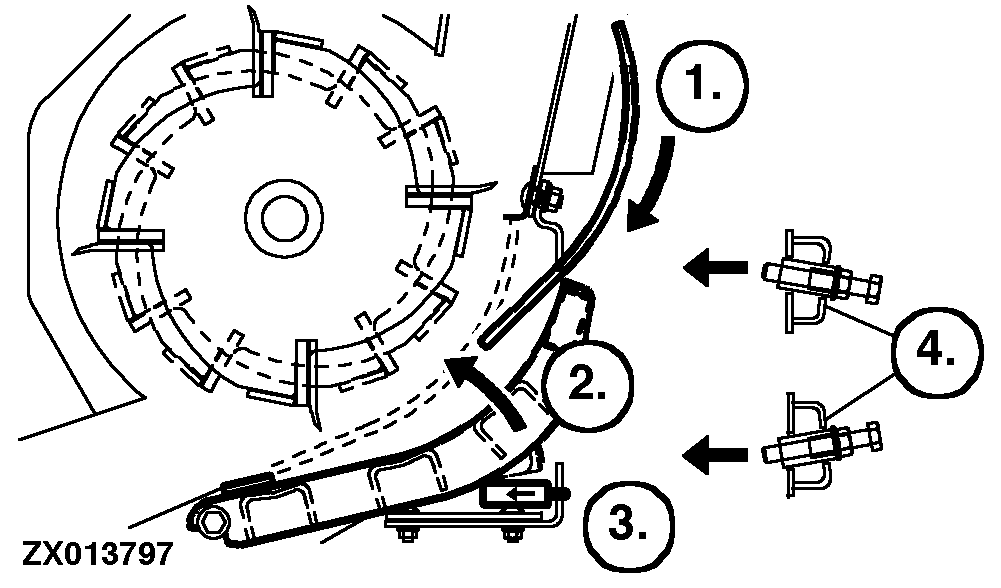

For installation, reverse removal procedure and install components in the following sequence:

  • Wear plate
  • Frame
  • Clamping key

Crossmembers

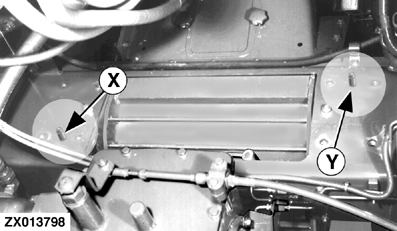

When installing crossmembers, make sure that bores in crossmembers are aligned with pins (X - bottom l.h.) and (Y - top r.h.).
