Intake Opening of Blower Fan

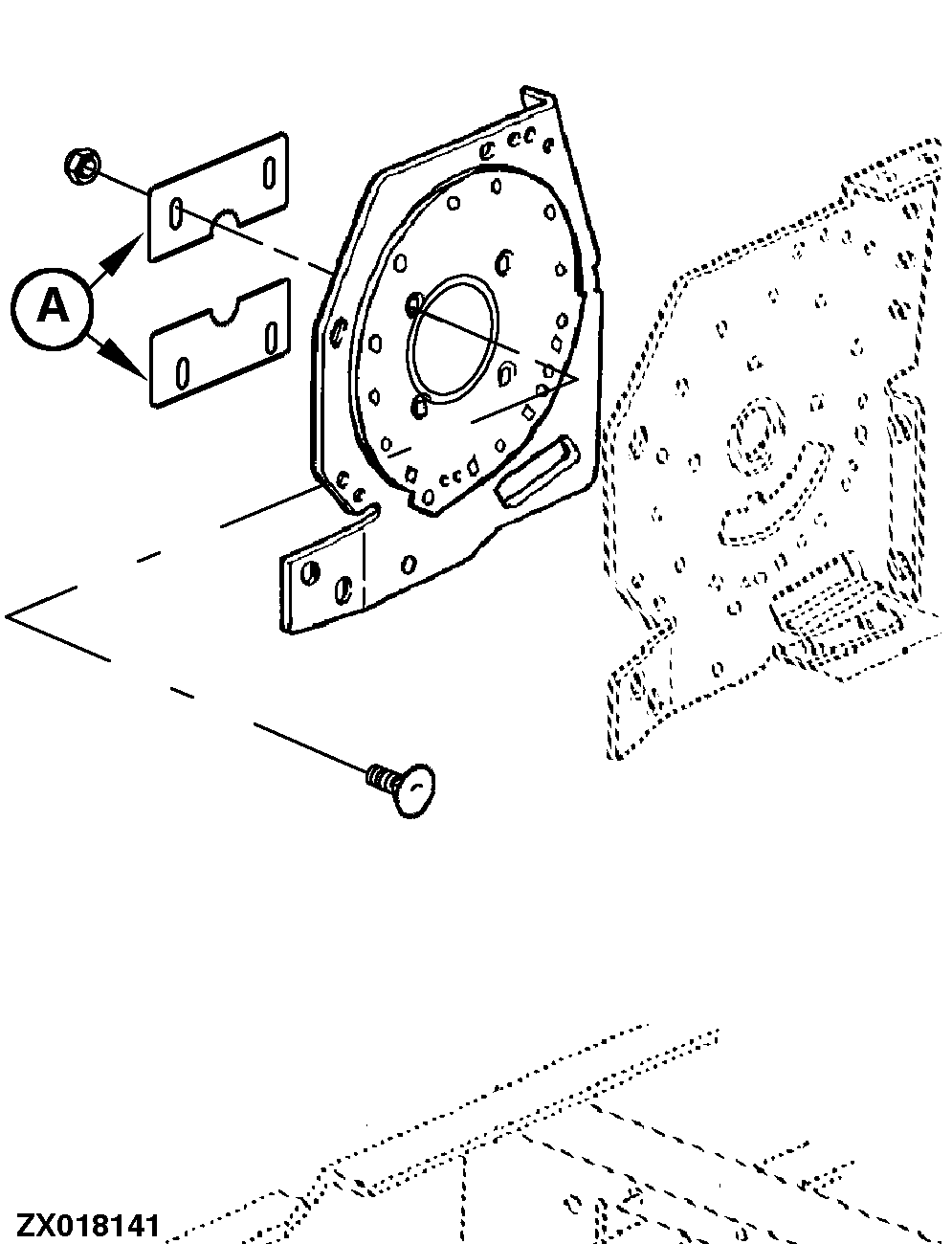

When harvesting dry grass, use two plates (A) to adjust the intake opening of the blower fan to suit the harvesting conditions. Bolt plates (A) on the outside, using two M10 carriage bolts for each plate (inserted from the inside), and secure with self-locking nuts.

Regulate the airflow by sliding within the slots.
