Transmission Oil

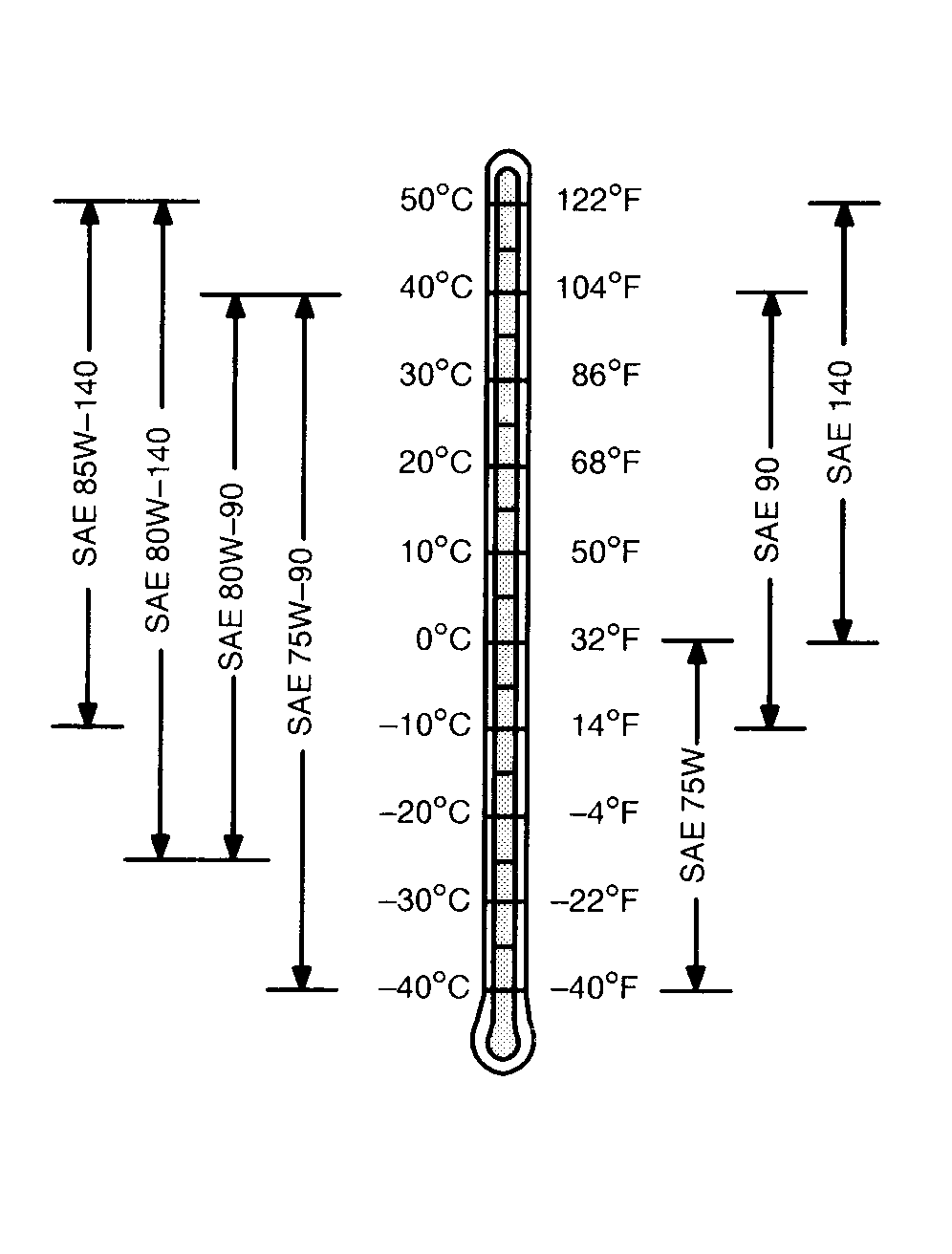

Use oil viscosity based on the expected air temperature range during the period between oil changes.

    The following oils are preferred:

  • John Deere EXTREME-GARD
  • John Deere GL-5 GEAR LUBRICANT

    Other oils may be used if they meet the following:

  • API Service Classification GL-5
TS1653

ZX,DX,GEOIL -19-01JUL96-1/1
