Replacing Clamp Bar

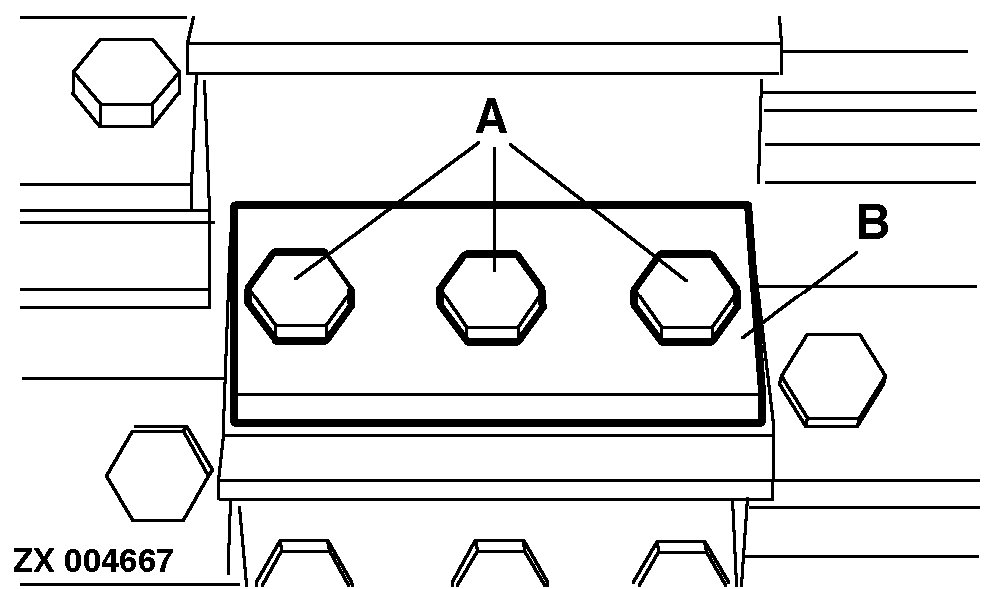

Remove attaching screws (A) and clamp bar (B).

IMPORTANT: Thoroughly clean knife bed area of knife retainer and threaded bar.

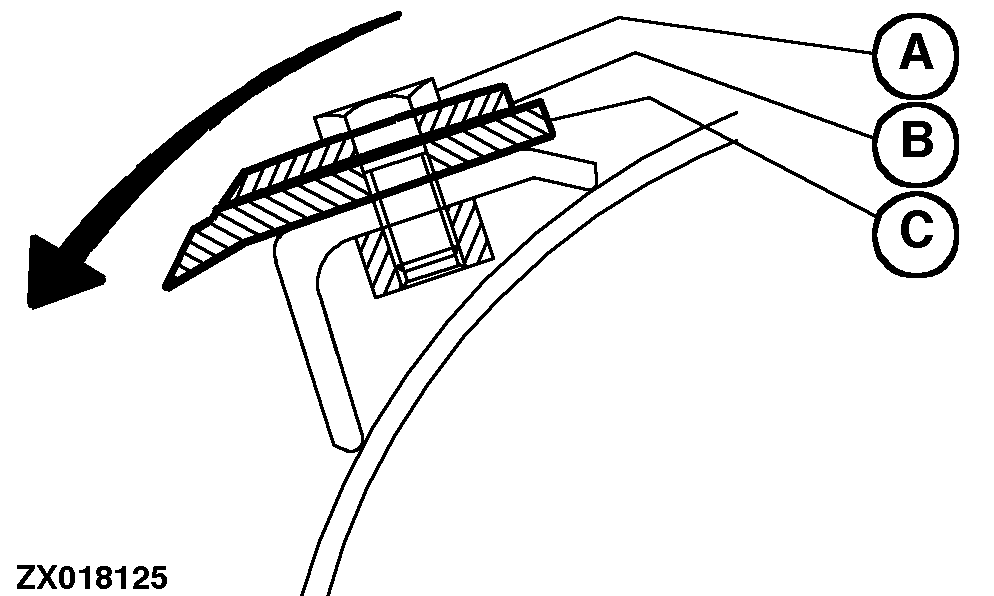

When installing make sure that chamfered clamp bar side (B) is pointing to the cutting edges of the knives.

Adjust knife and tighten screws (refer to the instructions in this Section).
