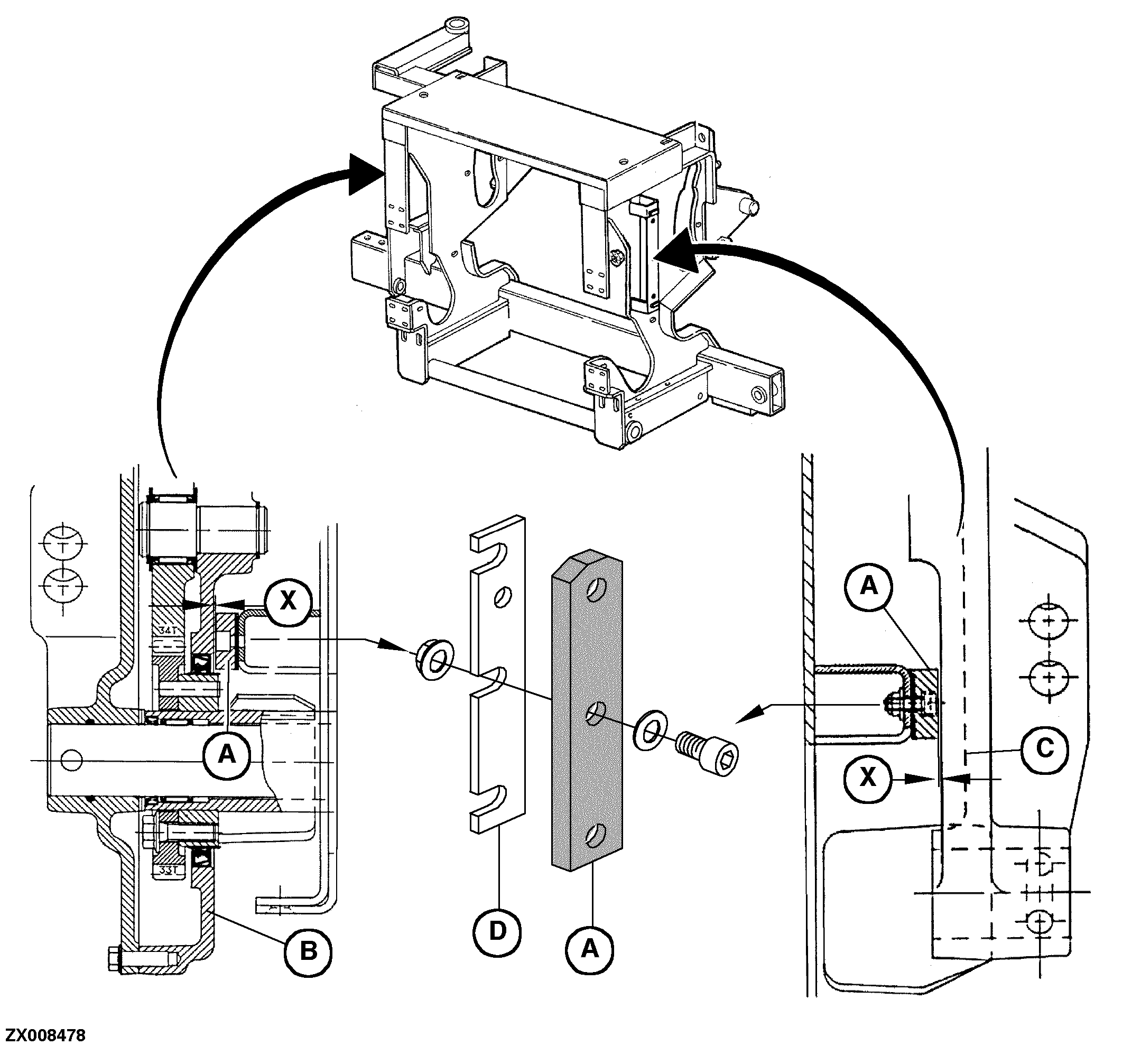

A-Guides (2 used)
B-Transmission

C-Cast arm

D-Shim (2 used)

X-0.5 - 1.5 mm (0.02 - 0.06 in.)

On each side, clearance (X) between guide (A) and transmission (B) or cast arm (C) must be 0.5 - 1.5 mm (0.02 - 0.06 in.).

If maximum clearance is exceeded, adjust specified clearance using 1 mm (0.4 in.) shims (D). Replace guides (A), if they are excessively worn.

ZX,OMSPFH005106 -19-01JAN96-1/1
