Assembly
Remove Handle Hardware

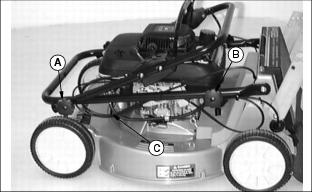

1. Loosen knob (A) on each side.
2. Remove knob (B) and bolt from each side.
3. Cables (C) should be inside handle.
Unfold Handles
1. Remove tie strap from around blade lockout lever and handle.
2. Remove foam packing from lower handlebar.
3. Install bolt (A) through desired square hole in bracket (B) and through handle on each side. Bracket should be inside handle. Use same square hole on each side.
4. Install knob (C) on each bolt.

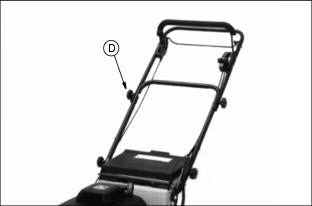

5. Pivot handle to the STRAIGHT position. Hold handle and tighten knob (D) on each side.
Add Engine Oil
2. Pour 0.6 L (20 oz) oil into dipstick tube.

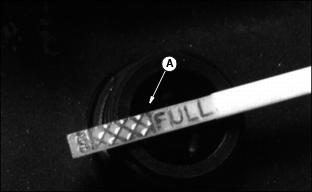

· Check oil level. Oil should be to the FULL mark (A). If not, add Oil.
5. Install and tighten dipstick.
6. Remove "NO OIL" tag from top of engine.
Charge Battery (JE75)
IMPORTANT: Avoid damage! Use only charger supplied with mower. Other chargers may damage battery. · Charge battery 24-36 hours before you use battery for the first time. |

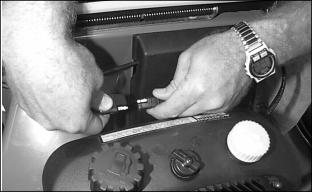

1. Disconnect battery wire connector from engine wire connector.

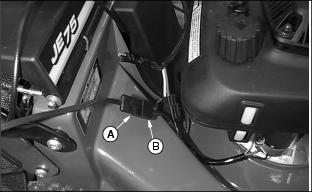

2. Connect battery charger cord connector (A) to battery wire connector (B).
3. Plug battery charger into a 115-volt house receptacle.
4. Charge battery 24-36 hours.
5. Unplug cord from house receptacle, then from battery.
6. Connect battery wire connector to engine wire connector.

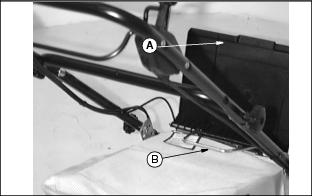

Install Grass Bag
Test Mower
1. Put enough fuel in fuel tank to test mower operation.

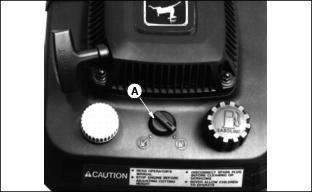

2. Turn fuel shutoff knob (A) to the OPEN position.
3. Move throttle lever (B) to the FAST r position.
4. Start engine and check mower operation. (See Operating section).
5. Stop engine and turn fuel shutoff knob to the CLOSED position.
