Controls

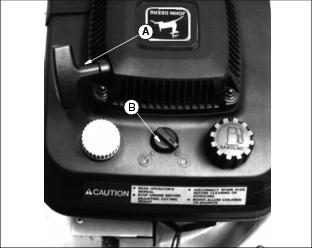

Engine Controls
A - Starter Handle - Pull to start engine
B - Fuel Shutoff Knob - Controls fuel flow to engine
Handle Controls
A - Blade Lockout and Stop Lever - Stops blades
B - Traction Clutch Lever - Engages traction
C - Key (Model JE75) - Starts engine
D - Blade Engagement Lever - Starts blades
E - Gear Shift Lever - Changes gears
F - Throttle Lever - Controls engine speed
Handle and Cutting Height Controls
A - Fold Handle Knobs - Folds handle
