Specifications


Engine

Manufacturer John Deere

Model Number

260 3029T

270 4045D

Type Diesel

Cylinders 3

Rated Engine RPM 2400 rpm

Net Horsepower at Rated Engine RPM

260 51.5 kW

270 57.5 kW (77 hp)

Bore 106 mm (4.17 in.)

Stroke

260 110 mm (4.33 in.)

270 127 mm (5.00 in.)

Displacement

260 2.9 L (179 cu3)

270 14.5 L ( 276 cu3)

Compression Ratio

260 17.8:1

270 17.6:1

Lubrication Full Pressure

Cooling System Liquid-cooled

Oil Filter Full flow (replaceable)

Air Cleaner Dry paper with primary and secondary elements

Fuel System

Fuel Diesel

Fuel Filter In-line replaceable filter - Fuel/Water Separator

Fuel Pump Electric

Fuel Delivery Rotary injection

Electrical System

Type 12 volt, Electric start

Charging System Alternator, 55 amp

Battery 950 CCA (cold cranking amps)

Capacities

Fuel Tank 76 L (20 gal)

Hydraulic Reservoir 23.5 L (6.2 gal)

Hydraulic System Capacity 34.1 L (9.0 gal)

Cooling System

260 10.6 L (11.2 qt)

270 13.4 L (14.2 qt)

Engine Oil (with Filter)

260 7.0 L (7.4 qt)

270 12.0 L (12.7 qt)

Chain Case (per side) 11.5 L (3.1 gal)

Hydraulics and Hydrostatics

Hydrostatic Pumps Tandem variable displacement piston type

Hydrostatic Motors Fixed displacement GerolerŪ type

Gear Pump

Standard Flow 80.6 L/min (21.3 gpm)

High Flow 132.1 L/min (34.9 gpm)

Hydrostatic System Relief Pressure

Single Speed 34 474 1379 kPa (5,000 200 psi)

Two Speed 37 921 1379 kPa (5,500 200 psi)

Hydrostatic Pump Flow

Single Speed 114 L/min (30 gpm)

Two Speed 93 L/min (24.5 gpm)

Charge Pressure

Single Speed 1379-1551 kPa (200-225 psi)

Two Speed 1931-2208 kPa L/min (280-340 psi))

Hydraulic Control Valve 3 Spool open center

Filter Spin-on canister

Hydraulic System Relief Pressure

Single Speed 21 374 1034 kPa (3,100 150 psi)

Two Speed 21 374 1379 kPa (3,100 200 psi)

Boom Circuit Relief Pressure 22 753 kPa (3,300 psi)

Performance

Skid Steer SAE Rated Operating Capacity

260 998 kg (2,200 lb)

270 1,180 kg (2,600 lb)

Operating Weight

260 3,584 kg (7,900 lb)

270 3,693 kg (8,140 lb)

Tipping Load

260 2,185 kg (4,818 lb)

270 2,359 kg (5,200 lb)

Axle Torque 8,496 kg (6,266 lb)

Ground Speed

Maximum Ground Speed

Single Speed - (with 14x17.5 tires) 10.6 km/h (6.6 mph)

Low Range Two Speed - (with 14x17.5 tires) 11.3 km/h (7.0 mph)

Low High Two Speed - (with 14x17.5 tires) 19.3 km/h (12.0 mph)

Breakout Force

Breakout Force

Boom 2,132 kg (4,700 lb)

Bucket 6,700 kg (3,039 lb)

Dimensions

260 and 270 (equipped with 14.00 x 17.5 Standard tires and 78" foundry bucket)

Overall Operating Height 4,000 mm (157.5 in.)

Height to ROPS 2,105 mm (82.9 in.)

Height to Hinge Pin 3,226 mm (127 in.)

Overall Width (less bucket) 1,913 mm (75.3 in.)

Overall Width (with bucket) 1,981 mm (78 in.)

Overall Length (less bucket) 2,921 mm (115 in.)

Overall Length (with bucket) 3,504 mm (138 in.)

Wheelbase 1,227 mm (48.3 in.)

Ground Clearance 280 mm (11 in.)

Dump Height 2,591 mm (102 in.)

Dump Reach 813 mm (32 in.)

Dump Angle 45 degrees

Bucket Rollback 35 degrees

Angle of Departure 26 degrees

Tire Options and Pressures

The application, load, and operator's preference should be used to determine inflation pressures within the given ranges listed below. All four tires on the skid steer should be set to the same inflation pressure to maintain proper tracking of the skid steer.

260 and 270 Skid Steers:

12.0 x 16.5 - Solideal SKS Standard Duty, 8PR 324- 365 kPa (47- 53 psi)

12.0 x 16.5 - Solideal Extra-Wall, 10PR 427- 469 kPa (62- 68 psi)

12.0 x 16.5 - Solideal Hauler, 10PR 427- 469 kPa (62 -68 psi)

12.0 x 16.5 - Galaxy "Beefy Baby II" Heavy Duty, 10PR 276- 448 kPa (40- 64 psi)

12.0 x 16.5 - SuperFlex Foam Filled Galaxy "Beefy Baby II" N/A

14.0 x 17.5 - Solideal Xtra-Wall, 12PR 455- 510 kPa (66- 74 psi)

14.0 x 17.5 - Solideal Hauler, 14PR 524- 579 kPa (76- 84 psi)

14.0 x 17.5 - Galaxy "Beefy Baby II" Heavy Duty, 14PR 241- 552 kPa (35- 80 psi)

14.0 x 17.5 - SuperFlex Foam Filled Galaxy "Beefy Baby II", 14PR N/A

33.5/1550 x 16.5 - Galaxy "Hippo" Flotation, 12PR 241- 414 kPa (35- 60 psi)

9 x 16 - Mitco "Duro Cushion" Solid, N/A N/A

Recommended Lubricants

Engine Oil John Deere TORQ-GARD SUPREME or PLUS-50

Grease John Deere SPECIAL-PURPOSE HD MOLY GREASE

John Deere MULTI-PURPOSE SD POLYUREA GREASE

Engine Coolant John Deere COOL-GARD

Hydraulic and Hydrostatic Oil John Deere HY-GARD

(Cold Weather Operation) John Deere Low Viscosity HY-GARD

Chain Case Oil John Deere HY-GARD

John Deere TORQ-GARD SUPREME

PLUS-50

(Cold Weather Operation) John Deere Low Viscosity HY-GARD

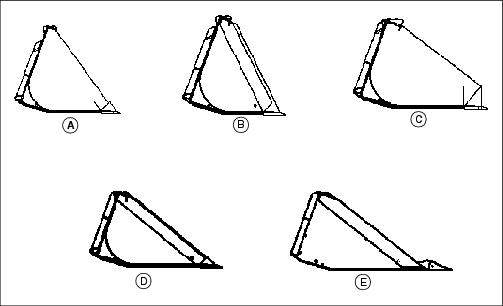

Bucket Options


MIF

A - Light Material

B - Foundry

C - Manure & Slurry

D - Construction

E - Tooth

Light Material Bucket Capacities (A)

72 Inch

Capacity Struck 0.47 m3 (16.6 cu3)

Capacity Heaped 0.61 m3 (21.6 cu3)

84 Inch

Capacity Struck 0.55 m3 (19.5 cu3)

Capacity Heaped 0.72 m3 (25.4 cu3)

Foundry Bucket Capacities (B)

72 Inch

Capacity Struck 0.35 m3 (12.3 cu3)

Capacity Heaped 0.45 m3 (16.0 cu3)

Manure & Slurry Bucket Capacities (C)

72 Inch

Capacity Struck 0.41 m3 (14.4 cu3)

Capacity Heaped 0.50 m3 (17.8 cu3)

84 Inch

Capacity Struck 0.48 m3 (16.8 cu3)

Capacity Heaped 0.63 m3 (22.1 cu3)

Construction Bucket Capacities (D)

72 Inch

Capacity Struck 0.37 m3 (13.0 cu3)

Capacity Heaped 0.50 m3 (17.8 cu3)

78 Inch

Capacity Struck 0.39 m3 (13.6 cu3)

Capacity Heaped 0.55 m3 (19.4 cu3)

84 Inch

Capacity Struck 0.43 m3 (15.3 cu3)

Capacity Heaped 0.60 m3 (21.0 cu3)

Tooth Bucket Capacities (E)

72 Inch

Capacity Struck 0.37 m3 (13.0 cu3)

Capacity Heaped 0.50 m3 (17.8 cu3)

78 Inch

Capacity Struck 0.39 m3 (13.6 cu3)

Capacity Heaped 0.55 m3 (19.4 cu3)

84 Inch

Capacity Struck 0.43 m3 (15.3 cu3)

Capacity Heaped 0.60 m3 (21.0 cu3)

Specifications and design subject to change without notice.

O-Ring Seal Service Recommendations

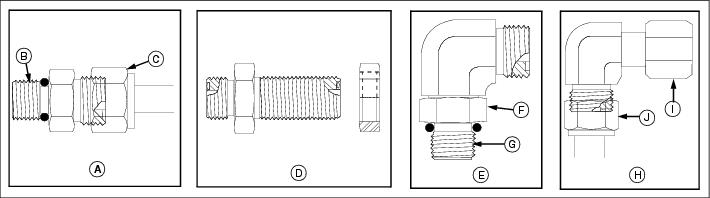

Face Seal Fittings with Inch Stud Ends Torque

MIF

A - Straight Stud and Tube Nut

B - Stud End

C - Tube Nut

D - Bulkhead Union and Bulkhead Locknut

E - 90° Adjustable Stud Elbow

F - Locknut

G - Stud End

H - 90° Swivel Elbow and Tube Nut

I - Swivel Nut

J - Tube Nut

Nominal Tube O.D./Hose I.D.

Face Seal Tube/Hose End

O-ring Stud Ends

Metric Tube O.D.

Inch Tube O.D.

Thread Size

Tube Nut/Swivel Nut Torque

Bulkhead Locknut Torque

Thread Size

Straight Fitting or Locknut Torque

mm

Dash Size

in.

mm

in.

N·m

lb-ft

N·m

lb-ft

in.

N·m

lb-ft

-3

0.188

4.76

3/8-24

8

6

6

-4

0.250

6.35

9/16-18

16

12

12

9

7/16-20

12

9

8

-5

0.312

7.94

1/2-20

16

12

10

-6

0.375

9.52

11/16-16

24

18

24

18

9/16-18

24

18

12

-8

0.500

12.70

13/16-16

50

37

46

34

3/4-16

46

34

16

-10

0.625

15.88

1-14

69

51

62

46

7/8-14

62

46

-12

0.750

19.05

1-3/16-12

102

75

102

75

1-1/16-12

102

75

22

-14

0.875

22.22

1-3/16-12

102

75

102

75

1-3/16-12

122

90

25

-16

1.000

25.40

1-7/16-12

142

105

142

105

1-5/16-12

142

105

32

-20

1.25

31.75

1-11/16-12

190

140

190

140

1-5/8-12

190

140

38

-24

1.50

38.10

2-12

217

160

217

160

1-7/8-12

217

160
