Service Lubrication
Grease
Use grease based on the expected air temperature range during the service interval.
The following greases are preferred:
· John Deere SPECIAL-PURPOSE HD MOLY GREASE
· John Deere MULTI-PURPOSE SD POLYUREA GREASE
Other greases may be used if they meet one of the following:
· SAE Multipurpose EP Grease with a maximum of 5% molybdenum disulfide
Grease meeting Military Specification MIL-G-10924F may be used as arctic grease.
Lubricating Boom Cylinders, Bucket Cylinders, and QUIK-TATCH
NOTE: In severe operating conditions, QUIK-TATCH linkage/pivot points (C) may need more frequent lubrication.

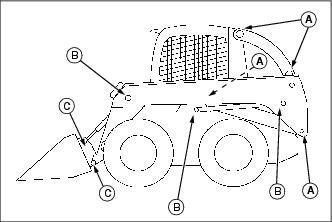

Lubricate pivot points (A), cylinders (B), and QUIK-TATCH linkage/pivot points (C) on each side of boom every 50 hours with one or two shots of John Deere grease.
