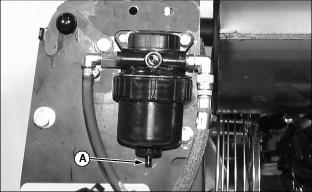

Draining Fuel/Water Separator Filter

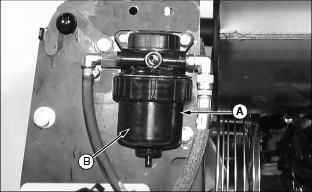

Changing Fuel/ Water Separator Filter

Priming Fuel System

Service Chain Case

Service Hydraulics

Service Steering & Brakes

Service Electrical

Service Miscellaneous

Troubleshooting

Storage

Specifications

Warranty

John Deere Quality Statement

Service Record

All Manuals Close Window

Service Engine


Avoid Fumes

c CAUTION: Avoid injury! Engine exhaust fumes can cause sickness or death:

Catalytic mufflers reduce emissions. The effectiveness depends upon engine load and exhaust temperature levels that are not always present in skid steer operations. Catalytic mufflers WILL NOT provide fume-free exhaust for confined operations.

If it is necessary to run an engine in an enclosed area, use an exhaust duct system to remove the fumes.

Always work in a well ventilated area.

Engine Oil

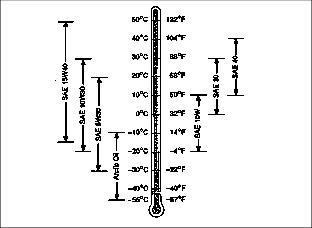

Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following oil is preferred after first 100 hours of break-in oil is used:


TS1411

John Deere TORQ-GARD SUPREME or PLUS-50

Other oils may be used if they meet one of the following:

API Service Classification CE

API Service Classification CD

CCMC Specification D5

CCMC Specification D4

If John Deere TORQ-GARD SUPREME or PLUS-50 engine oil and a John Deere oil filter are used after first 100 hours, the oil and filter service interval may be extended by 50%.

If diesel fuel exceeding 0.5% sulfur content is used, reduce the service interval for engine oil and filter by 50%.

Oils meeting Military Specification MIL-L-46167B may be used as arctic oils.

Checking Engine Oil Level

IMPORTANT: Avoid damage! During first 100 hours of break-in operation use only John Deere Break-In, TORQ-GARD SUPREME, or PLUS 50.

Do not overfill. If overfilled, oil can cause engine damage.


1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Open rear service door and engine cover.


KV17701

3. Remove dipstick (A).

NOTE: Add less than one quart if oil level measures to mark at (B).


KV0415

4. Oil level should be between the ADD and full mark. Add oil if necessary.

5. Install dipstick.

Changing Engine Oil and Filter

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Run engine a few minutes to warm oil.

3. Engage park brake switch.

4. Stop engine.


KV15229

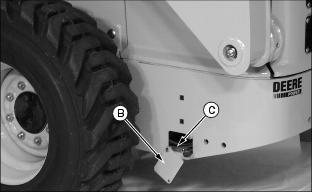

5. To locate engine oil drain hose (A), remove access cover on left side of skid steer.

6. Remove plug using two wrenches to avoid twisting the hose. Allow oil to drain into a suitable container.

7. Dispose of oil properly.

NOTE: Make sure O-ring is still intact when installing hose plug.

8. After all oil has drained, install hose plug.

9. Open rear service door and engine cover.

10. Remove left side engine panel.


KV17702

11. Clean dirt or debris from around engine oil filter (B). Remove oil filter using a filter wrench. Turn filter counterclockwise.

12. Apply a film of clean engine oil on seal of new filter.

13. Install filter. Turn filter until seal contacts mounting surface. Then turn filter by hand 1/2 turn more.

NOTE: Rocker arm cover in photo may be reversed depending upon skid steer model.


KV17703

14. Remove engine oil fill cap (C).

IMPORTANT: Avoid damage! During first 100 hours of break-in operation use only John Deere Break-In, TORQ-GARD SUPREME, or PLUS-50.

Do not overfill. If overfilled, oil can cause engine damage.


15. Add oil through fill cap with John Deere TORQ-GARD SUPREME or PLUS-50. Engine oil capacity is:

260 -- 7.0 L (7.4 qt)

270 -- 12.0 L (12.7 qt)

16. Check engine oil level.

17. Install and tighten fill cap.

18. Start engine and run at slow speed for two minutes. Check for leaks around filter and drain plug.

19. Check engine oil level.

20. Install access cover removed earlier. Tighten access cover cap screws.

21. Install left side engine panel, close engine cover, and rear service door.

Cleaning Radiator and Oil Cooler Fins

1. Park machine safely. (See Parking Safely in the SAFETY section.)

c CAUTION: Avoid injury! Allow engine to cool enough so that components can be touched with bare hands.

2. Open rear service door.


KV0578

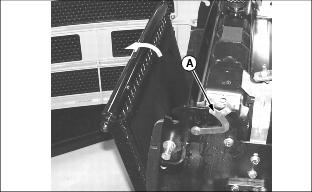

3. Lift upper two latches (A) from oil cooler (one on each side). Pivot oil cooler out and away from radiator.

4. Clean radiator fins and cooler fins using compressed air.

5. Clean any dirt build-up in the engine area.

6. If any areas require washing after cleaning with air, allow radiator and cooler parts to dry thoroughly before operating skid steer.

7. Pivot oil cooler into position and secure with latches (A).

8. Close rear service door.

Replacing Primary Air Cleaner Element

IMPORTANT: Avoid damage! Do not clean primary air cleaner element. Replace it when air restriction light is illuminated on the instrument panel. To prevent dirt from being sucked in to the engine, do not remove element when the engine is running.

Do not start engine without both the primary and secondary filter elements installed.


1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Open rear service door and engine cover.

3. Remove left side engine panel.


KV17703

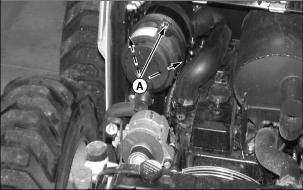

4. Unhook three end cap latches (A) and remove end cap.


KV17705

5. Remove and discard primary element (B).

6. Clean any loose dirt from the canister and inspect the end of the canister for dirt that may prevent the new element from sealing properly.

7. Install new primary element.

8. Install cover and secure with three latches.

9. Start engine and check air restriction indicator to be sure there is no restriction.

If air restriction indicator still shows restriction, replace secondary element.

10. Install left side engine panel, close engine cover, and rear service door.

Replacing Secondary Air Cleaner Element

IMPORTANT: Avoid damage! Do not clean secondary element. Replace it when air restriction light is illuminated on the instrument panel and primary element has already been replaced. Do not remove secondary element unless you are replacing it.

Do not start engine without both the primary and secondary filter elements installed.


1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Remove primary element.


KV17706

3. Remove secondary element (A). Discard element.

4. Install new element.

5. Install primary element.

6. Install cover and secure with three latches.

7. Start engine and check air restriction light on the instrument panel to be sure there is no restriction.

If restriction indicator light is still on, see your Authorized John Deere Skid Steer Dealer.

8. Install left side engine panel, close engine cover, and rear service door.

Recommended Engine Coolant

The following John Deere coolants are preferred:

COOL-GARD PRE-DILUTED SUMMER COOLANT (TY16036).

COOL-GARD CONCENTRATED SUMMER COOLANT (TY16034).

If neither of the recommended coolants is available, use a glycol base coolant that meets the following specification:

ASTM D4985 (JDM H24A2).

Check container label before using to be sure it has the appropriate specifications for your machine. Use coolant with conditioner or add conditioner to coolant before using.

IMPORTANT: Avoid damage!

To prevent engine damage, do not use pure antifreeze or more than 50% antifreeze in the cooling system.

Do not mix or add any other types of additives other than John Deere Liquid Coolant Conditioner to the cooling system.


If using concentrate, mix approximately 50 percent antifreeze with 50 percent distilled or deionized water before adding to cooling system. This mixture will provide freeze protection to -37 C (-34 F).

Certain geographical areas may require lower temperature protection. See the label on your antifreeze container or consult your Authorized John Deere Skid Steer Dealer to obtain the latest information and recommendations.

Liquid Coolant Conditioner

The skid steer is designed with a wet sleeve block engine. John Deere Liquid Coolant Conditioner may be added for additional protection against rust and corrosion in the engine and to protect the cooling system. Other conditions may be used is they contain non-chromate inhibitors. Follow directions on the container.

Checking Coolant Level


MIF

c CAUTION: Avoid injury! The radiator will be hot and can burn skin. Built-up pressure may cause explosive release of coolant if the radiator cap is removed.

Check the coolant level by viewing coolant in the recovery tank.

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Allow engine to cool.

3. Open rear service door.


KV17701

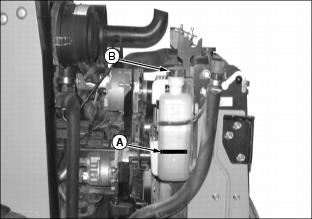

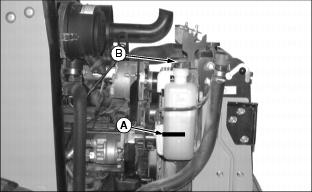

4. Check recovery tank coolant level. Coolant should be, at least, to the Add mark (A) on the tank.

5. Remove tank cap (B) if necessary to add coolant.

6. Install and tighten tank cap.

7. Close rear service door.

Servicing Cooling System

c CAUTION: Avoid injury! Explosive release of fluids from pressurized cooling system can cause serious burns:

Shut off engine.

Remove filler cap only when radiator is cool enough to touch with bare hands. Slowly loosen cap to the first stop to relieve pressure before removing completely.

Draining Cooling System

c CAUTION: Avoid injury! Allow engine to cool enough so that components can be touched with bare hands.

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Allow engine to cool.

3. Open rear service door and engine cover.

4. Remove left side panel.


KV17703

5. Slowly remove radiator cap (A).


KV15229

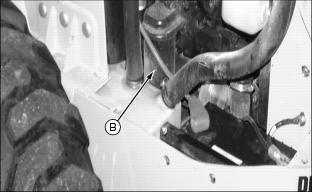

6. Remove access cover (B) on the left side of skid steer and locate coolant drain hose (C).


KV13939

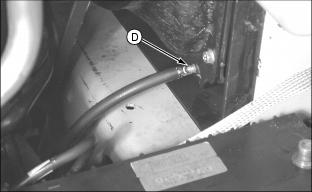

7. Open drain valve (D) and allow coolant to drain into a suitable container.

8. After coolant has drained, close radiator drain valve (D).

9. Flush cooling system.

Flushing Cooling System

IMPORTANT: Avoid damage! To prevent engine damage:

Do not pour water into a hot engine.

Do not operate engine without coolant.


1. Fill cooling system with clean water and John Deere Cooling System Cleaner, John Deere Cooling System Quick Flush, or an equivalent recommended for aluminum engines. Follow directions on the can.


KV17703

2. Install and tighten radiator cap (A).

3. Start and run engine until it reaches operating temperature.

c CAUTION: Avoid injury! Engine and coolant will be hot. Avoid contact with skin to prevent serious burns.

4. Stop engine.

5. Drain cooling system immediately before rust and dirt settle.


KV17701

6. Remove recovery tank:

Remove spring clip (B) to remove overflow hose from tank.

Remove tank.

Remove tank cap.

7. Clean tank.

8. Install tank and overflow hose.

9. Fill cooling system.

Filling Cooling System

NOTE: John Deere COOL-GARD coolant is recommended when adding new coolant to the cooling system.

Follow the directions on the container for correct mixture ratio.

IMPORTANT: Avoid damage! Using incorrect coolant mixture can damage the radiator:

Do not operate engine without coolant.

Do not operate engine with plain water.

Use antifreeze approved for use in aluminum engines.

Do not exceed a 50% antifreeze mixture for the coolant.

Do not pour coolant or water into the radiator when the engine is hot.


When operating engine in extremely cold temperatures, see your Authorized John Deere Skid Steer Dealer.

1. Open rear service door.

2. Check condition of coolant system hoses. If new hoses are needed, contact your Authorized John Deere Skid Steer Dealer.

3. Fill cooling system. Cooling system capacities are:

260 -- 10.6 L (11.2 qt.)

270 -- 13.4 L (14.2 qt.)

4. Install and tighten radiator cap.

5. Start engine and run until engine reaches operating temperature, allowing entire system to be filled with coolant.

6. Stop engine.

7. Allow engine to cool.


KV17701

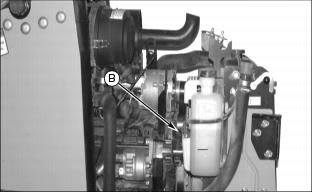

8. Check recovery tank coolant level, it should be at or above the Add level.

9. Remove cap (B) from recovery tank to add coolant if necessary. Install cap.

10. Tighten hose clamps as necessary.

11. Close rear service door.

Checking and Adjusting Fan Belt - Model 260

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Open rear service door and engine cover.

IMPORTANT: Avoid damage! To prevent damage to alternator, disconnect negative (-) battery cable when adjusting or replacing belt.

Make sure engine is off before adjusting fan belt.


3. Remove left side engine panel.


KV13990

4. Press lightly in the center of belt (A) between alternator and fan pulleys. Belt should deflect approximately 3 mm
(1/8 in.).

5. Replace belt if worn or damaged.

6. To adjust belt tension:

Disconnect negative (-) battery cable.


KV13991

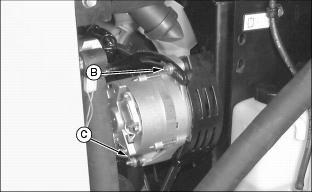

Loosen nuts (B) and (C) on alternator.

Pivot alternator toward engine to loosen belt and away from engine to tighten belt.

Tighten bolts.

7. Check belt tension again.

8. Connect battery cable.

9. Install left side engine panel, close engine cover, and rear service door.

Checking and Adjusting Fan Belt - Model 270

NOTE: The fan belt on the Model 270 Standard Flow below serial number -370103 and all Model 270 High Flows is self-adjusting.

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Open the rear service door and engine cover.

3. Remove left side engine panel.

IMPORTANT: Avoid damage! To prevent damage to alternator, disconnect negative (-) battery cable when adjusting or replacing belt.

Make sure engine is off before adjusting fan belt.



KV1013

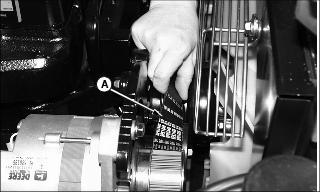

4. Twist the belt (A) with thumb and forefinger at the midpoint between the alternator and fan pulleys. The belt should twist between 75 and 85.

5. Replace belt if worn or damaged.

6. To adjust belt tension:

Disconnect negative (-) battery cable.


KV1012

Loosen bolt (B) and nut (C) on alternator.

Pivot alternator toward engine to loosen belt and away from engine to tighten belt.

Tighten bolt and nut.

7. Check belt tension again.

8. Connect battery cable.

9. Install left side engine panel, close engine cover and rear service door.

Replacing In-Line Fuel Filter

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Open rear service door and engine cover.

3. Remove right side engine panel.


KV0577

4. Disconnect electrical connector (A).

5. Loosen and slide hose clamps (B) away from fuel filter. Remove hoses.

6. Remove fuel filter (C).

7. Install new filter.

8. Install hoses and tighten clamps.

9. Connect electrical connector.

10. Install side panel, close engine cover, and rear service door.

Draining Fuel/Water Separator Filter

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Open rear service door and engine cover.

3. Remove right side engine panel.

4. Place a small container under fuel/water canister.


KV13055

5. Loosen valve (A) to drain fuel.

6. When fuel/water has stopped draining, tighten valve.

7. Dispose of fuel/water properly.

8. Close engine cover, and rear service door.

9. Prime the fuel system.

Changing Fuel/ Water Separator Filter

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Open rear service door and engine cover.

3. Remove right side engine panel.

4. Drain fuel/water separator.


KV13055

5. Rotate canister retaining ring (A) counterclockwise to remove canister (B).

6. Insert new canister by aligning location tabs and pushing up to seat canister. Tighten retaining ring clockwise by hand.

7. Close engine cover and rear service door.

8. Prime fuel system.

Priming Fuel System

The fuel system utilizes an automatic priming system.

To ensure that the fuel system is primed, turn the key switch to the run position and wait twenty (20) seconds before starting the engine.
