Assembly

OMM133615

Issue F7

Snowthrower

TRS 21 and 21E

PIN (170001 - )

Introduction

M73189

1. Remove the round-head screw and nut (A) from the shaft.

2. Put the chute crank rod through the bracket on the lower handlebar.

3. Install the chute crank on the shaft.

4. Line up the holes.

5. Install the screw and nut.

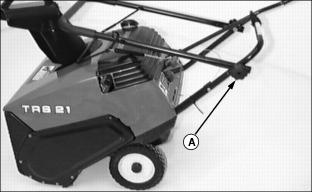

1. Remove packing from the handle on each side.

2. Straighten the upper handle.

M86445

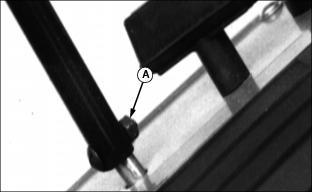

3. Tighten the knob (A) on each side.

M73509

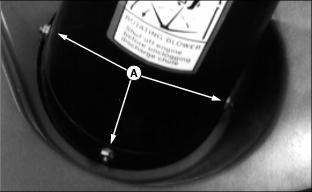

1. Remove the three hex-head bolts and lock nuts (A) from the chute base.

2. Install the chute with this hardware, as shown-the lock nuts to the outside.
