Removing

Park Vehicle Safely

ˇ Stop vehicle on a level surface, not on a slope.

ˇ Disengage PTO

ˇ Engage the park brake.

ˇ STOP the engine.

ˇ Remove the key.

ˇ Before you leave the operator's seat, wait for engine and all moving parts to STOP.

Avoid High Pressure Fluids


MIF

ˇ Hydraulic hoses can fail due to physical damage, kinks, age, and exposure. Check hoses regularly. Replace damaged hoses.

ˇ Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure.

ˇ Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

ˇ If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

Removing Snowblower

c CAUTION: Avoid injury! Escaping fluid under pressure can penetrate the skin causing serious injury.

ˇ Avoid the hazard by relieving pressure before disconnecting hydraulic lines.

ˇ MAKE SURE to tighten ALL connections before applying pressure.

1. STOP engine.

2. Disengage the PTO.

3. LOCK the park brake.

4. Remove the key.

5. Before you leave the operator's seat, wait for engine and all moving parts to stop.

6. Lower snowblower to the ground.

7. Remove all pressure from hydraulic lines by moving hydraulic control levers back and forth.


M47451

Picture Note: 400 Series Shown

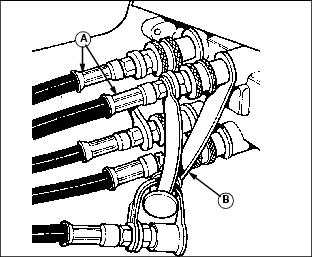

8. Disconnect snowblower hydraulic hoses (A) and put dust plug (B) on end of couplers.


M47638

9. 400 Series: Remove hoses from ring (C) on side of tractor.

NOTE: If the front hitch is being removed, the hydraulic cylinder lockout valve (D) must be in the open position. This will enable the mower and rear implement lift.


M55415

ˇ Locate hydraulic lockout valve (D) under the left foot rest.

ˇ Turn valve T-handle counterclockwise until tight.


M60464

ˇ F900 Series: Remove snowblower hoses from pigtail (E).

M47451

Picture Note: 400 Series Shown

10. Disconnect dust plugs (F) from hoses (G) for "Angling Kit" and connect hoses to tractor. (See decal on tractor platform for reference.)

11. Disconnect driveline.


M58976

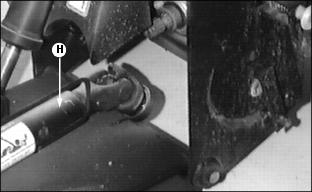

ˇ 300 Series, 400 Series, 420, and 430: Disconnect driveline (H) from tractor.

M58995

ˇ F900 Series: Disconnect driveline (I) from hitch.

M58998

12. 400 Series: Put driveline on PTO rod support (J). (Make sure support is on the inside of the left-hand side of driveshaft shield.)

M58999 M60460

ˇ F900 Series: Put driveline on PTO rod support (K). (Make sure support is on the outside of the right-hand side of driveshaft shield.)

M60480

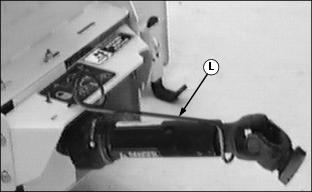

ˇ 300 Series, 420 and 430: Put driveline on PTO rod support (L).

M55256

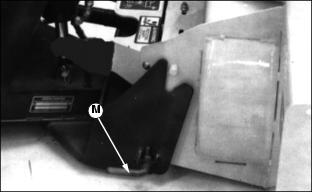

13. Put lever (M) in the UNLATCHED position shown.

14. Lower hitch.

15. Slowly back tractor away from snowblower.

c CAUTION: Avoid injury! To help prevent injury:

When the snowblower is removed, you MUST also remove any weights that were added to the tractor.

16. Remove any weights that were installed when preparing the tractor. (See Preparing the Vehicle section.)
