Preparing Vehicle

OMM123336

Issue C6

Snowblowers

47 and 59-Inch for 55 Series Tractors, 670 and 770 Tractors

Introduction

c CAUTION: Avoid injury!

When the snowblower is removed, you MUST also remove any weights that were added to the tractor.

M43032

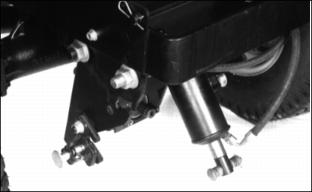

INSTALL FRONT ATTACHING KIT:

BM16492 for 55 Series Tractors;

BM16855 for 670 and 770,

and FRONT PTO KIT:

BM16494 for 55 Series Tractors;

BM16856 for 670 and 770.

(See your John Deere dealer for kits.) Installation instructions are furnished with the kits.

855 AND 955 TRACTORS:

Put wheels in the NARROW position. (See your tractor operator's manual.)

M39591

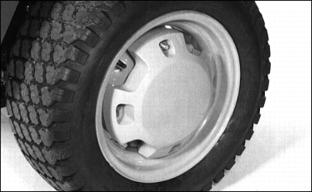

Tractor may need weights and tire chains to control rear wheel slip and make tractor more stable. (See your John Deere dealer for availability).

Two 27 kg (60 lb) wheel weights may be used on each wheel.
