Operating
Operate Safely
ˇ Check vehicle brake action before you operate. Adjust or service brakes as necessary.
ˇ Inspect machine before you operate. Be sure hardware is tight. Repair or replace damaged, badly worn, or missing parts. Be sure guards and shields are in good condition and fastened in place. Make any necessary adjustments before you operate.
ˇ Clear work area of objects that might be thrown. Keep people and pets out of the work area. Stop machine if anyone enters the area.
ˇ If you hit an object, stop the machine and inspect it. Make repairs before you operate. Keep machine properly maintained and in good working order.
ˇ DO NOT leave machine unattended when it is running.
ˇ Only operate during daylight or with good artificial light.

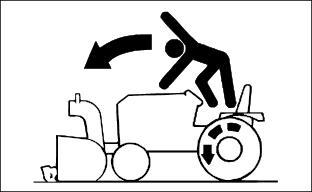

ˇ DO NOT let anyone, especially children, ride on machine or vehicle.
ˇ DO NOT let children or an untrained person operate machine.
ˇ Do not wear radio or music headphones while operating the machine. Safe operation requires your full attention.
ˇ Do not blow snow toward people, pets, vehicles or buildings.

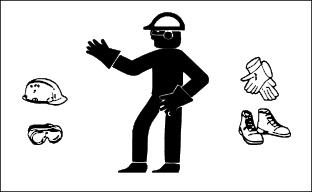

Wear Appropriate Clothing
ˇ Wear close fitting clothing and safety equipment appropriate for the job.
ˇ Loud noise can cause impairment or loss of hearing, wear a suitable protective device such as earplugs.

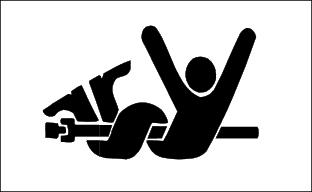

Stay Clear of Rotating Drivelines
Entanglement in rotating driveline can cause serious injury or death:
ˇ Wear close fitting clothing.
ˇ STOP the engine and be sure PTO driveline is stopped before getting near it.
Avoid Injury from Moving Parts

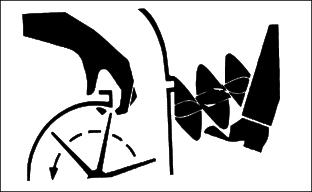

ˇ Keep hands, feet and clothing away from snowthrower and discharge chute when auger is turning.
ˇ Stop auger when you are not throwing snow.
ˇ Stop vehicle engine before you unplug, repair, or adjust snowthrower.
Avoid Injury from Hitting Obstructions
ˇ Raise snowthrower when you drive between jobs.
ˇ Slow down when you remove snow.

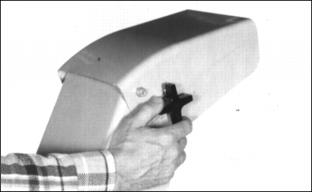

Adjusting Spout
c CAUTION: Avoid injury! Before you adjust spout:
|
NOTE: When you blow snow from a rough surface, adjust spout to point down so gravel or other surface material is not thrown a long distance.
2. Move spout to desired position.

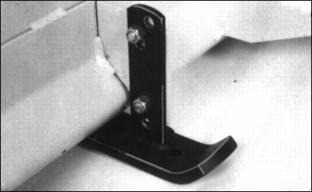

Adjusting Height of Scraper Blade
2. Pull hydraulic lever back to raise snowblower.

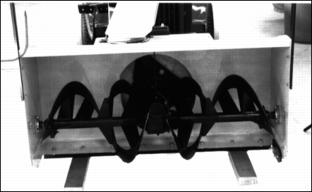

3. Put blocks under scraper blade on each side.
4. Lower snowblower onto blocks.
NOTE: Both runners must be in the same position.
6. Remove two bolts from each runner.

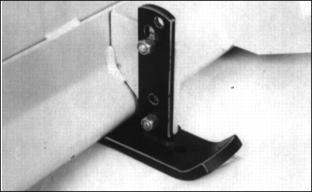

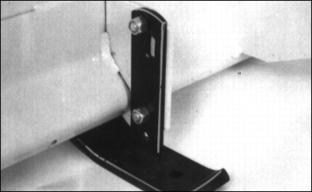

7. Put bolts in one of the following positions:
ˇ LOW POSITION: Scraper bladewill touch surface.
ˇ MID POSITION: Scraper blade will be approximately 13 mm (1/2 in.) above surface.
ˇ HIGH POSITION: Turn runner 180°. Scraper blade will be approximately 25 mm (1 in.) above surface.
8. Install nuts but do not tighten.
9. START engine. Raise snowblower.
10. STOP engine. Remove blocks. Lower snowblower to ground.

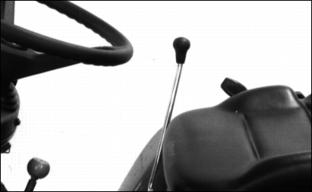

Raising and Lowering Snowblower

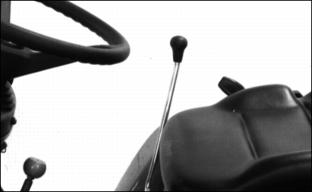

1. Pull SCV lever to raise snowblower.
2. Push SCV lever forward to lower snowblower.
3. Push control lever all the way forward to float position. Lever will stay in this position until you pull it back to neutral position.
Picture Note: 670 and 770 Tractor
4. Float position allows snowblower to follow contours of ground.

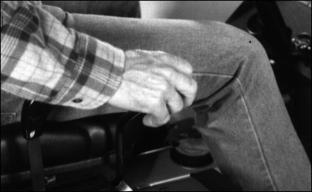

Turning Chute
1. Push SCV lever to right to turn chute to right.
Picture Note: 670 and 770 Tractor
2. Pull SCV to left to turn lever to left.
3. Chute should turn 100° to each side.
Starting Snowblower
NOTE: See your tractor operator's manual for location and operation of controls.
Picture Note: 670 and 770 Tractor

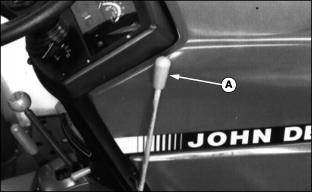

2. Move throttle lever (A) to one-fourth engine speed position.
3. Lower snowblower to ground.

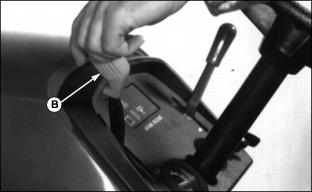

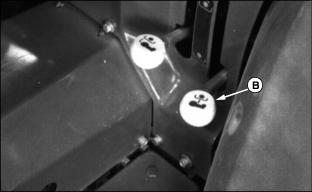

4. Move PTO lever (B) to ON position to ENGAGE snowblower.
Picture Note: 670 and 770 Tractor
5. Move throttle lever to FAST position for best engine and snowblower performance.
|
c CAUTION: Avoid injury! Be sure area is clear before you begin snowblowing.
|
8. Blow snow at a safe travel speed.
Stopping Snowblower
NOTE: If engine and snowblower are running, snowblower must stop when you get off operator's seat. If not, have the electrical system checked.
2. Put PTO lever in OFF position.
4. Wait for auger and blower to stop.
5. Lower snowblower to ground.
Snowblowing Tips
Operate engine at full throttle.
Operate tractor at a safe travel speed.
Slow down when you operate on slopes, before you make a turn, and when you operate close to buildings or trees.
For snowblowing in drifts, drift blade will cut through drifted snow and help break down drifts.
Blow snow downwind, if possible.
Put hydraulic control lever forward to float position when you are snowblowing on irregular ground.
Adjust runners for proper scraper blade clearance before you remove snow from irregular ground.
Travel slow when blowing wet, heavy snow to prevent plugging.
Clean snowblower after each use.
Look carefully behind tractor before you back up, especially for children.
Raise snowblower when driving between jobs.
Do not try to clear snow from a steep slope.
Do not operate near edge of a ditch, or bank. Keep away from drop-offs, holes, rocks, and roots. Watch for hidden hazards.
