Specifications

OMM134969

Issue K7

Compact Utility Tractor with Hydrostatic Transmission

Model 4100 PIN (110001 - )

Specifications

Tires (Wheel Position)

Dimensions (With Applicable Tires)

Height From Ground (With Applicable Tires)

Wheel Treads (center to center) (With Applicable Tires)

Turning Radius (With Applicable Tires)

Recommended Lubricants

Metric Bolt and Cap Screw Torque Values

Unified Inch Bolt and Cap Screw Torque Values

Specifications

Engine

ake Yanmar

Model Number 3TNE74-JK2

Type Diesel

Horsepower 14.9 kW ((20 hp)

PTO Horsepower 11.9 kW ( (16 hp)

Rated Engine Speed 2650 rpm

Operating Range 1025-2850 rpm

Engine Torque @ Rated Speed missing (39.7-ft.lb.

Displacement 1.0 L ( (61.4 cu.in.)

Cylinders Three

Bore and Stroke 74x78 mm ((2.91x3.07 in.)

Compression Ratio 23.5:1

Lubrication Pressurized

Oil Filter Standard Single Element

Air Cleaner Dry-Type w/ Safety Element

Electrical System

Type 12 Volt

Battery Size 433 Cold Cranking Amps @ -18°C

Alternator 20 Amp

Starter Size 1.1 kW ( (1.5 hp)

Fuel System

Fuel See Fuel in the Service Miscellaneous section

Fuel Filter Replaceable Element

Fuel Pump In-Line with Electric Shutoff

Fuel Delivery Indirect Injection-Self Bleeding

Fuel Tank Capacity 22 L ((5.8 gal.)

Drive Train

Transmission Hydrostatic-2-range

Number Of Speeds Infinite

Final Drive Spur Gear

Brakes Wet Disk

Steering Power

Drawbar Tongue Weight Capacity 259 kg ((570 lb.)

Axle Capacity (in operation)-Front 450-500 kg ((992-1102 lb.)

Axle Capacity (in operation)-Rear 900-1000 kg ((1984-2205 lb.)

Hydraulic System

Type Open Center

Working Pressure 16671 kPa ( (2418 psi)

Pump Gear

Pump Capacity (main) @ rated engine speed 19.4 lpm ((5.1 gpm)

Total Flow of Pumps @ rated engine speed 19.4 lpm ((5.1 gpm)

3-Point Hitch

Type Category 1

Lift Capacity (24-in. behind link arms) 422 kg ( (930 lb.)

Dimension-Ball Socket ID 22 mm ((7/8 in.)

Dimension-Pin Hole ID 19 mm ((3/4 in.)

Dimension-Width @ Hitch Pins 660 mm ((26 in.)

Dimension-Height From Center Pin To Hitch Pin 457 mm ((18 in.)

PTO

Type Independent

Speed (PTO rpm @ 2650 engine rpm)-Mid 2117 rpm

Speed (PTO rpm @ 2650 engine rpm)-Rear 545 rpm

Clutch Hydraulic Multi-Disk

Brake Hydraulically engaged mid and rear PTO brake

Fluid Capacities

Fuel Tank 22 L ( (5.8 gal.)

Cooling System 2.4 L ((2.5 qt.)

Crankcase w/ Filter 2.7 L ( (2.8 qt.)

Transmission and Hydraulic System 12.5 L ( (3.3 gal.)

Front Axle Gearcase 3.4 L ((3.6 qt.)

Weight

Tractor weight including fuel,oil, coolant and R1 tires 710 kg (1565 lbs.)

Ground Speeds

Forward High 0-17.1 km/h ((0-10.6 mph)

Forward Low 0-9.3 km/h ( (0-5.8 mph)

Reverse Low and High 0-8.5 km/h ( (0-5.3 mph)

Tires (Wheel Position)


	R1 Bar Tires	R2 Industrial Tires	R3 Turf Tires
Rear	9.5-16 (Std.) (2 position)	12x16.5 (1 position)	315x75D-15 (2 position)
Front	5.00-12 (1 position)	23x8.50-12 (1 position)	23x8.50-12 (1 position)

Dimensions (With Applicable Tires)


	R1 Bar Tires	R2 Industrial Tires	R3 Turf Tires
Wheelbase	1473 mm (58 in.)	1473 mm (58 in.)	1473 mm (58 in.)
Overall length w/ 3-point hitch	2616 mm (103 in.)	2616 mm (103 in.)	2616 mm (103 in.)
Overall width (min)	1093 mm (43 in.)	1192 mm (46.9 in.)	1196 mm (47 in.)
Overall width (max)	1211 mm (47.6 in.)	N/A	1196 mm (47 in.)
Inside width (min)	607 mm (23.9 in.)	N/A	563 mm (22.2 in.)
Inside width (max)	725 mm (28.5 in.)	568 mm (22.4 in.)	563 mm (22.2 in.)

Height From Ground (With Applicable Tires)


	R1 Bar Tires	R2 Industrial Tires	R3 Turf Tires
To top of hood	1108 mm (43.6 in.)	1098 mm (43.2 in.)	1098 mm (43.2 in.)
To top of ROPS	2003 mm (78.9 in.)	1995 mm (78.5 in.)	1998 mm (78.6 in.)
Ground clearance, front axle	323 mm (12.7 in.)	323 mm (12.7 in.)	313 mm (12.3 in.)

Wheel Treads (center to center) (With Applicable Tires)


	R1 Bar Tires	R2 Industrial Tires	R3 Turf Tires
Rear wheels	850-968 mm (33.4-38.1 in.)	903 mm (34.6 in.)	880 mm (35.5 in.)
Front wheels	790 mm (31.1 in.)	878 mm (34.5 in.)	878 mm (34.5 in.)

Turning Radius (With Applicable Tires)


	R1 Bar Tires	R2 Industrial Tires	R3 Turf Tires
With brakes	2.0 m (6.7 ft.)	2.2 m (7.2 ft)	2.2 m (7.2 ft.)
Without brakes	2.3 m (7.7 ft.)	2.3 m (7.7 ft.)	2.3 m (7.7 ft.)

Recommended Lubricants

Engine Oil John Deere PLUS-50-SAE15W-40®TORQ-GARD SUPREME®-SAE5W-30

Grease John Deere NON-CLAY HIGH Temperature EP®-JDM J13E4, NLGI Grade 2

Transmission Oil Low Viscosity HY-GARD (JDM J20D)®

Front Axle Oil GL-5 Gear LUBRICANT®-SAE 80W-90

(Specifications and design subject to change without notice.)

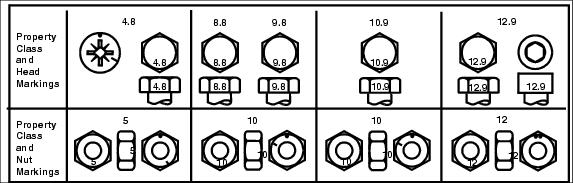

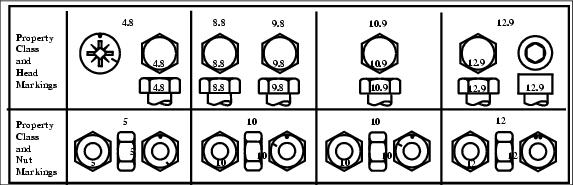

Metric Bolt and Cap Screw Torque Values

MIF


	Class 4.8				Class 8.8 or 9.8
	Lubricateda		Drya		Lubricateda		Drya
Size	N·m	lb-ft	N·m	lb-ft	N·m	lb-ft	N·m	lb-ft
M6	4.8	3.5	6	4.5	9	6.5	11	8.5
M8	12	8.5	15	11	22	16	28	20
M10	23	17	29	21	43	32	55	40
M12	40	29	50	37	75	55	95	70
M14	63	47	80	60	120	88	150	110
M16	100	73	125	92	190	140	240	175
M18	135	100	175	125	260	195	330	250
M20	190	140	240	180	375	275	475	350
M22	260	190	330	250	510	375	650	475
M24	330	250	425	310	650	475	825	600
M27	490	360	625	450	950	700	1200	875
M30	675	490	850	625	1300	950	1650	1200
M33	900	675	1150	850	1750	1300	2200	1650
M36	1150	850	1450	1075	2250	1650	2850	2100

MIF


	Class 10.9				Class 12.9
	Lubricateda		Drya		Lubricateda		Drya
Size	N·m	lb-ft	N·m	lb-ft	N·m	lb-ft	N·m	lb-ft
M6	13	9.5	17	12	15	11.5	19	14.5
M8	32	24	40	30	37	28	47	35
M10	63	47	80	60	75	55	95	70
M12	110	80	140	105	130	95	165	120
M14	175	130	225	165	205	150	260	109
M16	275	200	350	225	320	240	400	300
M18	375	275	475	350	440	325	560	410
M20	530	400	675	500	625	460	800	580
M22	725	540	925	675	850	625	1075	800
M24	925	675	1150	850	1075	800	1350	1000
M27	1350	1000	1700	1250	1600	1150	2000	1500
M30	1850	1350	2300	1700	2150	1600	2700	2000
M33	2500	1850	3150	2350	2900	2150	3700	2750
M36	3200	2350	4050	3000	3750	2750	4750	3500

DO NOT use these values if a different torque value or tightening procedure is given for a specific application. Torque values listed are for general use only and include a 10% variance. Check tightness of fasteners periodically. DO NOT use air powered wrenches.

Shear bolts are designed to fail under predetermined loads. Always replace shear bolts with identical grade.

Fasteners should be replaced with the same grade. Make sure fasteners threads are clean and that you properly start thread engagement. This will prevent them from failing when tightening.

When bolt and nut combination fasteners are used, torque values should be applied to the NUT instead of the bolt head.

Tighten toothed or serrated-type lock nuts to the full torque value.

a "Lubricated" means coated with a lubricant such as engine oil, or fasteners with phosphate and oil coatings. "Dry" means plain or zinc plated without any lubrication.

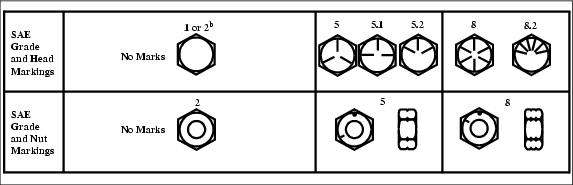

Unified Inch Bolt and Cap Screw Torque Values

MIF


	Grade 1				Grade 2b
	Lubricateda		Drya		Lubricateda		Drya
Size	N·m	lb-ft	N·m	lb-ft	N·m	lb-ft	N·m	lb-ft
1/4	3.7	2.8	4.7	3.5	6	4.5	7.5	5.5
5/16	7.7	5.5	10	7	12	9	15	11
3/8	14	10	17	13	22	16	27	20
7/16	22	16	28	20	35	26	44	32
1/2	33	25	42	31	53	39	67	50
9/16	48	36	60	45	75	56	95	70
5/8	67	50	85	62	105	78	135	100
3/4	120	87	150	110	190	140	240	175
7/8	190	140	240	175	190	140	240	175
1	290	210	360	270	290	210	360	270
1-1/8	470	300	510	375	470	300	510	375
1-1/4	570	425	725	530	570	425	725	530
1-3/8	750	550	950	700	750	550	950	700
1-1/2	1000	725	1250	925	990	725	1250	930

MIF


	Class 10.9				Class 12.9
	Lubricateda		Drya		Lubricateda		Drya
Size	N·m	lb-ft	N·m	lb-ft	N·m	lb-ft	N·m	lb-ft
1/4	9.5	7	12	9	13.5	10	17	12.5
5/16	20	15	25	18	28	21	35	26
3/8	35	26	44	33	50	36	63	46
7/16	55	41	70	52	80	58	100	75
1/2	85	63	110	80	120	90	150	115
9/16	125	90	155	115	175	130	225	160
5/8	170	125	215	160	215	160	300	225
3/4	300	225	375	280	425	310	550	400
7/8	490	360	625	450	700	500	875	650
1	725	540	925	675	1050	750	1300	975
1-1/8	900	675	1150	850	1450	1075	1850	1350
1-1/4	1300	950	1650	1200	2050	1500	2600	1950
1-3/8	1700	1250	2150	1550	2700	2000	3400	2550
1-1/2	2250	1650	2850	2100	3600	2650	4550	3350

Shear bolts are designed to fail under predetermined loads. Always replace shear bolts with identical grade.

Fasteners should be replaced with the same grade. Make sure fasteners threads are clean and that you properly start thread engagement. This will prevent them from failing when tightening.

Tighten toothed or serrated-type lock nuts to the full torque value.

a"Lubricated" means coated with a lubricant such as engine oil, or fasteners with phosphate and oil coatings. "Dry" means plain or zinc plated without any lubrication.

b"Grade 2" applies for hex cap screws (not hex bolts) up to 152 mm (6-in.) long. "Grade 1" applies for hex cap screws over 152 mm (6-in.) long, and for all other types of bolts and screws of any length.
