OMM134969

Issue K7

Compact Utility Tractor with Hydrostatic Transmission

Model 4100 PIN (110001 - )

Introduction

Safety Signs

Controls

Operator Station Controls

Instrument Panel

Hood Controls

3-Point Hitch

Operating Machine

Replacement Parts

Service Machine Safely

Service Interval Chart

Service Engine

Service Transmission

Service Electrical

Service Miscellaneous

Troubleshooting

Storing Machine

Assembly

Specifications

Warranty

John Deere Service Literature

John Deere Quality Statement

Copyright© Deere & Company

Controls

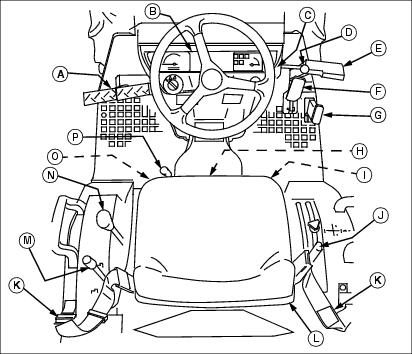

Operator Station Controls

MIF

A - Brake Pedals

B - Instrument Panel

C - Key Switch

D - Throttle

E - Service-Park Brake Pedal

F - Forward Travel Pedal

G - Reverse Travel Pedal

H - Speed of Drop / Lock Valve

I - Operator Seat Adjustment Lever

J - Depth Control Lever

K - Seat Belt

L - Operator Seat

M - Power Take Off (PTO) Lever

N - 2-Speed Range Lever

O - Differential Lock Lever

P - Four Wheel Drive (4WD) Lever

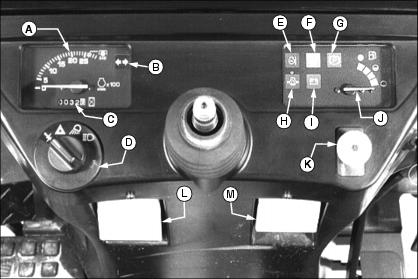

Instrument Panel

NOTE: Steering wheel removed for clarity of photo.

M88253

A - Tachometer

B - Light - Warning Flasher Lamps

C - Hour Meter

D - Light Switch

E - Light - Engine Coolant Temperature

F - Light - PTO Engage

G - Light - Parking Brake Set

H - Light - Engine Oil Pressure

I - Light - Battery Charging

J - Fuel Gauge

K - Power Take Off (PTO) Switch

L - Park Brake Lever

M - Cruise Control Lever

Hood Controls

M88250

A - Hood Release

B - Hood Support

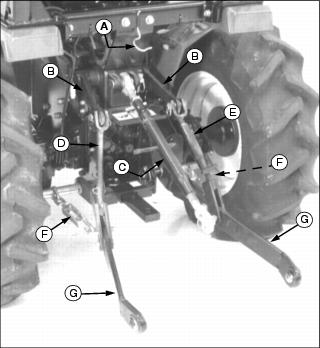

3-Point Hitch

M88251

A - Center Link Storage Hook

B - Lift Arms

C - Center Link

D - Lift Link - Solid

E - Lift Link - Adjustable

F - Sway Links

G - Draft Links
