Operating

Tractor Trunk Load Capacities

IMPORTANT: Avoid damage! Do not exceed recommended weight for rear ballast. Using tractor trunk maximum load as ballast can damage transmission.


SST LAWN TRACTORS

45 kg (100 lb) Maximum Load

STX LAWN TRACTORS

54 kg (120 lb) Maximum Load

LT AND LX LAWN TRACTORS; GT SERIES AND 325, 345 LAWN AND GARDEN TRACTORS

68 kg (150 lb) Maximum Load


Using Tractor Trunk Latch Lever (SST Lawn Tractors)

c CAUTION: Avoid injury! Never carry riders in or on carrier. Keep feet clear when dumping.

1. Park tractor safely. (See Parking Safely in the SAFETY section.)

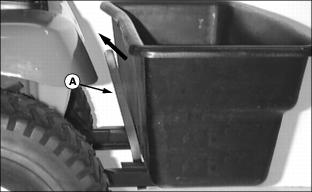

MX7464

2. Pull latch lever (A) toward tractor to release tractor trunk and dump load.

IMPORTANT: Avoid damage! Do not push or level dumped load with tractor trunk in dumped position.

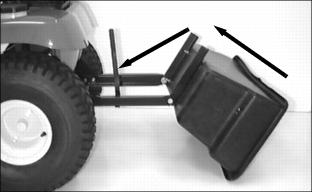

MX7465

3. When tractor trunk is emptied, raise trunk and lock into position on support frame.

Using Tractor Trunk Latch Lever (LT, LX, STX, and GT Series Tractors)

c CAUTION: Avoid injury! Never carry riders in or on carrier. Keep feet clear when dumping.

1. Park tractor safely. (See Parking Safely in the SAFETY section.)

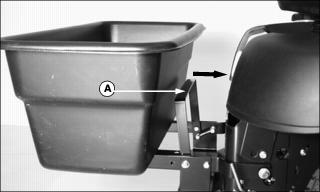

M88539

2. Push latch lever (A) inward toward right of tractor to release tractor trunk and dump load.

IMPORTANT: Avoid damage! Do not push or level dumped load with tractor trunk in dumped position.

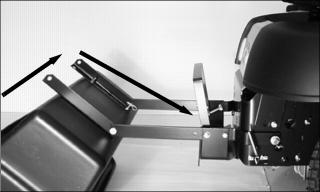

M88540

3. When tractor trunk is emptied, raise trunk and lock into position on support frame.
