Service Miscellaneous

Filling Fuel Tank

Use regular grade 87 octane unleaded fuel.

Add John Deere fuel stabilizer to fuel before using it in your machine to prevent engine damage due to stale fuel. Follow directions on stabilizer container.

c CAUTION: Avoid injury! Fuel vapors are explosive and flammable:

· Shut engine off before filling fuel tank.

· Do not smoke while handling fuel.

· Keep fuel away from flames or sparks.

· Keep fuel tank outdoors or in well ventilated area.

· Clean up spilled fuel immediately.

· Use clean approved non-metal container to prevent static electric discharge.

· Use clean approved plastic funnel without screen or filter to prevent static electric discharge.

IMPORTANT: Avoid damage! Dirt and water in fuel can cause engine damage:

· Clean dirt and debris from the fuel tank opening.

· Use clean, fresh, stabilized fuel.

· Fill the fuel tank at the end of each day's operation to keep condensation out of the fuel tank.

· Use a non-metallic funnel with a plastic mesh strainer when filling the fuel tank or container.


1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Allow machine to cool for several minutes.

3. Lift seat.

4. Remove grass clippings and other debris from tank area.


MX8335

5. Remove fuel tank cap (A).

6. Fill tank with fuel only to bottom of filler neck.


MX8346

7. Remove and clean tank strainer (B) if necessary.

8. Install fuel tank cap.

Checking Wheel Bolt Torque

NOTE: Check wheel bolt torque often during the first 100 hours of operation.


M57292

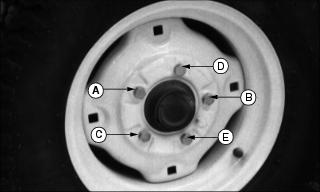

Tighten rear wheel bolts evenly in proper sequence (A), (B), (C), (D), and (E) until snug. Finish tightening to 88 N·m (65 lb-ft).

Removing and Installing Hood

Removing Hood

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Raise the hood.


MX8371

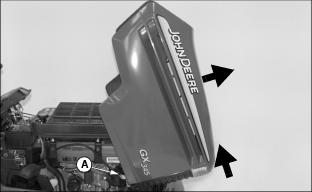

3. Disconnect headlight wiring harness (A).

4. Lift and pull hood away from machine.

Installing Hood

IMPORTANT: Avoid damage! Use care not to pinch or scrape headlight harness when installing hood.



M96024 M96025

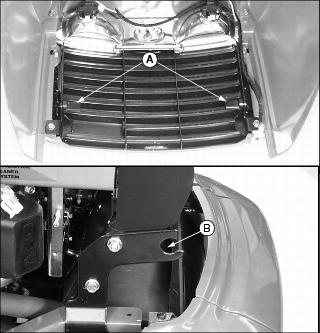

1. Align hood pivot studs (A) with pivot brackets (B) and install hood.

2. Connect wiring harness.

3. Close hood.

Cleaning and Repairing Plastic Surfaces

Your John Deere dealer has the professional materials needed to properly remove surface scratches from plastic surfaces, do not attempt to paint over marks or scratches on plastic parts.

IMPORTANT: Avoid damage! Improper care of machine plastic surfaces can damage that surface:

· Do not wipe plastic surfaces when they are dry. Dry wiping will result in minor surface scratches.

· Use a soft, clean cloth (bath towel, diaper, automotive mitt).

· Do not use abrasive materials, such as polishing compounds, on plastic surfaces.

· Do not spray insect repellent near machine.


1. Rinse hood and entire machine with clean water to remove dirt and dust that may scratch the surface.

2. Wash surface with clean water and a mild liquid automotive washing soap.

3. Dry thoroughly to avoid water spots.

4. Wax the surface with a liquid automotive wax. Use products that specifically say "contains no abrasives."

IMPORTANT: Avoid damage! Do not use a power buffer to remove wax.


5. Buff applied wax by hand using a clean, soft cloth.

Cleaning and Repairing Metal Surfaces

Cleaning

Follow automotive practices to care for your vehicle painted metal surfaces. Use a high-quality automotive wax regularly to maintain the factory look of your vehicle's painted surfaces.

Repairing Minor Scratches (surface scratch)

1. Clean area to be repaired thoroughly.

IMPORTANT: Avoid damage! Do not use rubbing compound on painted surfaces.


2. Use automotive polishing compound to remove surface scratches.

3. Apply wax to entire surface.

Repairing Deep Scratches (bare metal or primer showing)

1. Clean area to be repaired with rubbing alcohol or mineral spirits.

2. Use paint stick with factory-matched colors available from your John Deere dealer to fill scratches. Follow directions included on paint stick for use and for drying.

3. Smooth out surface using an automotive polishing compound. Do not use power buffer.

4. Apply wax to surface.
