Service Lubrication


IMPORTANT: Avoid damage! Use recommended John Deere greases to avoid component failure and premature wear. The recommended John Deere greases are effective within an average air temperature range of -29 to 135 degrees C (-20 to 275 degrees F). If operating outside that temperature range, contact your Servicing dealer for a special-use grease.

The following greases are preferred:

· John Deere Multi-Purpose SD Polyurea Grease

· John Deere Multi-Purpose HD Lithium Complex Grease

· John Deere Moly High Temperature EP Grease

If not using any of the preferred greases, be sure to use a general all-purpose grease with an NLGI grade No.2 rating.

Wet or high speed conditions may require use of a special-use grease. Contact your Servicing dealer for information.

Lubricating Front Axle and Axle Pivot

c CAUTION: Avoid injury! Do not work under a raised machine unless it is safely supported. A machine that slips and falls off a jack could cause serious injury or death.

1. Raise front of machine with a safe lifting device so front wheels are slightly off the ground.

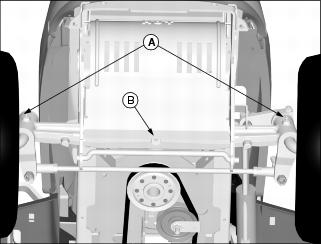

MX8330

2. Lubricate front spindles (A) and axle pivot (B) with recommended grease.

3. Turn steering wheel back and forth to distribute grease in spindles.

4. Lower machine to the ground.

5. Remove lifting device.

Lubricating Blade Spindles

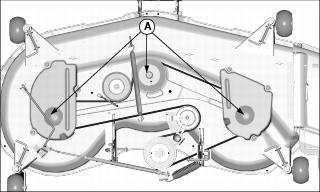

MX8378

Lubricate three spindles (A) with recommended grease.

Lubricating Mower Wheels

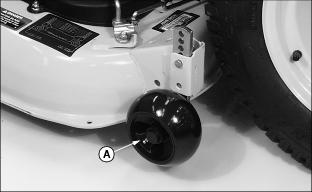

M96021

Lubricate mower wheel grease fittings (A).

· 48C Mower - Rear wheels only.

· 54C Mower - Front and rear wheels.
