Removing
Remove POWER FLOW

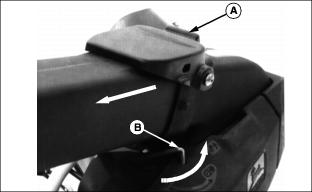

1. Push down on discharge guard hand-hold (A) to unlatch. Remove chute from POWER FLOW outlet. Guard will shut and latch.
2. Rotate belt tension lever (B) to "release belt tension position" symbol on blower cover.
3. Lift plastic belt shield on mower. Remove belt from double sheave. Close plastic shield and snap shut.

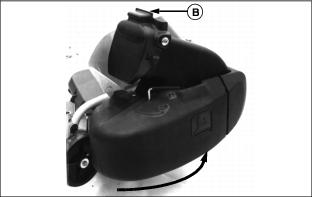

4. Push lever IN to unlock (unlatch) POWER FLOW from mower. Swing blower away from mower using hand grip (B), while guiding hinged discharge chute down.
5. Lift blower at handle on discharge guard. Remove blower from mower.

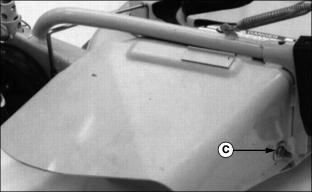

6. Fasten discharge chute on both sides with M10 hardware (C), removed when PREPARING MOWER.
