Preparing Vehicle
Remove Mower
Before installing snowthrower on Front Mower, REMOVE MOWER. (See your Front Mower operator's manual.):
Front Mower Requirements
c CAUTION: Avoid injury!
When the snowthrower is removed, you MUST also remove any weights that were added to the Front Mower. |

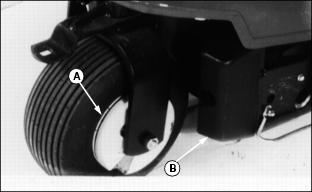

1. Rear wheel weights (A) and frame weights (B).
NOTE: Rear wheel weights and frame weights are standard equipment.
2. The following OPTIONAL EQUIPMENT is recommended: (See Operating section.)
ˇ TIRE CHAINS: Drive wheels must be in the WIDE position. Flipping over wheels will increase or decrease distance between drive wheels.
ˇ FRONT WHEEL WEIGHTS: Drive wheels should be in the WIDE position. Flipping over wheels will increase or decrease distance between drive wheels.
