Service Steering & Brakes
Grease

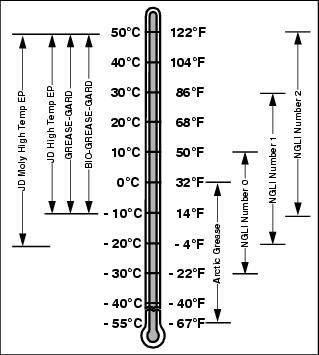

Use grease based on the expected air temperature range during the service interval.
The following greases are preferred:
ˇ John Deere Moly High Temperature EP Grease.
ˇ John Deere High Temperature EP Grease.
Other greases may be used are:
ˇ SAE Multipurpose EP Grease with 3 to 5 percent molybdenum disulfide.
ˇ Greases meeting Military Specification MIL-G-10924C may be used as arctic grease.
Lubricate Pivot Points
Lubricate the following points with John Deere multipurpose grease or an equivalent.
Lubricate Steering Cylinder And Tie Rod

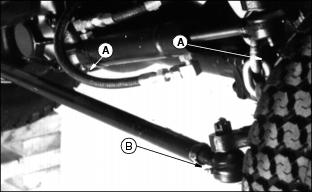

Lubricate steering cylinder (A) in two places and tie rod (B) with John Deere multipurpose grease or an equivalent.
Adjusting Turn Brake
ˇ Adjust brakes when they are uneven or do not respond. When brakes cannot be adjusted by turning the turnbuckle, see your John Deere dealer.

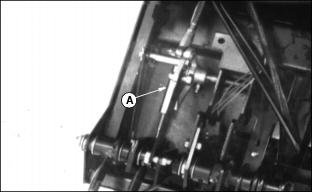

ˇ Adjust right turnbuckle (A) for right brake. Adjust left turnbuckle (A) for left brake.
