Storing Vehicle

Storing Safety

c CAUTION: Avoid injury! Engine exhaust fumes can cause sickness or death. · If it is necessary to run an engine in an enclosed area, use an exhaust pipe extension to remove the fumes. Always try to work in a well ventilated area. · DO NOT store vehicle with fuel in the tank inside a building where fumes may reach an open flame or spark. · Allow engine to cool before storing in any enclosure. · Remove the battery and store it in a cool dry place where it will not freeze, and where children cannot reach it.

Storing Machine

1. Remove the battery:

· Clean it. Check the electrolyte level. (See Checking Battery Electrolyte Level in the Service - Electrical section.)

· Charge the battery. (See Charging Battery in the Service - Electrical section.)

· Store the battery in a cool, dry place where it will not freeze.

2. Repair worn or damaged parts. Replace parts if necessary. Tighten loose hardware.

3. Wash the machine.

4. Paint scratched or chipped areas to prevent rust.

5. Lubricate grease points.

6. Release hydraulic pressure: Move hydraulic control lever back and forth.

7. Store the vehicle in a dry, protected place. If vehicle is stored outside, put a waterproof cover over it.

8. Put blocks or support stands under vehicle to take weight off tires. Let 1/3 of air out of the tires.

Removing Machine From Storage

M33418

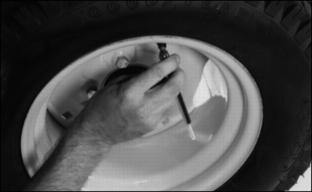

1. Check tire pressure and fill tires with air. (See Checking Tire Pressure in Service - Miscellaneous section.)

2. Take machine off of blocks or support stands.

3. Fill fuel tank. Open fuel shut-off valve. Check engine oil level.

4. Check battery electrolyte level. Charge battery if necessary. Install battery.

M33906

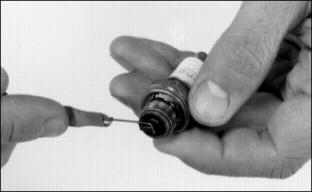

5. Check spark plug gap. Install and tighten plugs to 20 N·m (15 lb-ft).

6. Lubricate all grease points.

7. Check transmission oil level.

8. Run the engine 5 minutes with no engine load.

9. Be sure all shields and guards are in place.
