Specifications
Engine
Model
|
Yanmar
|
Engine Model Number
|
3TNE78A-JFM
|
Horsepower
|
20.9 kW (28@3200 rpm)
|
Cylinders
|
3
|
Cycle
|
4
|
Displacement
|
1204 cm (73.5 cu.in.)
|
Bore/Stroke
|
78 x 84 mm (3.07 x 3.11 in.)
|
Compression Ratio
|
17.8:1
|
Torque (ft-lbs)
Operating (3200 rpm)
|
46
|
Torque (ft-lbs)
Operating (2200 rpm)
|
55
|
Lubrication
|
Pressurized
|
Injection
|
Direct
|
Air Cleaner
|
Dual element dry-type
|
Air Restriction Indicator
|
Progressive-Type
|
Cooling Capacity
|
7.6 L (8 U.S. qt.)
|
Fuel System
Fuel
|
Diesel
|
Capacity
|
41.6 L (11.0 U.S. gal.)
|
Fuel Pump Type
|
Mechanical
|
Fuel Tank Location
|
Right and left side of machine
|
Drive Train
Transmission Type
|
Hydrostatic
|
Transaxle Type
|
Dual range
|
Travel Speeds @ 3400 rpm:
· Forward, High
· Forward, Low
· Reverse, High
· Reverse, Low
|
0-17.7 km/h (0-11.0 mph)
0-13.5 km/h (0-8.4 mph)
0-8.9 km/h (0-5.5 mph)
0-6.8 km/h (0-4.2 mph)
|
Mechanical Rear Wheel Drive
|
Full-time or on-demand
|
Differential Lock
|
Standard equipment
|
Final Drive
|
Planetary
|
Brakes
|
Wet disk
|
Steering
Type
|
Power, hydrostatic
|
Turns, Lock-To-Lock
|
1-3/4
|
Turning Radius
|
432 mm (17 in.)
|
Power Take Off
Type
|
Live independent
|
Speed @ Full Engine rpm
|
3200 rpm
|
Clutch
|
Hydraulic multi-disk with delay relief valve
|
Engage/Disengage
|
Electric solenoid
|
Implement Lift
Type
|
Hydraulic
|
Lift Cylinders, Two
|
63.5 x 101.6 mm (2.5 x 4 in.)
|
Electrical
Charging System
|
Automotive type
|
Alternator
|
40 amp
|
Battery Voltage
|
12
|
Hydraulic System
Type
|
Open center
|
Pump Type
|
Gear
|
Pump Capacity
|
0.35 1/s (5.6 gpm)
|
Weight Transfer
|
Optional
|
Noise Level-dB(A)
With Mower Off
|
86
|
With Mower On
|
92
|
Tires
Front
|
23 x 10.50-12, 4 PR turf
|
Rear
|
18 x 8.5-8, 4 PR turf
|
Dimensions
Height to Top of Steering Wheel
|
1332 mm (52.4 in.)
|
Height to Top of ROPS
|
1950 mm (76.8 in.)
|
Wheelbase
|
1375 mm (54.1 in.)
|
Ground Clearance
|
120 mm (4.7 in.)
|
Overall Length (with mower)
|
2931 mm (115 in.)
|
Overall Length (without mower)
|
2287 mm (90 in.)
|
Width (with mower)
|
2155 mm (85 in.)
|
Width (without mower)
|
1087 mm (42.8 in.)
|
Recommended Lubricants
Engine Oil
|
John Deere TORQ-GARD SUPREME PLUS-50TM
|
Transmission Oil
|
John Deere Low-Viscosity
HY-GARD® J20D
Transmission/Hydraulic Oil
|
MRWD Oil
|
John Deere GL-5 Gear Lubricant
API Class GL-5
Military Spec MIL-L-2105B or C or D
MIL-L-10324A oil below
-10°C (+14° F)
|

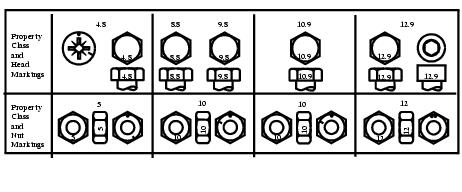

Metric Bolt and Cap Screw Torque Values
|
Class 4.8
|
Class 8.8 or 9.8
|
|
Lubricateda
|
Drya
|
Lubricateda
|
Drya
|
Size
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
M6
|
48
|
3.5
|
6
|
4.5
|
9
|
6.5
|
11
|
8.5
|
M8
|
12
|
8.5
|
15
|
11
|
22
|
16
|
28
|
20
|
M10
|
23
|
17
|
29
|
21
|
43
|
32
|
55
|
40
|
M12
|
40
|
29
|
50
|
37
|
75
|
55
|
95
|
70
|
M14
|
63
|
47
|
80
|
60
|
120
|
88
|
150
|
110
|
M16
|
100
|
73
|
125
|
92
|
190
|
140
|
240
|
175
|
M18
|
135
|
100
|
175
|
125
|
260
|
195
|
330
|
250
|
M20
|
190
|
140
|
240
|
180
|
375
|
275
|
475
|
350
|
M22
|
260
|
190
|
330
|
250
|
510
|
375
|
650
|
475
|
M24
|
330
|
250
|
425
|
310
|
650
|
475
|
825
|
600
|
M27
|
490
|
360
|
625
|
450
|
950
|
700
|
1200
|
875
|
M30
|
675
|
490
|
850
|
625
|
1300
|
950
|
1650
|
1200
|
M33
|
900
|
675
|
1150
|
850
|
1750
|
1300
|
2200
|
1650
|
M36
|
1150
|
850
|
1450
|
1075
|
2250
|
1650
|
2850
|
2100
|
Metric Bolt and Cap Screw Torque Values (Continued)
|
Class 10.9
|
Class 12.9
|
|
Lubricateda
|
Drya
|
Lubricateda
|
Drya
|
Size
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
M6
|
13
|
9.5
|
17
|
12
|
15
|
11.5
|
19
|
14.5
|
M8
|
32
|
24
|
40
|
30
|
37
|
28
|
47
|
35
|
M10
|
63
|
47
|
80
|
60
|
75
|
55
|
95
|
70
|
M12
|
110
|
80
|
140
|
105
|
130
|
95
|
165
|
120
|
M14
|
175
|
130
|
225
|
165
|
205
|
150
|
260
|
109
|
M16
|
275
|
200
|
350
|
225
|
320
|
240
|
400
|
300
|
M18
|
375
|
275
|
475
|
350
|
440
|
325
|
560
|
410
|
M20
|
530
|
400
|
675
|
500
|
625
|
460
|
800
|
580
|
M22
|
725
|
540
|
925
|
675
|
850
|
625
|
1075
|
800
|
M24
|
925
|
675
|
1150
|
850
|
1075
|
800
|
1350
|
1000
|
M27
|
1350
|
1000
|
1700
|
1250
|
1600
|
1150
|
2000
|
1500
|
M30
|
1850
|
1350
|
2300
|
1700
|
2150
|
1600
|
2700
|
2000
|
M33
|
2500
|
1850
|
3150
|
2350
|
2900
|
2150
|
3700
|
2750
|
M36
|
3200
|
2350
|
4050
|
3000
|
3750
|
2750
|
4750
|
3500
|
Metric Bolt and Cap Screw Torque Values (Continued)
DO NOT use these values if a different torque value or tightening procedure is given for a specific application. Torque values listed are for general use only and include a 10% variance. Check tightness of fasteners periodically. DO NOT use air powered wrenches.
Shear bolts are designed to fail under predetermined loads. Always replace shear bolts with identical grade.
Fasteners should be replaced with the same grade. Make sure fasteners threads are clean and that you properly start thread engagement. This will prevent them from failing when tightening.
When bolt and nut combination fasteners are used, torque values should be applied to the NUT instead of the bolt head.
Tighten toothed or serrated-type lock nuts to the full torque value.
a "Lubricated" means coated with a lubricant such as engine oil, or fasteners with phosphate and oil coatings. "Dry" means plain or zinc plated without any lubrication.

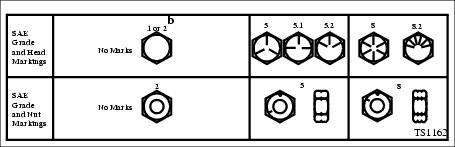

Unified Inch Bolt and Cap Screw Torque Values
|
Grade 1
|
Grade 2b
|
|
Lubricateda
|
Drya
|
Lubricateda
|
Drya
|
SIZE
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
1/4
|
3.7
|
2.8
|
4.7
|
3.5
|
6
|
4.5
|
7.5
|
5.5
|
5/16
|
7.7
|
5.5
|
10
|
7
|
12
|
9
|
15
|
11
|
3/8
|
14
|
10
|
17
|
13
|
22
|
16
|
27
|
20
|
7/16
|
22
|
16
|
28
|
20
|
35
|
26
|
44
|
32
|
1/2
|
33
|
25
|
42
|
31
|
53
|
39
|
67
|
50
|
9/16
|
48
|
36
|
60
|
45
|
75
|
56
|
95
|
70
|
5/8
|
67
|
50
|
85
|
62
|
105
|
78
|
135
|
100
|
3/4
|
120
|
87
|
150
|
110
|
190
|
140
|
240
|
175
|
7/8
|
190
|
140
|
240
|
175
|
190
|
140
|
240
|
175
|
1
|
290
|
210
|
360
|
270
|
290
|
210
|
360
|
270
|
1-1/8
|
470
|
300
|
510
|
375
|
470
|
300
|
510
|
375
|
1-1/4
|
570
|
425
|
725
|
530
|
570
|
425
|
725
|
530
|
1-3/8
|
750
|
550
|
950
|
700
|
750
|
550
|
950
|
700
|
1-1/2
|
1000
|
725
|
1250
|
925
|
990
|
725
|
1250
|
930
|

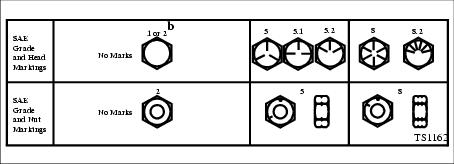

Unified Inch Bolt and Cap Screw Torque Values (Continued)
|
Grade 5, 5.1 or 5.2
|
Grade 8 or 8.2
|
|
Lubricateda
|
Drya
|
Lubricateda
|
Drya
|
SIZE
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
1/4
|
9.5
|
7
|
12
|
9
|
13.5
|
10
|
17
|
12.5
|
5/16
|
20
|
15
|
25
|
18
|
28
|
21
|
35
|
26
|
3/8
|
35
|
26
|
44
|
33
|
50
|
36
|
63
|
46
|
7/16
|
55
|
41
|
70
|
52
|
80
|
58
|
100
|
75
|
1/2
|
85
|
63
|
110
|
80
|
120
|
90
|
150
|
115
|
9/16
|
125
|
90
|
155
|
115
|
175
|
130
|
225
|
160
|
5/8
|
170
|
125
|
215
|
160
|
215
|
160
|
300
|
225
|
3/4
|
300
|
225
|
375
|
280
|
425
|
310
|
550
|
400
|
7/8
|
490
|
360
|
625
|
450
|
700
|
500
|
875
|
650
|
1
|
725
|
540
|
925
|
675
|
1050
|
750
|
1300
|
975
|
1-1/8
|
900
|
675
|
1150
|
850
|
1450
|
1075
|
1850
|
1350
|
1-1/4
|
1300
|
950
|
1650
|
1200
|
2050
|
1500
|
2600
|
1950
|
1-3/8
|
1700
|
1250
|
2150
|
1550
|
2700
|
2000
|
3400
|
2550
|
1-1/2
|
2250
|
1650
|
2850
|
2100
|
3600
|
2650
|
4550
|
3350
|
Unified Inch Bolt and Cap Screw Torque Values (Continued)
DO NOT use these values if a different torque value or tightening procedure is given for a specific application. Torque values listed are for general use only and include a 10% variance. Check tightness of fasteners periodically. DO NOT use air powered wrenches.
Shear bolts are designed to fail under predetermined loads. Always replace shear bolts with identical grade.
Fasteners should be replaced with the same grade. Make sure fastener threads are clean and that you properly start thread engagement. This will prevent them from failing when tightening.
Tighten toothed or serrated-type lock nuts to the full torque value.
a "Lubricated" means coated with a lubricant such as engine oil, or fasteners with phosphate and oil coatings. "Dry" means plain or zinc plated without any lubrication.
b "Grade 2" applies for hex cap screws (not hex bolts) up to 152 mm (6-in.) long. "Grade 1" applies for hex cap screws over 152 mm (6-in.) long, and for all other types of bolts and screws of any length.
|
