INSTALLING


Park Vehicle Safely

· Stop vehicle on a level surface, not on a slope

· Disengage PTO

· Engage the park brake.

· STOP the engine.

· Remove the key.

· Before you leave the operator's seat, wait for engine and all moving parts to STOP.

Avoid High Pressure Fluids


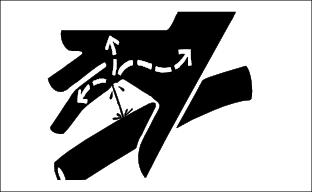

X9811

· Hydraulic hoses can fail due to physical damage, kinks, age, and exposure. Check hoses regularly. Replace damaged hoses.

· Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure.

· Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

· If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

Preparing The Tractor

c CAUTION: Avoid injury! · Ballasting is required for safe operation of your ATTACHMENT.

· When the ATTACHMENT is REMOVED you MUST also remove any weights that were added to the tractor

Your tractor should be equipped with 2 Tire weights for ballast. (See your John Deere dealer)

Tire Inflation

Front Tire ( 1 20 kPa(17 psi)

Rear Tire (80 kPa (12 psi)

Parking Tractor

47-Inch Snowblower

1. Park front of tractor close to rear of attachment.

2. Disengage the PTO.

3. LOCK the park brake.

4. STOP the engine.

5. Remove the key.

6. Before you leave the operator's seat, wait for the engine and all moving parts to stop.

NOTE: Do not angle snow blower. Driveline damage will occur.


M93526

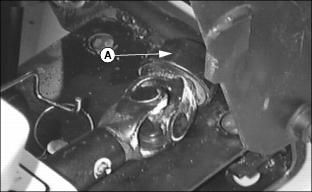

7. MAKE SURE lock-out pin assembly (A) is in the front hole of the hitch.

Aligning Snowblower with Front Hitch

IMPORTANT: Avoid damage! To prevent damage to driveline:

Put driveline on PTO rod support (before driving tractor forward


NOTE: Loop of bracket goes inside tractor yoke to control the end piece of driveline.


M93523

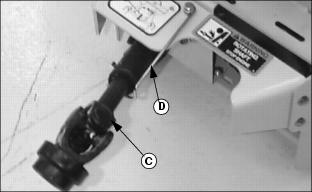

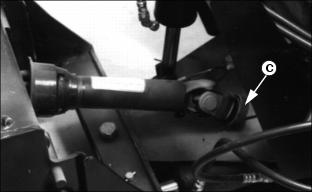

1. Put driveshaft (C) on PTO rod support (D). (Make sure support is installed on the inside of the left-hand side of driveshaft shield.)

NOTE: MAKE SURE lever (E) is in the unlocked position shown.


M55256

2. Lower front hitch with lift lever.

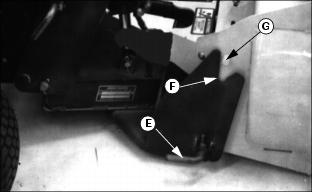

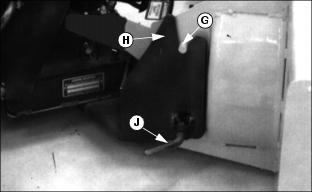

3. Move tractor/front mower forward slowly until slot (F) on front hitch lines up with pin (G) on snowblower.


M55257

4. Raise front hitch until groove on hitch bracket (H) LOCKS in place under pin (G).

5. Check to be sure that locking pins (J) are ENGAGED into bracket (H) and snowblower.

6. Lower snowblower to the ground.

Connecting Driveline


M93522

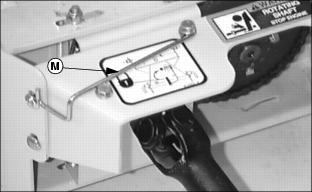

1. Remove driveline from PTO rod support (M).


M93532

2. Pull coupler (A) back on driveline to lock collar open.


M93261

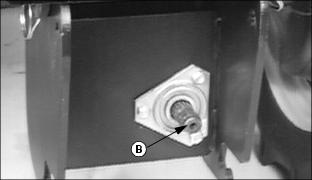

3. Install driveline to tractor PTO shaft (B).


M58995

4. Push driveline forward until coupler LOCKS in place.

Connecting Hydraulic Hoses

c CAUTION: Avoid injury! Escaping fluid under pressure can penetrate the skin causing serious injury.

Avoid the hazard by relieving ALL pressure before disconnecting the hydraulic lines.

MAKE SURE to tighten all connections before applying pressure

NOTE: If Hydraulic Angling Kit is installed, hoses from that should be to the outside of the bracket and strapped to the lift cylinder hose.


M93533

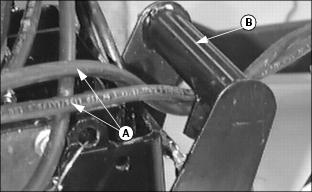

1. Put snowblower hydraulic chute hoses (A) to the inside of bracket (B) on front hitch as shown. (This helps to prevent damage to hoses and possible injury.


M93535

2. Put hoses through ring (D) on side of tractor.

3. f you have installed the "Angling Kit" on your tractor for use with the rotary broom or blade do the following:


M47451

· Remove hoses (E) from the top two couplers on tractor. (See decal on tractor platform for reference.)

· Put dust plug cap (F) on hose coupler.

NOTE: To connect hoses to couplers:

·Push and hold tractor coupler sleeve back.

·Put male-end hose fitting into coupler.

·Release sleeve.

·Pull hose to check that hose end is LOCKED in coupler.

· Put dust plug cap (G) through loop on coupler and connect in plug on snowblower hydraulic hose.

· Install each snowblower hydraulic hose (H) to tractor. Match color on hose with decal on tractor platform.

If you have not installed the "Angling Kit" on your tractor:

· Install each snowblower hydraulic hose (H) to tractor. Match color on hose with decal on tractor platform.

Checking Discharge Chute Rotation

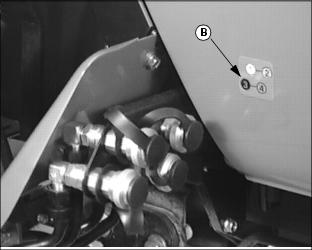

NOTE: Lable (B) is color coded with 1 is yellow, 2 is silver, 3 is black and 4 is green. Match caps to on each end of the hoses.

1. Start engine.


M88261

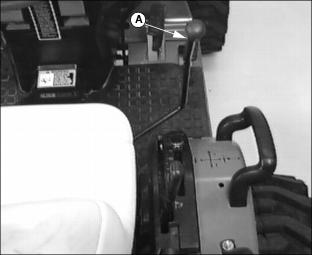

2. Use control lever (A) to turn chute in both directions:


M88279

· Hoses connected to couplers "1 & 2": Move SCV lever (A) to left to rotate attachment to the left or to right to rotate attachment to the right. There is also a color coded label (B) to assist you.


M88278

· Hoses connected to couplers "3 & 4": Move SCV lever (A) forward to lower attachment and rearward to raise attachment.

This SCV is also equipped with a "float" position to permit attachments such as blades or loaders to follow ground contours when lowered to operating position. Push lever (A) past valve detent to attain "float" position. Detent can be felt when moving lever forward.

NOTE: If chute does not move in the direction indicated, reverse hose location in couplers.

3. Chute should turn 90 degrees to each side. If it does not:

· STOP the engine.


M60473

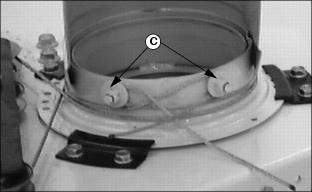

· Loosen nuts (C).

· Pull cable ends tighter.

· Tighten nuts.

IMPORTANT: Avoid damage! MAKE SURE chute is facing to the RIGHT (as viewed from tractor seat) before adjusting cables in order to get proper rotation of the chute.


Checking Hydraulic Hoses and Fluid Level

Remove transaxle hydraulic fluid dip stick. Check fluid level. If necessary, add fluid. (See your tractor operator's manual for correct procedure.

c CAUTION: Avoid injury! Escaping fluid under pressure can penetrate the skin causing serious injury.

·Avoid the hazard by relieving ALL pressure before checking hydraulic lines.

·MAKE SURE to check for fittings or connections that bind or rub against each other.

Check the hydraulics:

· Start engine.

· Move hydraulic control levers back and forth to check for leaks.

· MAKE SURE to check for fittings or connections that bind or rub against each other.

Installing Blade

NOTE: Front Hitch Kit and Angling Cylinder Kit must be installed before installing the Front Blade.

1. Place blade on a level surface

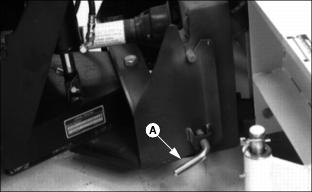

2. Release pins (A) from LOCKED position (if locked out).


M88261

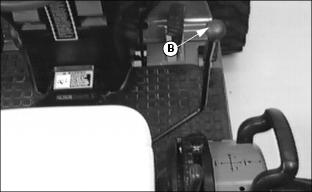

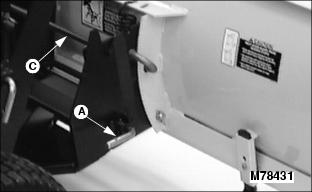

3. Use the tractors Selective Control Valve lever (B) to align the notches on both sides of hitch, with rod (C) on the Front Blade.

4. After the rod ends are in the hitch notches, slowly raise blade by using the tractors Selective Control Valve lever.

5. Make sure that the Front Hitch L-pins (A) have LOCKED in the hole on the front blade mounting

Cable Assembly

54-Inch Front Blade

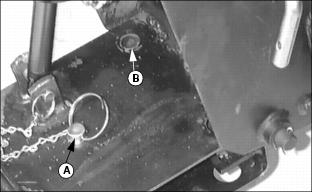

NOTE: Make Sure cable assembly (A) to the rear hole (B) on front hitch.


M93526

Move cable assembly (A) to the rear hole (B) on front hitch.

Install PTO Shaft In Wire Support

51-Inch Rotary Broom

M55390

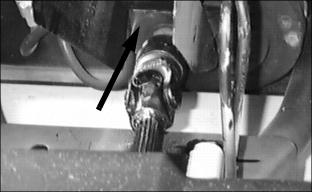

Install PTO shaft in wire support as shown.

Install Broom

1. Line up tractor hitch and broom frame.


M55391a

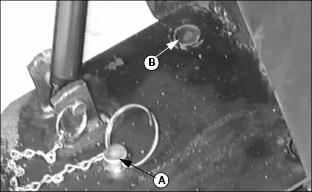

2. Pull and lock out J-pins (A).

3. Lower hitch.

4. Drive tractor forward until notches (B) on hitch are below pins (C) on frame.

Lock J-Pins

1. Release J-pins.


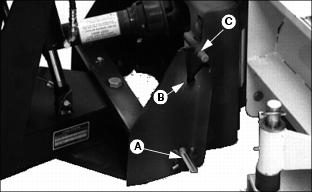

M55392

2. Raise hitch until J-pins (A) snap into holes on hitch.

3. STOP engine.

4. Lock park brake.

5. CHECK: J-pins must protrude all the way through the side of the hitch frame. If not, reverse pins. See Reversing J-Pins in this section.

Reversing J-Pins

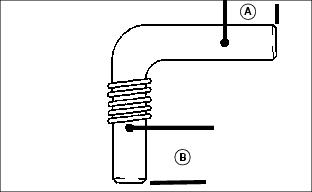

NOTE: The legs of the J-pin have different dimensions for the end to the rolled pin hole: 23 mm (A) and 27 mm (B


M79057

1. If end of J-pin does not protrude through the side the hitch, or if the broom detaches from the hitch when slid to the extreme right or left position, reverse the leg of the J-pin.


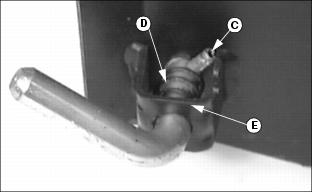

M79058

2. Drive out roll pin (C) from J-pin with punch. Save roll pin.

3. Pull J-pin from bracket and remove spring.

4. Reverse end of J-pin and install through bracket and spring

NOTE: Spring (D) must go between roll pin (C) and inside of bracket (E).

5. Install roll pin.

6. Slide broom to the extreme right and the extreme left to ensure the J-pins remain in the mounting holes.

Install Chain and Pin Assembly

NOTE: MAKE SURE assembly is in the REAR hole on the front hitch.


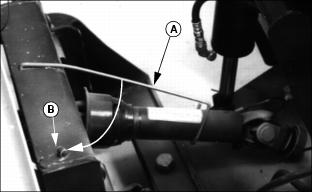

M93526

1. Move cable assembly or chain and pin assembly (A) to the rear hole (B) on front hitch.

Connect PTO Shaft

IMPORTANT: Avoid damage! Failure to remove wire support from under PTO shaft WILL cause DAMAGE to guard


1. Remove wire support from under PTO shaft.


M55393

2. Pivot wire support (A) to left and push it into clip (B).


M55393a

3. Pull and hold back collar (C).

4. Push end onto tractor driveshaft.

5. Release collar.

6. Push in until collar locks into shaft.

7. Push and pull end of driveline to make sure it is fastened.

8. Raise broom.


M55394

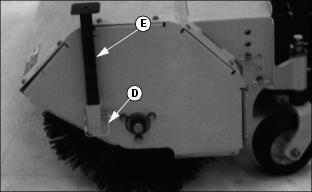

9. Remove spring clevis pin (D) and stand (E) from each side of broom.

10. Invert stands and install spring clevis pins prior to operating broom

IMPORTANT: Avoid damage! After broom is attached to front hitch, and before operating the broom, check to ensure J-pins hold broom securely to hitch.



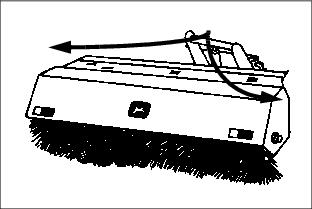

M60656B

11. Slide the broom to the extreme right and to the extreme left to ensure the J-pins remain in the mounting holes on the broom. If the broom detaches from the hitch, reverse the leg of the J-pin. See Reversing J-Pins in this section for instructions.
