Removing

Park Vehicle Safely

· Stop vehicle on a level surface, not on a slope.

· Disengage PTO

· Engage the park brake.

· STOP the engine.

· Remove the key.

· Before you leave the operator's seat, wait for engine and all moving parts to STOP.

Avoid High Pressure Fluids

MIF

· Hydraulic hoses can fail due to physical damage, kinks, age, and exposure. Check hoses regularly. Replace damaged hoses.

· Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure.

· Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

· If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

Park Front Mower and Snowblower

Park snowblower at storage area.

Lower snowblower to the ground. STOP engine.

Disengage Transmission F900 Series Tractors

1. Lift seat to service position.

M38659

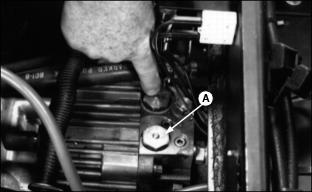

2. Push down two buttons (A) to disengage transmission. Buttons will come back up when you start engine.

3. Lower seat.

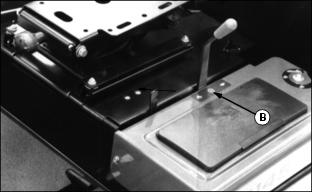

NOTE: On F1145 Tractors: Shift HI-LO Lever to Neutral (B).

M73575

4. Unlock park brake.

Relieve Hydraulic Pressure

M47361

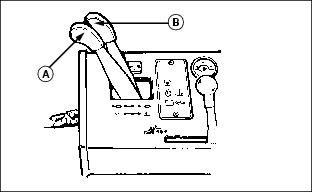

With engine off move both hydraulic levers (A) and (B) back and forth several times to relieve hydraulic pressure. Also open float control valve all the way.

Disconnect Hoses

M39128

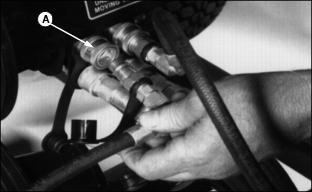

1. Push back sleeve (A).

2. Pull hose from coupler.

3. Release sleeve.

4. Install dust covers and plugs in hose ends.

Disconnect Driveline

c CAUTION: Avoid injury! Stay clear of rotating drivelines: Stop the engine and be sure the PTO driveline in stopped before getting near it.

M33786

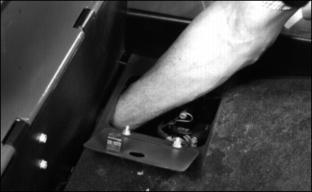

1. Open access door (F900 series only).

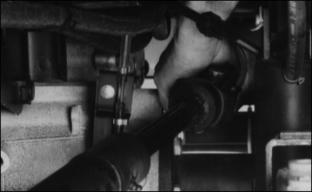

2. Reach through access door. Pull back coupler sleeve on driveline.

3. Pull coupler off driveshaft.

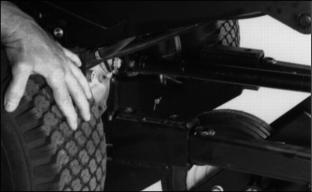

M35212

4. On the F1145: Reach from the front, to pull back coupler sleeve on driveline.

Remove Snowblower

NOTE: If you need to move Front Mower lift arms, push inner hydraulic lever forward into float position.

M74992

Picture Note: F1145 ONLY

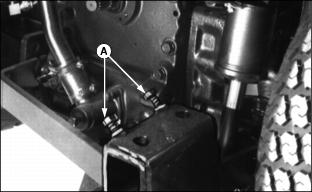

1. On F1145: Loosen the two corner bolts (A), (left-hand lift arm only).

M39126

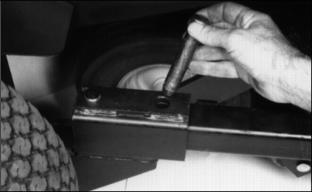

2. Remove four lift arm pins.

NOTE: Install pins back on Front Mower lift arms for storage.

M39125

3. Pull Front Mower away from snowblower.

c CAUTION: Avoid injury! : When the snowblower is removed, you MUST also remove any weights that were added to the Front Mower.

4. Remove any weights that were installed when preparing the Front Mower. (See Preparing the Vehicle section.)
