Safety
Understanding The Machine Safety Labels
The machine safety labels shown in this section are placed in important areas on your machine to draw attention to potential safety hazards.
On your machine safety labels, the words DANGER, WARNING, and CAUTION are used with this safety-alert symbol,. DANGER identifies the most serious hazards.
The operator's manual also explains any potential safety hazards whenever necessary in special safety messages that are identified with the word, CAUTION, and the safety-alert symbol,.
WARNING
To avoid injury from thrown objects, keep bystanders away. Shut off engine before opening hopper top. Keep chutes in place. Never allow riders on hopper top or on frame.
To avoid injury, ballast per operator's manual. Bag is subject to wear and deterioration, check bag frequently and replace, as necessary, with safety specifications.
CAUTION
ˇ Bag is subject to wear and deterioration.
ˇ Check bag frequently, replace when necessary.
ˇ Use John Deere bag or equivalent to comply with safety specifications.

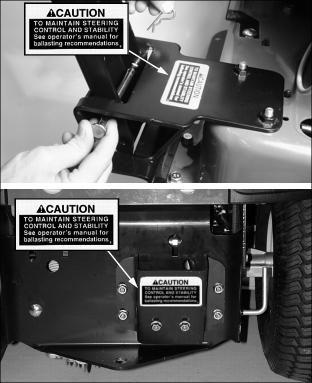

Safety Labels (GX, SX, RX, and SRX Series Riding Mowers and Spin-Steer Lawn Tractors Only)
Picture Note: Top photo - Riding Mowers, bottom photo - Spin-Steer Lawn Tractor.
CAUTION
ˇ To maintain steering control and stability, see Operator's Manual for ballasting recommendations.
Checking Mowing Area
ˇ Clear mowing area of objects that might be thrown. Keep people and pets out of mowing area.
ˇ Study mowing area. Set up a safe mowing pattern. Do not mow where traction or stability is doubtful.
ˇ Test drive area with mower lowered but not running. Slow down when you travel over rough ground.
Parking Safely
1. Stop machine on a level surface, not on a slope.
2. Disengage Power Take-Off (PTO).
3. Lower attachments to the ground.
7. Wait for engine and all moving parts to stop before you leave the operator's seat.
8. Close fuel shut-off valve, if your machine is equipped.
Bagging Safely
Read, understand and follow all instructions in this attachment manual, the vehicle operator's manual and safety signs on equipment before starting.
Use proper front ballast. Remove ballast when the material collection system is removed.
Hopper extends beyond vehicle. Be aware of surrounding objects when making short turns.
Do not operate material collection system unless entire grass catcher is fastened in place with hopper cover securely latched.
Do not let anyone ride on the mower or material collection system. Riders are subject to injury such as being struck by foreign objects or being thrown off. Riders may obstruct the operator's view and cause a collision.
Before you remove or install bags:
Before you back up:
ˇ Look behind hopper for children.
Operate safely on slopes:
ˇ Empty bags when they are half full.
ˇ Do not operate on steep slopes.
ˇ Avoid sudden starts and stops.
ˇ Avoid holes, rocks, and roots.
ˇ Mow up and down - not across slopes.
ˇ Do not park mower with material collection system on slopes.
Bag Maintenance:
ˇ Bag is subject to wear and deterioration.
ˇ Check bag frequently, replace when necessary.
ˇ Use John Deere bag or equivalent to comply with safety specifications.
ˇ Do not leave clippings in bags overnight.
Wear Appropriate Clothing
ˇ Wear close fitting clothing and safety equipment appropriate for the job.
ˇ Always wear safety goggles or safety glasses with side shields when operating the machine.
ˇ Wear a suitable protective device such as earplugs. Loud noise can cause impairment or loss of hearing.
ˇ Do not wear radio or music headphones. Safe service and operation requires your full attention.
Practice Safe Maintenance
ˇ Understand service procedure before doing work. Keep area clean and dry.
ˇ Never service or adjust the material collection system while the vehicle is moving. Keep safety devices in place and in working condition. Keep hardware tight.
ˇ Keep all parts in good condition and properly installed. Fix damage immediately. Replace worn or broken parts. Remove any buildup of debris.
ˇ Unauthorized modifications to the material collection system may impair its function and safety. Do not tamper with its original design.
