Service Lubrication
Grease

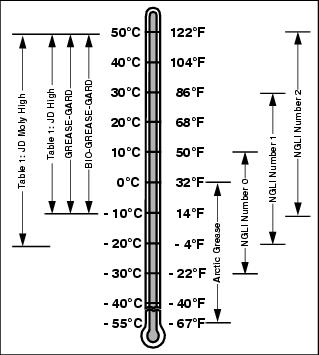

Use grease based on the expected air temperature range during the service interval.
The following greases are preferred:
ˇ John Deere Moly High Temperature EP Grease.
ˇ John Deere High Temperature EP Grease.
Other greases may be used are:
ˇ SAE Multipurpose EP Grease with 3 to 5 percent molybdenum disulfide.
ˇ Greases meeting Military Specification MIL-G-10924C may be used as arctic grease.
Grease Locations
c CAUTION: Avoid injury! DO NOT clean, lubricate, or adjust machine while it is running.
|
Clean grease fitting before lubricating.
Replace lost or broken fittings immediately.
NOTE: DO NOT over lubricate. Excess grease could fall from mower during operation.
Grease both ends of three rollers.
Lubricating cutting units (continued):
Grease both ends of three reels.
ˇ Left and right front lift arm pivots (D).
ˇ Left and right yoke pivots (E).
ˇ Left and right front lift arm frame pivots (F).
Grease Locations (Continued)
Lubricating cutting units (continued):
ˇ Center lift arm pivots (H) and (I).
Shield removed for illustration only. It is not necessary to remove shield to lubricate.
