Controls
Console Controls
A - Indicator Lights - Monitors machine functions
C - Steering Wheel Adjustment - Adjust steering wheel height
D - Park Brake Knob - Engages park brake
A - Throttle Lever - Controls engine speed
B - Mow/Transport Lever - Mow position, to mow/transport position, to transport machine
Foot/Platform Controls
A - Park Brake Pedal/Emergency Brake - Stops machine
B - Reverse Travel Pedal - Backs machine
C - Forward Travel Pedal - Starts machine forward travel

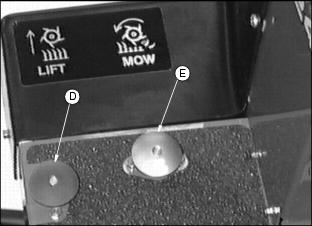

D - Lift Switch - Raises cutting units
E - Mow Switch - Lowers cutting units
Miscellaneous Controls
A - Seat Adjustment - Moves seat forward and backward
B - Fuel Select Valve - Selects fuel tank
