Service Cutting Units


c CAUTION: Avoid injury! Before you dismount to unplug or adjust cutting units: · STOP the engine. · LOCK the park brake. · DISENGAGE cutting units to stop reels. · Remove the key. · Wait for reels to STOP. · Keep hands, feet and clothing away from cutting units when engine is running. · DISENGAGE cutting units when you are not mowing.

Adjusting Cutting Units


c CAUTION: Avoid injury! Always wear safety glasses when making adjustment on machines.

NOTE: Adjustments may affect each other. It is important that adjustments be made in the following sequence.


IMPORTANT: Avoid damage! Reel must NOT contact bed knife during normal operation or overheating and damage to both reel and bed knife may occur.

Adjusting Height-Of-Cut


c CAUTION: Avoid injury! DO NOT service or adjust machine while engine is running.

NOTE: All cutting units must be set at the same height to obtain an even cut. Floating units will not provide a quality cut in grass over approximately 38 mm (1-1/2 in.) tall.


c CAUTION: Avoid injury! Reels are sharp and may cause injury to one's body, always wear gloves when manually rotating reel. Rotating one reel by hand may cause other reels to rotate. If a reel is rotated, be sure no other person is near the other units.

To raise rollers:

NOTE: If rollers are adjusted to a position so gauge bar cannot be installed, raise either the front or rear roller or both to allow installation of the gauge bar.

NOTE: Each notch in the adjuster rack equals 3.2 mm (1/8 in.). Set rear roller first and then front roller.

3. Turn top adjusting nut (C) clockwise on each end of cutting unit, alternating back and forth.

NOTE: Height-of-cut has two general height settings 9.5-41 mm (3/8-1-5/8 in.) and 38-89 mm (1-1/2-3-1/2 in.).

4. If adjustment is limited by slots at (A) then raise or lower each adjuster one notch as needed to every adjuster.

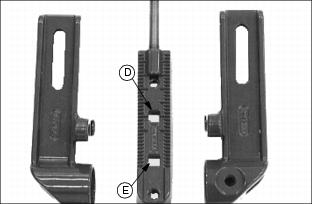

NOTE: Adjusters MUST be installed with carriage bolt in top hole (D) (stud end) for H.O.C. lower than 38 mm (1.5 in.), and the bottom hole (E) for H.O.C. greater than 38 mm (1.5 in.).

NOTE: Using a single-bolt adjusting gauge bar will not ensure parallelism between rollers and may result in uneven height-of-cut.

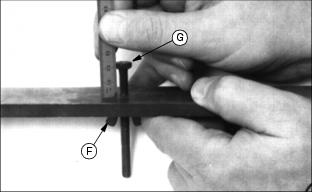

6. Loosen wing nut (F). Set height-of-cut by measuring from the top of the gauge to the bottom of the head of the bolt (G). Lock wing nut (F).

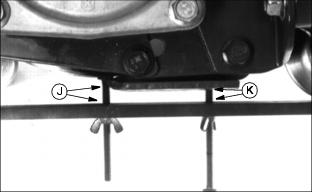

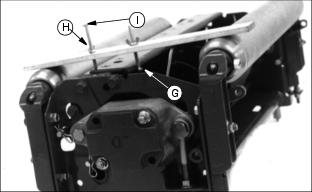

8. Loosen wing nut (H). Turn bolt (I) until gauge is parallel with bed knife. Measure distance between front (J) and rear (K) of the bottom of the bed knife to top of gauge. Distance should be the same.


IMPORTANT: Avoid damage! DO NOT turn nuts on front adjuster beyond where the roller just touches the gauge bar or the bar will bend.

NOTE: When adjusting rollers, move both ends of roller equally, alternating from end to end. This will keep the adjusters from binding

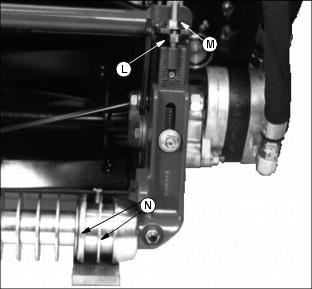

10. On grooved rollers, carefully turn bottom adjusting nut (L), after loosening top nut (M), until the first 2 ribs (N) of the machined portion of the roller just touches the gauge.

This is determined by turning the roller and listening for the scratching sound from roller on gauge bar.

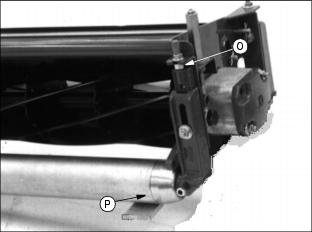

11. On solid rollers, carefully turn bottom adjusting nut (O) until the solid center piece of the roller (P) (not the end caps) just touches the gauge.

This is determined by turning the roller and listening for the scratching sound. On rollers with scrapers, a screwdriver can be inserted in slot of the scraper to lift it out of the way to better clean the scraper and roller. Hook the screwdriver handle under the reel housing to hold the scraper.

12. After setting front and rear rollers on one end, lock jam nuts and recheck all gauge settings. Readjust if necessary.

14. After setting second end, go back and check first settings to be sure they haven't moved. Readjust if necessary. Gauge can snugly be placed into position on either end when properly adjusted.

Adjusting Reel-To-Bed Knife Clearance

This adjustment, combined with the backlapping operation, will ensure a clean cut as well as reduce wear, take less power, and reduce down time.


c CAUTION: Avoid injury! Always wear gloves when manually rotating reel. Rotating one reel by hand may cause other reels to rotate. If a reel is rotated, be sure no other person is near the other units.

1. The cutting edge of the bed knife must be sharp and straight, and the relief angle should be 5 degrees (A) as shown.

Otherwise, remove bed knife and bed knife support and have them ground as a complete unit.

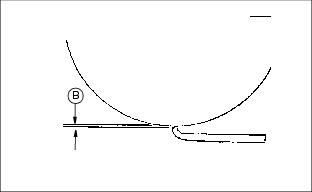

2. Use feeler gauges to set recommended reel-to-bed knife clearance (B) in the range for the grass to be cut.

Finer textured grasses, such as rye grass or bent grass require a close setting, but the setting should not be less than 0.05 mm (0.002 in.). They also require a sharp reel and bed knife to cut properly.

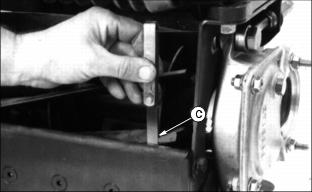

3. Place a 0.05 mm (0.002 in.) feeler gauge (C) between bed knife and reel. Check at both ends of reel and 2 areas near the center.

4. If adjustment is necessary, loosen jam nut (D) and adjusting nut (E) at both ends of the reel, equal amounts, preferably one flat at a time.

· Adjust reel until 0.05 mm (0.002 in.) is reached across the entire reel and bed knife.


IMPORTANT: Avoid damage! DO NOT allow the reel to interfere with the bed knife. Interference will cause heating and can damage reel and bed knife.

5. Tighten adjusting nuts (E) and jam nuts (D). Recheck to ensure reel has not moved. Readjust if necessary.

Adjust Lift Arm Bumper Stops

NOTE: Make this adjustment to prevent unnecessary movement of lift arms and cutting units during transport.

2. Pull Lift/Mow lever (A) back to raise lift arms and attached cutting units to a maximum raised position.

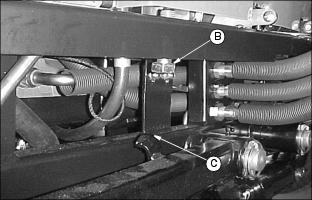

4. Locate adjustable lift arm bumper stop bolt (B) mounted vertically under each side of the bumper.

5. Adjust bolts individually up or down to allow 3 mm (.12 in.) maximum lift arm movement at each stop (C).

Backlapping Cutting Units


IMPORTANT: Avoid damage! The reel-to-bed knife clearance should be adjusted to approximately 0.076 mm (0.003 in.) at the ends.

Backlapping cutting units must be done on a routine basis to prolong reel life, prevent downtime, and provide sharp cutting action.


c CAUTION: Avoid injury! Avoid injury from rotating blades. Keep hands and feet away while machine is operating.

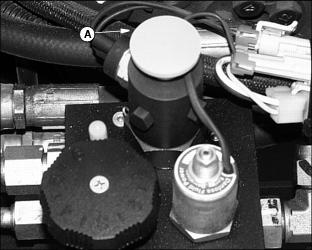

3. Lift the cover plate on the left side of the engine to expose the Backlapping valve.

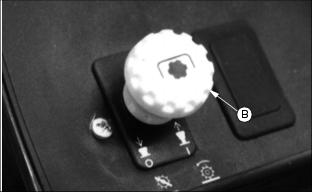

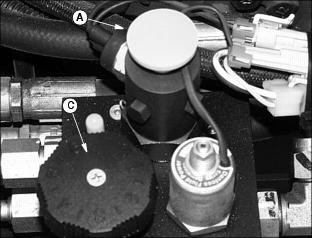

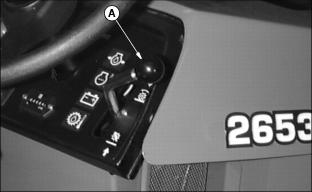

4. Put machine in backlapping mode by pulling up on the Forward/Reverse knob (A).

5. The PTO switch (B) can now be pulled up to ON while the operator is on or off the machine. The reels will turn backward.

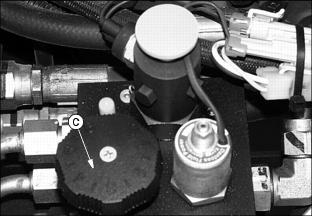

6. Rotate the flow control knob (C) to adjust the reel speed. Turn the knob clockwise to decrease the reel speed, to the left or counterclockwise to increase reel speed.

7. Adjust reel speed slowly enough so grinding compound will not be thrown off during backlapping.

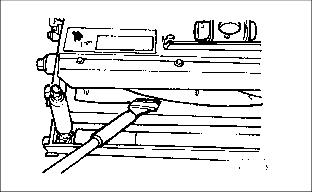

8. Using a long handled brush, carefully apply reel sharpening compound, uniformly, from one end of the reel to the other.

Repeat application in opposite direction. Allow unit to continue running backwards until reel is quiet.

9. Periodically disengage PTO switch and shut engine off to visually check blade appearance.

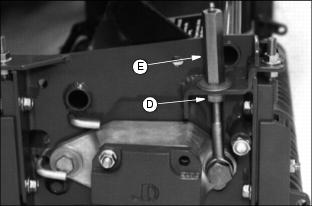

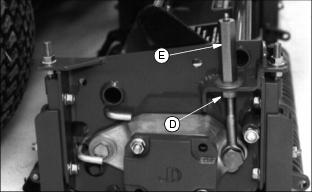

11. Adjust reel-to-bed knife clearance by loosening jam nut (D) and turning adjusting nut (E) and jam nut (D) to proper clearance on both ends.

Check for uniform clearance across entire bed knife. If clearance is not uniform, repeat steps 5 thru 11 until clearance is uniform across entire bed knife.


IMPORTANT: Avoid damage! Turn flow control knob fully counterclockwise when the backlapping operation is complete.

12. Disengage PTO switch and shut off engine. Turn flow control knob (C) fully counterclockwise.


IMPORTANT: Avoid damage! Do not operate units in the forward direction until reel sharpening compound is washed from the unit. Unless properly washed, the reels can be dulled by the compound.

Readjust Reel-To-Bed Knife Clearance

Grinding The Bed Knife

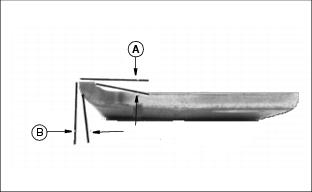

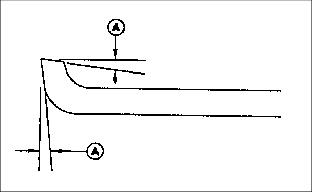

When grinding the bed knife, it is important to have a 5 degree relief angle on top surface (A) and front surface (B).

Replacing Bed Knife

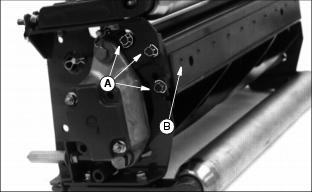

1. Remove six cap screws (A) attaching bed knife support to cutting unit housing, three on each end.

3. Remove and discard screws and nuts attaching bed knife to support. Discard bed knife.

5. Install end screws (B), tighten to secure knife to support, to properly position knife.

7. Torque nuts to 1/2 torque, approximately 26 N·m (19 lb-ft.), starting from the center and work out towards the ends.

8. Finish torquing to full torque,45 N·m (34 lb-ft), starting from the center and work out towards the ends. Minimum torque is 35 N·m (26 lb-ft).

9. Put bed knife support and bed knife in a suitable grinder and grind until knife is flat and uniformly ground across the top surface.

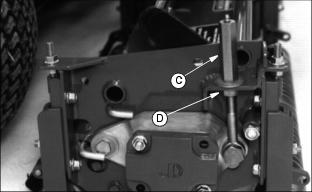

10. Raise reel, by turning the reel adjusting nut (C) clockwise and nut (D) counterclockwise, until the knife and support can be installed.

11. Reinstall the bed knife support assembly, and snug cap screws (A) on both ends.

12. Tap both ends of bed knife (E) away from reel with a brass hammer to remove any play in bed knife support. Tighten cap screws to 43 N·m (32 lb-ft.).

14. Adjust the reel-to-bed knife. See Adjusting Reel-To-Bed knife in this section.

16. Check the height-of-cut and adjust as necessary. See Adjusting Height-Of-Cut in this section.
