Safety Signs
Safety-Alert Symbol
Read and recognize safety information. Be alert to the potential for personal injury when you see this safety-alert symbol.
On your machine safety labels, the words DANGER, WARNING, and CAUTION are used with this safety-alert symbol. DANGER identifies the most serious hazards. In this manual, the word CAUTION and this symbol call attention to safety messages.
Machine Safety Labels

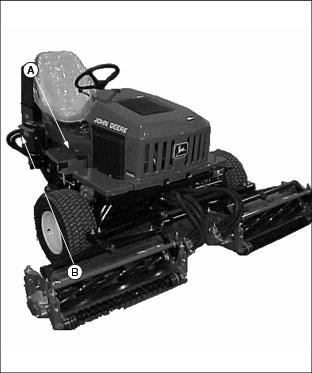

(A) Caution:
ˇ Know location and function of controls.
ˇ Keep safety devices (guards, switches) in place and working.
ˇ Keep people at a safe distance away.
ˇ Stop engine before placing hands or feet near power driven parts.
ˇ Stop engine - Set park brake - Remove key
(B) Warning:
Machine Safety Labels (Continued)

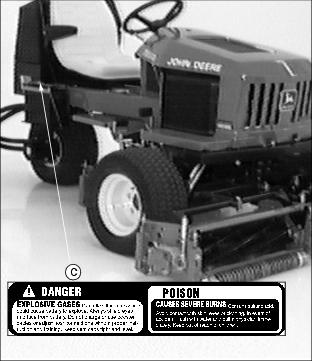

(C) Danger/Poison:
EXPLOSIVE GASES: Cigarettes, flames or sparks could cause battery to explode. Always shield eyes and face away battery. Do not charge or use booster cables or adjust post connection
CAUSES SEVERE BURNS: Contains sulfuric acid. Avoid contact with skin, eyes or clothing. In event of accident, flush with water and call a physician immediately. Keep out of reach of children.

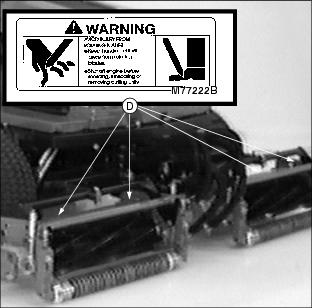

(D) Warning:
AVOID INJURY FROM ROTATING BLADES.
ˇ Keep hands and feet away from rotating blades.
ˇ Shutoff engine before servicing, lubricating or removing cutting units.
