Controls


Dash/Platform Controls


M87052

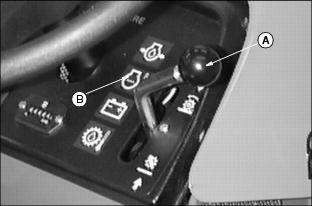

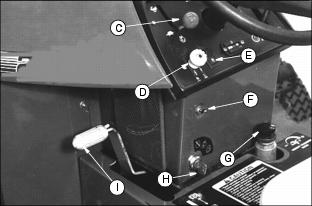

A - Mow/Lift Lever

B - Indicator Lights

C - Throttle Lever

D - PTO Switch

E - Glow Plug Switch

F - Light Switch

G - Weight Transfer Valve

H - Key

I - Park Brake Lever


M79100

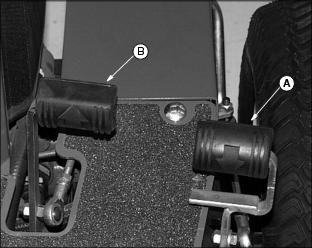

Foot Controls


M99479

A - Reverse Travel Pedal

B - Forward Travel Pedal

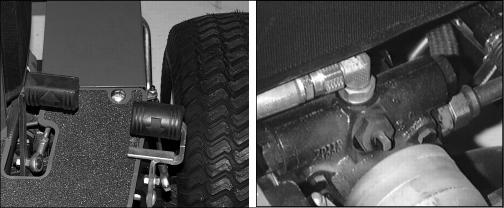

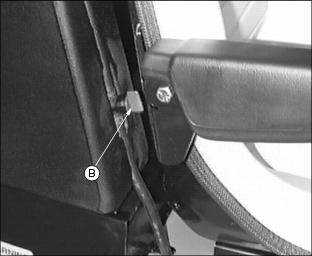

Miscellaneous Controls


M99479, M78108

A - Free-Wheeling Lever

B - Fuel Shut-Off Valve


M78088
