Specifications
Engine
Model
|
Yanmar
|
Engine Model Number:
· F925
· F935
|
3TNA72UJF-2
3TNA72UJF
|
Horsepower:
· F925
· F935
|
22@ 16.4 kW
22@ 16.4 kW
|
Cylinders
|
3
|
Cycle
|
4
|
Displacement
|
879 cm3 (53.6 cu.in.)
|
Bore/Stroke
|
72 mm (2.84 in.)
|
Compression Ratio
|
22.7 to 1
|
Speed (fast idle), No Load
|
3625 rpm
|
Speed (slow idle), No Load
|
1450 rpm
|
Lubrication
|
Full pressure to main and connecting rod bearings and governor
|
Oil Filter
|
Full flow, replaceable
|
Air Cleaner
|
Heavy duty, dry replaceable filter element with cyclone precleaner
|
Max. Torque (ft/lb)
|
37 at 2700 rpm
|
Crankshaft Alignment
|
Horizontal
|
Crankcase Capacity
|
3.1 L (3.3 U.S. qt.)
|
Governor
|
Mechanical, 8 percent
|
Cooling System Capacity
|
4.7 L (5 U.S. qt.)
|
Fuel System
Fuel
|
No.1 or No.2 diesel
|
Fuel Filter
|
Replaceable, paper element
|
Fuel Pump
|
Electric
|
Fuel Delivery
|
Indirect injection, precombustion chamber
|
Capacity:
· F925
· F935
|
20.8 L (5.5 U.S. gal.)
41.6 L (11 U.S. gal.)(two tanks)
|
Fuel tank location:
· F925
· F935
|
Right side
Right and left side
|
Fuel pump location
|
Frame
|
Drive Train
Transmission Type
|
Hydrostatic
|
Differential Lock
|
Standard
|
Travel Speeds:
· Forward
· Reverse
|
17.0 km/h (10.8 mph)
8.5 km/h (5.3 mph)
|
Gear Ratio
|
20.41:1
|
Capacity
|
4.4 L (4.6 U.S. qt.)
|
PTO Clutch
|
Electric
|
Tires
Drive
|
23 x 8.5 - 12, 4PR, Turf
|
Steering
|
16 x 6.5 - 8, 4PR, Rib
|
Steering
Type
|
Power, hydrostatic
|
Turns, Lock-to-Lock
|
2
|
Brakes
Type
|
Independent, sealed drum, automotive type
|
Size
|
178 mm (7 in.)
|
Location
|
Front drive tires
|
Power Take Off
Type
|
Electric coupler
|
Drive
|
1 in. shaft with two belts
|
Speed
|
2396 at 3450 engine rpm
|
Shaft Rotation
|
Counter clockwise when facing PTO shaft
|
Noise Level (dBa)
Without Mower
|
87.4; 87.5
|
With 60-Inch Mower
|
89.9; 90.4
|
With 72-Inch Mower
|
90.6; 90.9
|
Weight
Shipping (approx.):
· F925
· F935
|
641 kg (1443 lb.)
667 kg (1501 lb.)
|
Electrical
Charging System
|
Automotive type
|
Alternator
|
40 amp
|
Battery Voltage
|
12
|
Reserve Capacity
|
102 min @ 25 amp
|
Cold Cranking amp @0°F
|
491 amp
|
Dimensions:
Overall Height to Top of Steering Wheel
|
1.35 m (53.5 in.)
|
Overall Height to Top of Hood
|
0.97 m (38.5 in.)
|
Overall Height With ROPS
|
2.0 m (81 in.)
|
Overall Width
|
1.09 m (42.8 in.)
|
Overall Length:
· F925: With 60-Inch Mower
· F935: With 60-Inch Mower
· With 72 in. Mower
|
2.16 m (85.2 in)
2.87 m (112.9 in)
2.68 m (112.9 in.)
2.93 m (122.5 in.)
|
Ground Clearance
|
165 mm (6.5 in.)
|
Wheelbase
|
1.43 m (56.3 in.)
|
Dimensions (Continued)
Min. Turn Radius Without Brakes:
· L.H.
· R.H.
|
394 mm (17.5 in.)
737 mm (29 in.)
|
MIn. Turn Radius With Brakes:
· L.H. and R.H.
|
0
|
Recommended Lubricants
Engine Oil
|
John Deere TORQ-GARD SUPREME PLUS-50TM
|
Engine Coolant
|
Ethylene Glycol Base
|
Grease
|
John Deere MOLY HIGH TEMPERATURE EP GREASE
John Deere HIGH TEMPERATURE EP GREASE
John Deere GREASE GARDTM
|

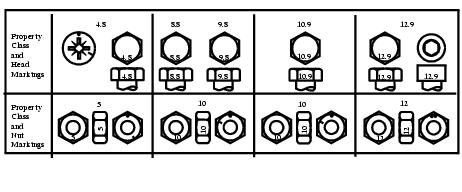

Metric Bolt and Cap Screw Torque Values
|
Class 4.8
|
Class 8.8 or 9.8
|
|
Lubricateda
|
Drya
|
Lubricateda
|
Drya
|
Size
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
M6
|
48
|
3.5
|
6
|
4.5
|
9
|
6.5
|
11
|
8.5
|
M8
|
12
|
8.5
|
15
|
11
|
22
|
16
|
28
|
20
|
M10
|
23
|
17
|
29
|
21
|
43
|
32
|
55
|
40
|
M12
|
40
|
29
|
50
|
37
|
75
|
55
|
95
|
70
|
M14
|
63
|
47
|
80
|
60
|
120
|
88
|
150
|
110
|
M16
|
100
|
73
|
125
|
92
|
190
|
140
|
240
|
175
|
M18
|
135
|
100
|
175
|
125
|
260
|
195
|
330
|
250
|
M20
|
190
|
140
|
240
|
180
|
375
|
275
|
475
|
350
|
M22
|
260
|
190
|
330
|
250
|
510
|
375
|
650
|
475
|
M24
|
330
|
250
|
425
|
310
|
650
|
475
|
825
|
600
|
M27
|
490
|
360
|
625
|
450
|
950
|
700
|
1200
|
875
|
M30
|
675
|
490
|
850
|
625
|
1300
|
950
|
1650
|
1200
|
M33
|
900
|
675
|
1150
|
850
|
1750
|
1300
|
2200
|
1650
|
M36
|
1150
|
850
|
1450
|
1075
|
2250
|
1650
|
2850
|
2100
|
Metric Bolt and Cap Screw Torque Values (Continued)
|
Class 10.9
|
Class 12.9
|
|
Lubricateda
|
Drya
|
Lubricateda
|
Drya
|
Size
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
M6
|
13
|
9.5
|
17
|
12
|
15
|
11.5
|
19
|
14.5
|
M8
|
32
|
24
|
40
|
30
|
37
|
28
|
47
|
35
|
M10
|
63
|
47
|
80
|
60
|
75
|
55
|
95
|
70
|
M12
|
110
|
80
|
140
|
105
|
130
|
95
|
165
|
120
|
M14
|
175
|
130
|
225
|
165
|
205
|
150
|
260
|
109
|
M16
|
275
|
200
|
350
|
225
|
320
|
240
|
400
|
300
|
M18
|
375
|
275
|
475
|
350
|
440
|
325
|
560
|
410
|
M20
|
530
|
400
|
675
|
500
|
625
|
460
|
800
|
580
|
M22
|
725
|
540
|
925
|
675
|
850
|
625
|
1075
|
800
|
M24
|
925
|
675
|
1150
|
850
|
1075
|
800
|
1350
|
1000
|
M27
|
1350
|
1000
|
1700
|
1250
|
1600
|
1150
|
2000
|
1500
|
M30
|
1850
|
1350
|
2300
|
1700
|
2150
|
1600
|
2700
|
2000
|
M33
|
2500
|
1850
|
3150
|
2350
|
2900
|
2150
|
3700
|
2750
|
M36
|
3200
|
2350
|
4050
|
3000
|
3750
|
2750
|
4750
|
3500
|
Metric Bolt and Cap Screw Torque Values (Continued)
DO NOT use these values if a different torque value or tightening procedure is given for a specific application. Torque values listed are for general use only. Check tightness of fasteners periodically.
Shear bolts are designed to fail under predetermined loads. Always replace shear bolts with identical grade.
Fasteners should be replaced with the same or higher grade. If higher grade fasteners are used, these should only be tightened to the strength of the original. Make sure fasteners threads are clean and that you properly start thread engagement. This will prevent them from failing when tightening.
Tighten plastic insert or crimped steel-type lock nuts to approximately 50 percent of the dry torque shown in the chart, applied to the nut, not to the bolt head. Tighten toothed or serrated-type lock nuts to the full torque value.
a "Lubricated" means coated with a lubricant such as engine oil, or fasteners with phosphate and oil coatings. "Dry" means plain or zinc plated without any lubrication.
b Grade 2 applies for hex cap screws (not hex bolts) up to 152 mm (6-in) long. Grade 1 applies for hex cap screws over 152 mm (6-in) long, and for all other types of bolts and screws of any length.

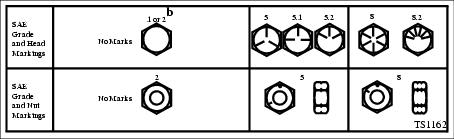

Unified Inch Bolt and Cap Screw Torque Values
|
Grade 1
|
Grade 2b
|
|
Lubricateda
|
Drya
|
Lubricateda
|
Drya
|
SIZE
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
1/4
|
3.7
|
2.8
|
4.7
|
3.5
|
6
|
4.5
|
7.5
|
5.5
|
5/16
|
7.7
|
5.5
|
10
|
7
|
12
|
9
|
15
|
11
|
3/8
|
14
|
10
|
17
|
13
|
22
|
16
|
27
|
20
|
7/16
|
22
|
16
|
28
|
20
|
35
|
26
|
44
|
32
|
1/2
|
33
|
25
|
42
|
31
|
53
|
39
|
67
|
50
|
9/16
|
48
|
36
|
60
|
45
|
75
|
56
|
95
|
70
|
5/8
|
67
|
50
|
85
|
62
|
105
|
78
|
135
|
100
|
3/4
|
120
|
87
|
150
|
110
|
190
|
140
|
240
|
175
|
7/8
|
190
|
140
|
240
|
175
|
190
|
140
|
240
|
175
|
1
|
290
|
210
|
360
|
270
|
290
|
210
|
360
|
270
|
1-1/8
|
470
|
300
|
510
|
375
|
470
|
300
|
510
|
375
|
1-1/4
|
570
|
425
|
725
|
530
|
570
|
425
|
725
|
530
|
1-3/8
|
750
|
550
|
950
|
700
|
750
|
550
|
950
|
700
|
1-1/2
|
1000
|
725
|
1250
|
925
|
990
|
725
|
1250
|
930
|

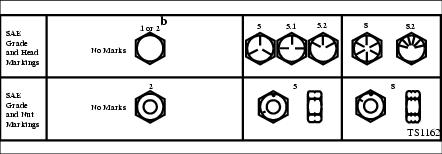

Unified Inch Bolt and Cap Screw Torque Values (Continued)
|
