Controls

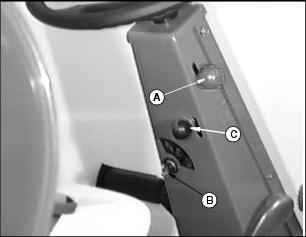

Dash Controls
A - Hydraulic Control Lever - Raises and Lowers Attachments
B - Throttle Lever - Controls Engine Speed
C - PTO Switch - Engages Attachments (Rocker switch--150001-160000) (Toggle switch--160,001- )
D - Weight Transfer Valve (F935) - Optional (F925)

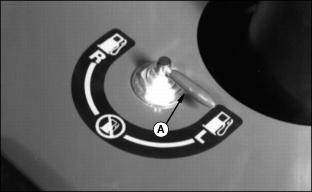

Miscellaneous Control
A - Fuel Tank Supply Lever (F935)

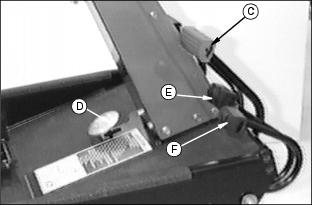

Foot Platform Controls
C - Park Brake Pedal - Engages Park Brake
D - Differential Lock Pedal - Push for improved traction
E - Forward Travel Pedal - Starts machine travel
F - Reverse Travel Pedal - Backs machine
