Service Electrical


Replacing Headlight Bulb and Housing

Remove Headlight Bulb


M98001

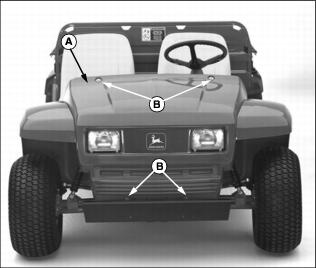

1. Remove vehicle hood (A).

ˇ Loosen and remove four screws (B).

ˇ Carefully lift hood up and off vehicle.


M98002

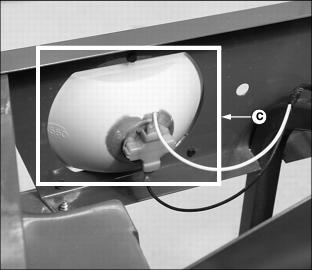

2. Locate headlight assembly (C).

3. Remove defective headlight bulb.


M98003

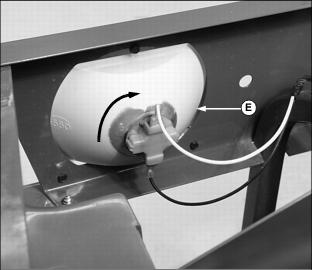

ˇ Rotate bulb socket (D) counterclockwise approximately 1/3 turn and remove from the headlight housing (E).

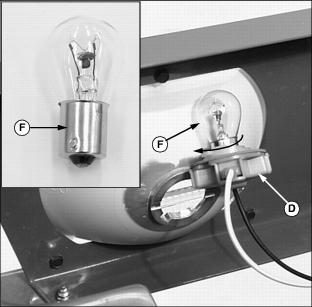

ˇ Push down top of bulb (F) and rotate counterclockwise to remove from socket.

Install Headlight Bulb

IMPORTANT: Avoid damage! This is not a standard replacement bulb. If bulb replacement is required, use only a 48 volt bulb. Using a 12 volt replacement bulb could cause a blown vehicle fuse.



M98004 M98003

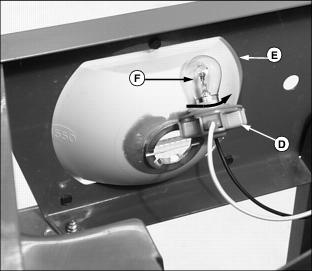

1. Install new headlight bulb (F) into bulb socket (D).

ˇ Push down top of bulb and rotate clockwise into a locked position.


M98002

2. Install bulb socket (D) into headlight housing (E).

ˇ Rotate bulb socket clockwise into a locked position.

IMPORTANT: Avoid damage! When installing the hood be sure there is clearance all around each headlight housing. Premature failure of headlight bulbs may occur if the hood should make contact with a headlight housing.



M98001

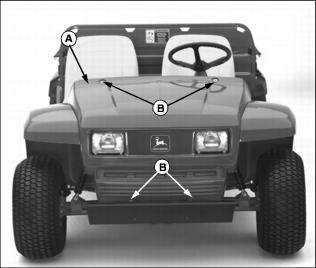

3. Install hood (A) onto vehicle.

ˇ Install and tighten top two screws (B).

ˇ Push hood upward. Allow equal clearance around each headlight housing.

ˇ Install and tighten two bottom screws (B).

Replace Headlight Housing

1. Remove vehicle hood.


M98002

2. Rotate bulb socket (D) counterclockwise approximately 1/3 turn and remove from headlight housing (E).

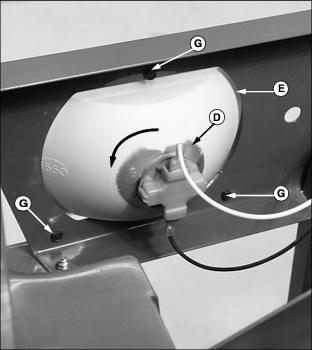

3. Remove screws (G) securing headlight housing to the utility vehicle frame.


M78462

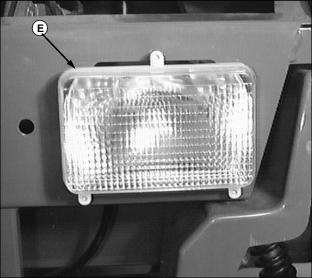

4. Install replacement headlight housing (E).

ˇ Attach housing to utility vehicle frame with screws (G).

5. Install bulb socket (D) into headlight housing.

ˇ Rotate bulb socket clockwise into a locked position.

6. Install hood onto utility vehicle.
