Specifications
Batteries
Total Voltage (Eight Batteries) 48 VDC
Approximate Weight 28.1 kg (62 lbs)
Total Voltage (Eight Batteries) 48 VDC
Approximate Weight 32.2 kg (71 lbs)
Torque Specifications
Battery Hold Downs 7-9 N·m (60-80 lb-in.)
Battery Terminal Connections 14-16 N·m (124-142 lb-in.)
Wheel Hardware-Front Cap Screws 90 N·m (66 lb-ft.)
Wheel Hardware-Rear Drive Wheel Nuts 88 N·m (65 lb-ft)
Motor
Controller
Electrical
Headlights 48V 27 watt Incandescent (Marked SP8)
Travel Speeds
Typical Travel Speed-Forward 25 km/h (15.5 mph)
Typical Travel Speed-Reverse 14.5 km/h (9 mph)
Steering and Brakes
Brakes-Type Dual Rear Wheel Mechanical Drum, Auto Adjusting
Steering-Type Rack and Pinion Ackerman-Type
Suspension-Front Independent, Spring Over Shock Single A-Arm Design
Park Brake Three Position, Hand Operated
Dimensions-Vehicle
Overall Width 152.5 cm (60 in.)
Overall Length 266.5 cm (104.9 in.)
Overall Height 113 cm (44.5 in.)
Front Tread Centers 127 cm (50 in.)
Rear Tread Centers 122 cm (48 in.)
Vehicle Weight with T-105 Batteries 634 kg (1395 lb.)
Ground Clearance
Under Transaxle 196 mm (7.7 in.)
Under Foot Platform 215 mm (8.5 in.)
Turning Clearance Circle 6.7 m (22 ft.)
Dimensions-Cargo Box
Overall Width, Inside 124.5 cm (49 in.)
Overall Length, Inside 111.8 cm (44 in.)
Overall Depth, Inside 28.5 cm (9 in.)
Miscellaneous-Cargo Box
Capacities
Seat Type Professional High Back
Payload (Total)1 408 kg (900 lb)
Cargo Box-Volume .317 Cubic Meters (11.2 cu ft.)
Cargo Box-Weight 227 kg (500 lb)
Charger
Type Ferro-Resonant Transformer
Charge Type Automatic Taper Charge and Shut Off
Input Amperage 12 amps (15 amp breaker maximum)
AC Power Cord-Plug 125 V 15 amp (NEMA 5-15p)
AC Power Cord-Length 2.4 m (94 in.)
DC Power Cord Length 2.8 m (110 in.)
Tires
Front 22.5 x 10.00-8 2PR Hi-Flotation
Rear 25 x 12.00-9 2PR Hi-Flotation
Recommended Lubricants
Grease John Deere NON-CLAY HIGH TEMPERATURE EP GREASE®-JDM J13E4, NLGI Grade 2
(Specifications and design subject to change without notice.)

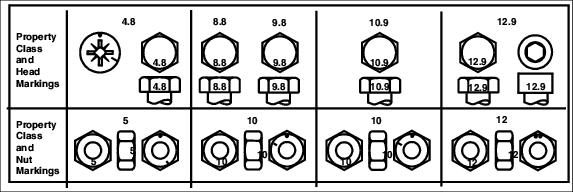

Metric Bolt and Cap Screw Torque Values
DO NOT use these values if a different torque value or tightening procedure is given for a specific application. Torque values listed are for general use only and include a 10% variance. Check tightness of fasteners periodically. DO NOT use air powered wrenches.
Shear bolts are designed to fail under predetermined loads. Always replace shear bolts with identical grade.
Fasteners should be replaced with the same grade. Make sure fasteners threads are clean and that you properly start thread engagement. This will prevent them from failing when tightening.
When bolt and nut combination fasteners are used, torque values should be applied to the NUT instead of the bolt head.
Tighten toothed or serrated-type lock nuts to the full torque value.

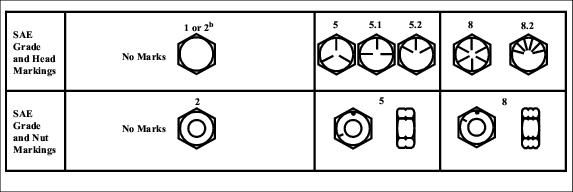

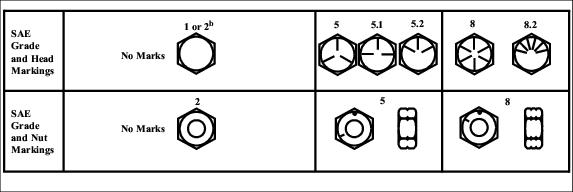

Unified Inch Bolt and Cap Screw Torque Values
DO NOT use these values if a different torque value or tightening procedure is given for a specific application. Torque values listed are for general use only and include a 10% variance. Check tightness of fasteners periodically. DO NOT use air powered wrenches.
Shear bolts are designed to fail under predetermined loads. Always replace shear bolts with identical grade.
Fasteners should be replaced with the same grade. Make sure fasteners threads are clean and that you properly start thread engagement. This will prevent them from failing when tightening.
Tighten toothed or serrated-type lock nuts to the full torque value.
b"Grade 2" applies for hex cap screws (not hex bolts) up to 152 mm (6-in.) long. "Grade 1" applies for hex cap screws over 152 mm (6-in.) long, and for all other types of bolts and screws of any length.
