Service Miscellaneous

Checking Tire Pressure

MIF

c CAUTION: Avoid injury! Explosive separation of a tire and rim parts can cause serious injury or death: · DO NOT attempt to mount a tire without the proper equipment and experience to perform the job. · Always maintain the correct tire pressure. DO NOT inflate the tires above the recommended pressure. Never weld or heat a wheel and tire assembly. The heat can cause an increase in air pressure resulting in a tire explosion. Welding can structurally weaken or deform the wheel. · When inflating tires, use a clip-on chuck and extension hose long enough to allow you to stand to one side and NOT in front of or over the tire assembly. · Check tires for low pressure, cuts, bubbles, damaged rims or missing lug bolts and nuts.

1. Check tires for damage.

2. Check tire pressure with an accurate gauge.

M93124

3. Add air, if necessary:

Fuel

MIF

c CAUTION: Avoid injury! Handle fuel with care, it is highly flammable and can cause serious injury or death: · DO NOT refuel machine while you smoke, when machine is near an open flame or sparks, or when engine is running. STOP engine. · Fill fuel tank outdoors. · Prevent fires: clean oil, grease and dirt from machine. Clean up spilled fuel immediately. · Do not store machine with fuel in tank in a building where fumes may reach an open flame or spark. · To prevent fire and explosion caused by static electric discharge, while you fill tank, use a non-metal fuel container. If you use a funnel, MAKE SURE IT IS PLASTIC. Avoid using a funnel which has a metal screen or filter. · Use only clean approved containers and funnels. · Store oil and fuel in an area protected from dust, moisture and other contamination. · DO NOT use METHANOL gasolines. METHANOL is harmful to the environment and to your health.

· Use only clean, fresh, unleaded regular grade gasoline.

· Remove any trash from top of fuel tank drain area.

· Use summer blended fuel for warm weather operation and winter blended fuel for cold weather.

· Never use fuel that is stale or has been stored for a long period of time:

Warm Weather - Maximum 60 days.

Cold Weather - Maximum of 90 days.

· Fill fuel tank at the end of each day's operation. This helps to keep condensation out of fuel tank.

Oxygenated Fuel

Oxygenates (either ethanol or MTBE) are added to the gasoline. If you use the oxygenated fuel be sure it is unleaded and meets the minimum octane rating requirement.

The following are the EPA approved percentages of fuel oxygenates:

Filling Fuel Tank

NOTE: Fuel tank capacity is 17.0 L (4.5 gal).

1. STOP engine. If engine is hot let it cool several minutes before you add fuel.

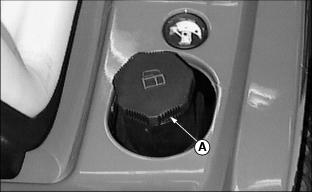

2. Remove fuel tank cap (A).

M93116

3. Fill tank only to bottom of filler neck.

4. Install fuel tank cap.

Care for Plastic and Painted Surfaces

PLASTIC SURFACES

The plastic parts on your machine are made of a blend of polycarbonate and polyester materials. These parts are extremely strong and durable. Unlike painted metal, the plastic parts will never dent or rust. If the plastic parts get scratched, the color will remain the same since the color goes through the entire part.

NOTE: Follow cleaning procedure every time plastic surfaces are cleaned. DO NOT wipe dry plastic surface with hand or towel.

Correct Cleaning Care:

1. Before washing, rinse hood and entire machine with clean water to remove dirt and dust that may scratch the surface.

2. Wash plastic surface with clean water and a mild liquid automotive washing soap. Use a SOFT, CLEAN cloth (bath towel or automotive mitt) when washing.

3. Dry thoroughly with a SOFT, CLEAN cloth (diaper or bath towel).

4. Wax the surface with a liquid automotive wax. Use products that specifically say "contains no abrasives".

5. Remove applied wax by hand using a clean, soft cloth.

Avoid Damage:

· "Dry wiping" or wiping the plastic surface when it is dry is a major source of minor surface scratches.

· DO NOT wipe hood or other plastic parts unless wetted first.

· DO NOT apply wax unless plastic surface has been thoroughly cleaned first.

· DO NOT use abrasive materials, such as polishing compounds, to clean or to wax plastic surface.

· DO NOT wax plastic surfaces without drying first. Hard-to-remove water spots will be left.

· DO NOT use solvents or commercial cleaners.

· DO NOT use power buffers to remove wax.

· DO NOT spray insect repellent near machine. Insect repellent spray may damage plastic or painted surfaces.

· Be careful not to spill fuel on any plastic or painted surfaces. Wipe up fuel immediately.

Repair

· Your John Deere dealer has the professional materials needed to properly remove surface scratches from any plastic surfaces.

· DO NOT attempt to paint over marks or scratches in plastic parts.

· DO NOT use polishing compounds to attempt to remove scratches.

PAINTED METAL SURFACES

Follow automotive practices to care for your machine painted metal surfaces. Use a high-quality automotive wax regularly to maintain the factory look of your tractor's painted surfaces.

1. Clean area thoroughly to be repaired.

2. Use automotive polishing compound to remove surface scratches.

· DO NOT use rubbing compound to avoid removing paint.

3. Apply wax to entire surface.

1. Clean area to be repaired with rubbing alcohol or mineral spirits.

2. Use paint stick with factory-matched colors available from your John Deere dealer to fill scratches. Follow directions for use and for drying.

· Apply sparingly to scratch without getting on surrounding painted surface. Fill in scratch to level of surrounding painted area.

· Allow to dry 48 hours in warm weather and up to 30 days in colder temperatures.

3. Use automotive polishing compound to smooth out surface. Do not use power buffer.

4. Apply wax to surface.
