Controls


Operator Station Controls


M92159

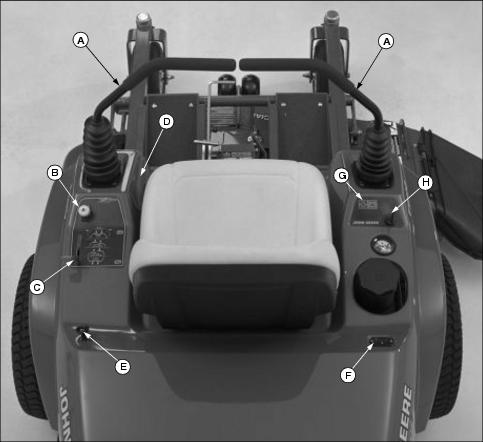

A - Control Levers

B - PTO Switch

C - Throttle Lever

D - Park Brake Lever

E - Choke

F - Hourmeter

G - Indicator Lights

H - Key Switch

Miscellaneous Controls


M93944


M93123


M93151

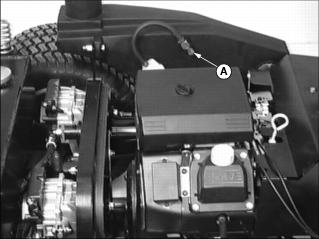

A - Fuel Shut-Off Valve

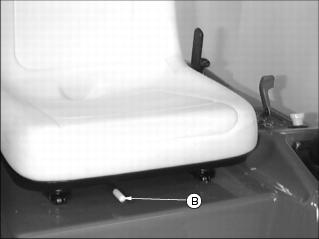

B - Seat Adjustment Lever

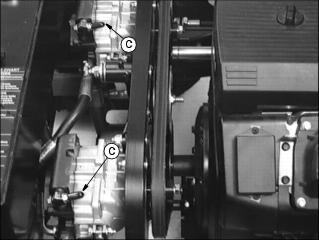

C - Free-Wheeling Levers
