Service Lubrication
Grease

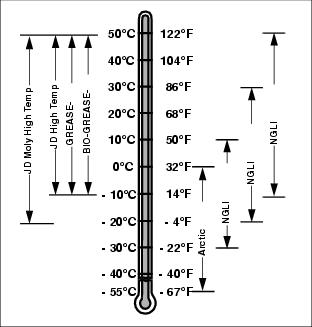

Use grease based on the expected air temperature range during the service interval.
The following greases are preferred:
ˇ John Deere Moly High Temperature EP Grease.
ˇ John Deere High Temperature EP Grease.
Other greases may be used are:
ˇ SAE Multipurpose EP Grease with 3 to 5 percent molybdenum disulfide.
ˇ Greases meeting Military Specification MIL-G-10924C may be used as arctic grease.

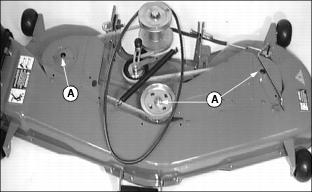

Lubricating Mower Spindles
Lubricate three mower spindles grease fittings (A) with multipurpose grease or an equivalent.

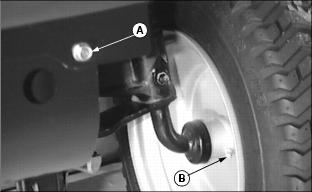

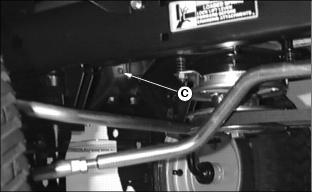

Lubricating Front Wheel Spindles, Wheel Bearings and Front Axle Pivot
Lubricate front wheel spindles (A), wheel bearings (B), one on each side of tractor, and front axle pivot (C) with one or two shots of multipurpose grease or an equivalent.
